52 HARDI
®
COMMANDER OPERATOR’S MANUAL
It is recommended to switch off the rear traffic lights of
the tractor in order to save power consumption and to
avoid reflection.
Power supply is via the 7-pin socket. Please see the
“Installation Instruction”
(p.63).
Selector switch
When mounting the selector switch A, it is simply
“clicked” into the cutout in the frame below the MANI-
FOLD valves.
The switch has three positions:
1. Boom lights ON
2. Lights OFF (neutral)
3. Work light ON
Connection box
The connection box is mounted underneath the plat-
form floor.
1. Lift the platform floor
2. Open the connection box and mount the flat part of
the box (A) by 4 machine screws to the 4 pre-drilled
holes in the platform base.

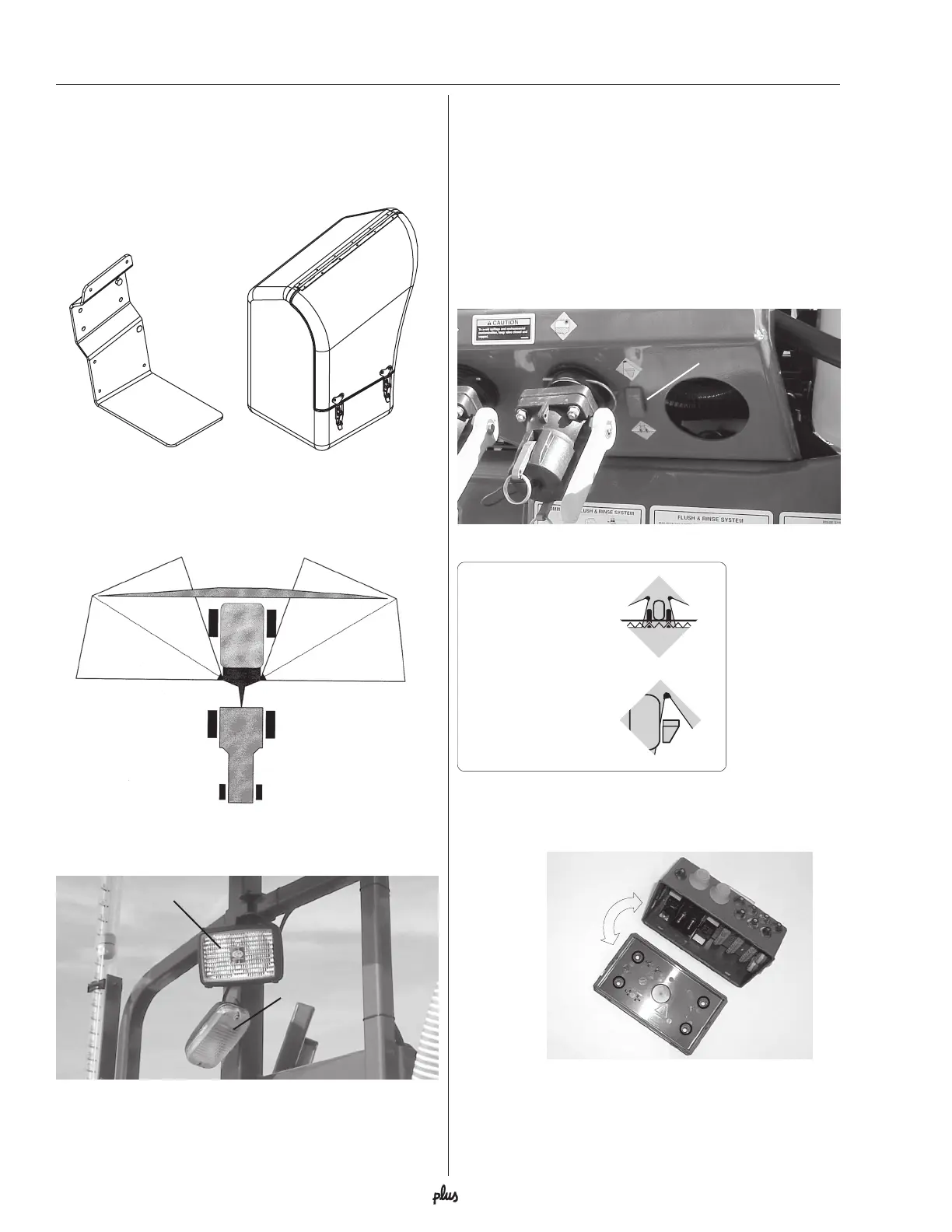

Small Left Hand Storage Locker (optional)
The locker can be mounted next to the HARDI
®
FILLER. It is for the purpose of storing pesticide con-
tainers in use, nozzles, calibration- and compound
equipment. The locker is fitted to a mounting, which is
bolted to the frame of the trailer.
A drain in the bottom makes it possible to clean and
drain the locker in case of leak by pesticide containers.
Boom and Work Lights (optional)
The 2 boom light lamps A are mounted to the railing of
the platform (one at each side) and are positioned to
illuminate both boom wings.
The work light lamp B is also mounted to the railing of
the platform above the MANIFOLD valves. This lamp is
positioned to illuminate the HARDI
®
FILLER and the
MANIFOLD system.
Equipment and Accessories
Boom light
(A)
Work light
(B)
A
A
