61HARDI
®
COMMANDER OPERATOR’S MANUAL

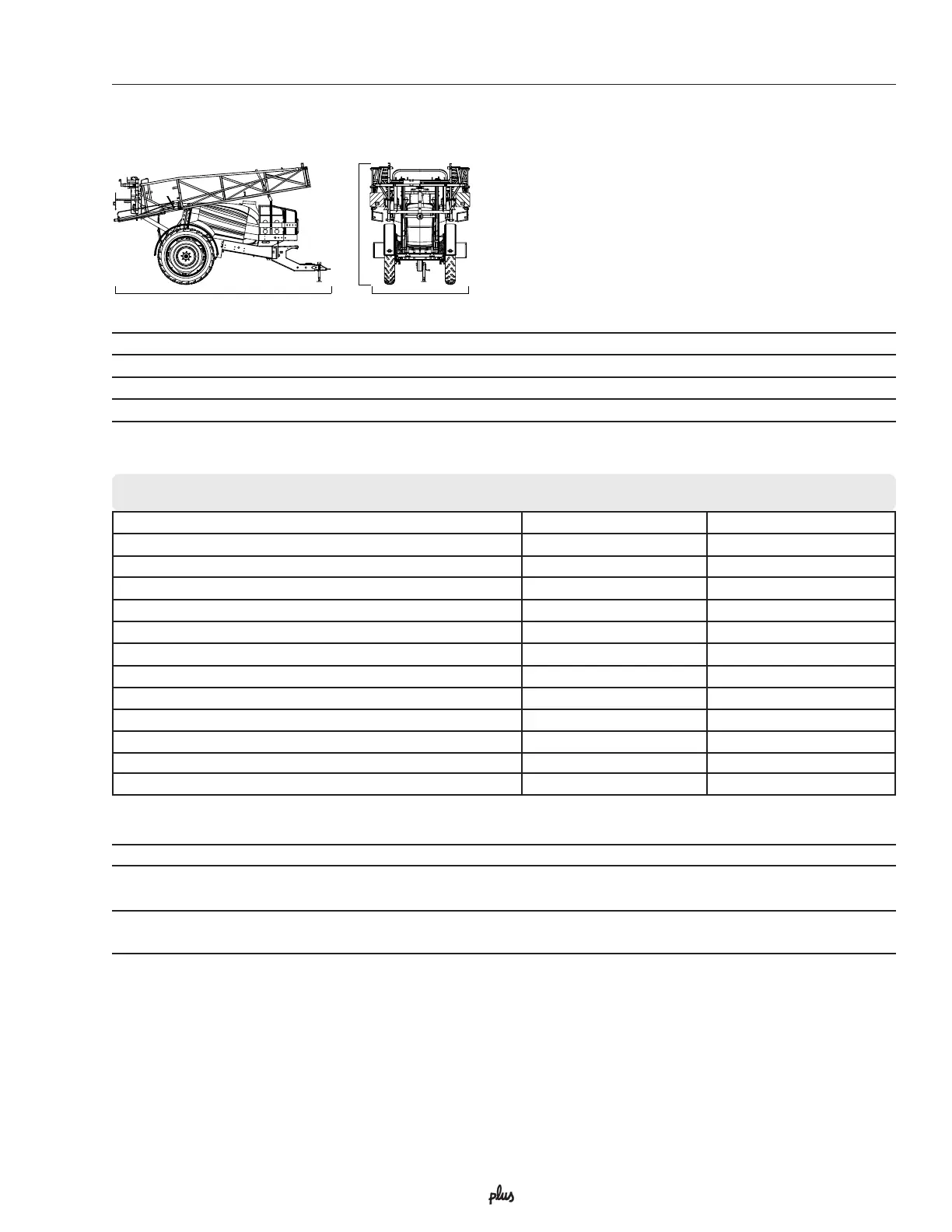

Technical specifications
Overall measurements:
Technical specifications
A
B
C
A B C
Tank size Boom model Boom size (Total Length) (Total Width) (Total Height)
750 Gallon (2840 Liter) Eagle™ 60’ (18m) 228” (5790 mm) 10 ft. (3040 mm) 125” (3180 mm)
1200 Gallon (4540 Liter) Eagle™ 90’ (28m) 335” (8510 mm) 11.5 ft. (3500 mm) 148” (3760 mm)
1200 Gallon (4540 Liter) Force™ 120’ (36m) 285” (7240 mm) 11.5 ft. (3500 mm) 153” (3880 mm)
Available pump models: 1302-540 363-540 363-1000 463-540 463-540 HC 463-1000 463-1000 HC
Max. Pump capacity 30 GPM 49 GPM 49 GPM 69 GPM 85 GPM 69 GPM 77 GPM
(114 l/min) (182 l/min) (182 l/min) (262 l/min) (322 l/min) (262 l/min) (292 l/min)
Max. working pressure: 0-220 PSI 0-220 PSI 0-220 PSI 0-220 PSI 0-220 PSI 0-220 PSI 0-220 PSI
(0-15 bar) (0-15 bar) (0-15 bar) (0-15 bar) (0-15 bar) (0-15 bar) (0-15 bar)
Note: 463 High Capacity (HC) diaphragm pump fluid systems only for 80’- 120’ (24m- 36m) booms.
Note: All weight measurements are approximate values with booms in transport position, flush tank, chemical
inductor and foam marker (for suspended axle systems, add approximately 550-660 lbs (250-300 kg)).
N/A = Not Available
Main tank capacity 750 Gallon (2840 Liter) 1200 Gallon (4540 Liter)
Flush tank capacity 70 Gallon (280 Liter) 110 Gallon (420 Liter)
Foam marker tank capacity 10, 15, 20 Gallon 10, 15, 20 Gallon
(40, 60, 80 Liter) (40, 60, 80 Liter)
Axle and under frame clearance: 29” (750mm) 27”-30” (700-760mm)
Weight:
60’ (18m) Eagle™ boom - Total weight empty 4900 lbs (2225 kg) N/A
60’ (18m) Eagle™ boom - Tongue weight empty 930 lbs (423 kg) N/A
90’ (28m) Eagle™ boom - Total weight empty N/A 7303 lbs (3312 kg)
90’ (28m) Eagle™ boom - Tongue weight empty N/A 1388 lbs (630 kg)
120’ (36m) Force™ boom - Total weight empty N/A 8509 lbs (3863 kg)
120’ (36m) Force™ boom - Tongue weight empty N/A 1872 lbs (850 kg)
SPECIFICATIONS 750 1200
