Hardi HC 8600 User Manual

4 - System setup
34

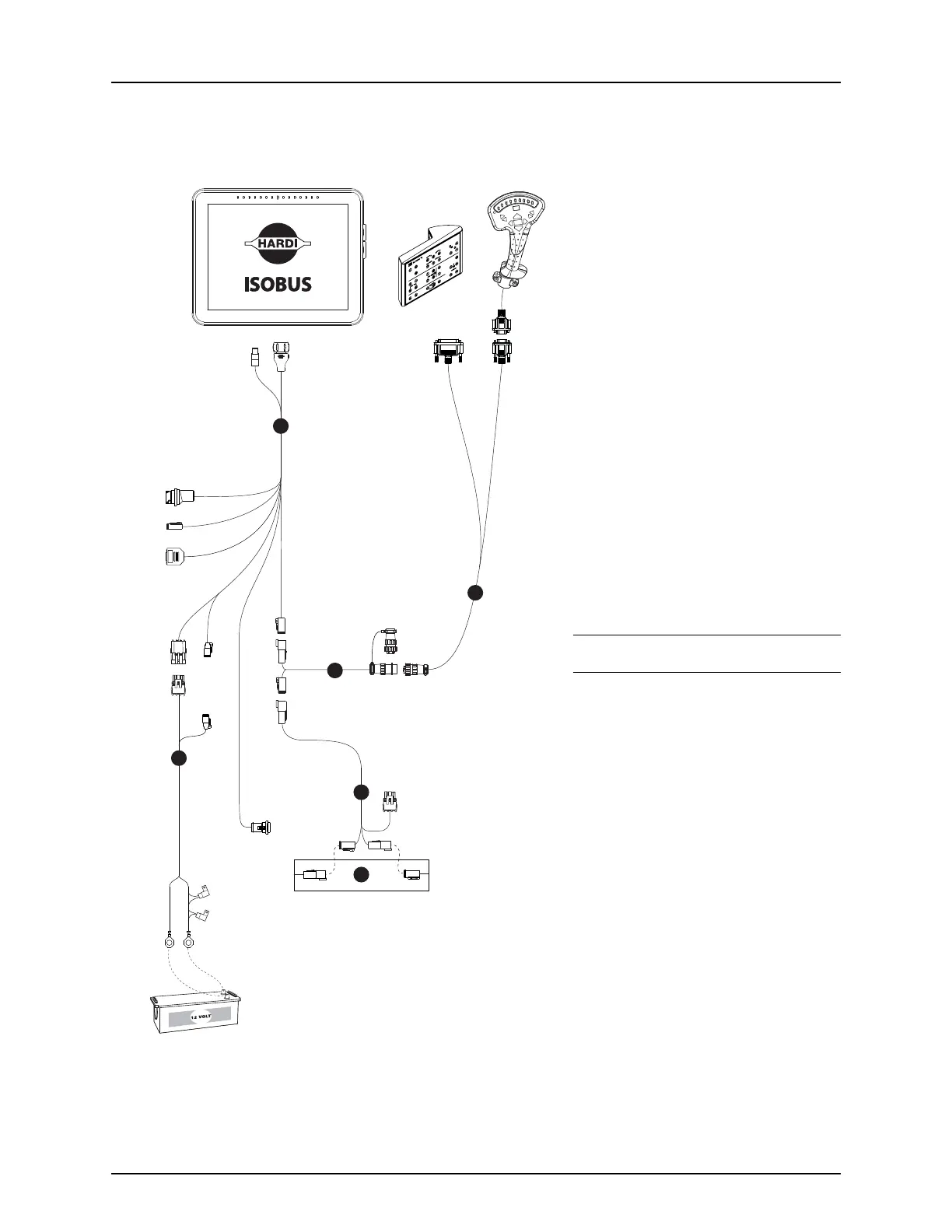

ISOBUS Tractor without cabin connector
A. 26069200/4004664-1
Display cable, Guidance activation - 3.8m
J01 - Display Main
J06 - Guidance Activation
P01 - Power IN
J05 - CAN A
J04 - GPS
J03 - ISOBUS
J02 - Digital I/O
J07 - Display Ethernet
J08 - Ethernet Out
Connector J07 and J08 are only present on
the 3,8m cable.
C. 26040900/ 4002820-1
Power, display/guidance
J04 - Power 5A
J06 - Power 15A
J09 - Battery ground
J10 - Battery power
J01 - Fuse, 5A blade style
J03 - Fuse, 15A blade style
M. 26069900/ 4004668-1
ISOBUS Joystick Tee cable
J01 - ISO CAN Out
P01 - ISO CAN In
P02 - Grip Connector
J02 - Jumper
E. 26034403/4004301-1
P01 - Display cable
J04 - ECU Power
J02 - ISO CAN B Out
P02 - ISO CAN B In
G. 26031500
HARDI® Grip and SetBox cable
L. Tractor ISOBUS
Grip and SetBox kit include the cable G.
Display cable kit 83365003 includes cables:
A, C, E and M.
J02
J04
P01
J03
J01
J04
J06
J10
J09
J01
J03
A
G
C
J07
J08
J04
L
E
J02 P02
P02
M
P01
J01
J02
P01
J06
J05
