3 - Description
12

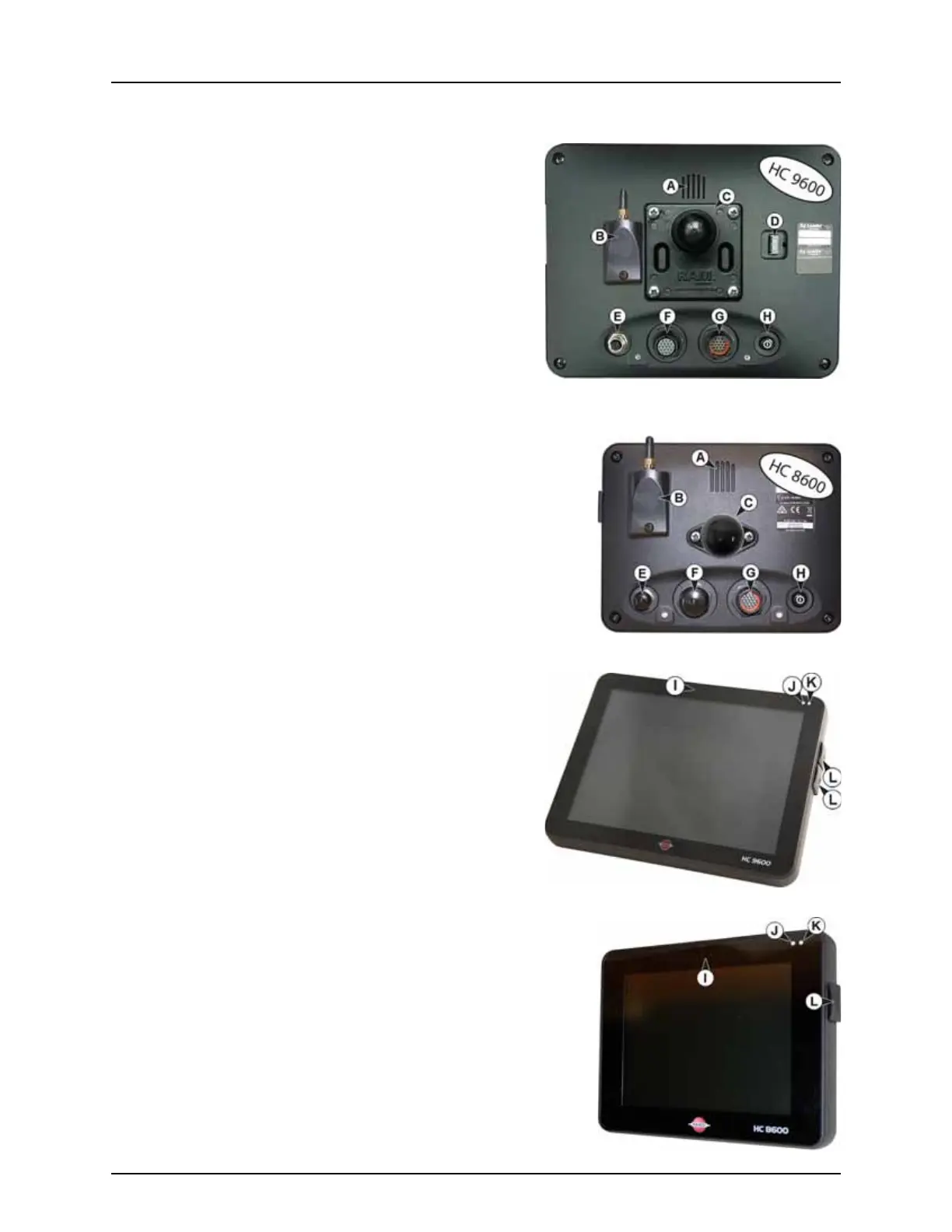

Display Hardware
Rear
A. Speaker
The built-in speaker is used for audible warnings. The volume can
be adjusted through the display setup routine.
B. WiFi
802.11 communication.
C. RAM mount
D. HDMI OUT (HC 9600 only)
E. Ethernet Connection
4-pin connection used for communication with ParaDyme,
GeoSteer, SteerCommand, OnTrac3.
F. 19-pin auxiliary connection
Used for camera input.
G. 19-pin plug
The 19-Pin round display connector contains CAN, RS-232 serial, and system
power and ground connections. It is compatible with some certain other
displays.
H. Power/Reset switch
The Power/Reset switch is used for turning the display on and off in
installations where the system is connected to a continuous power supply.
If the display ever stops responding, the manual power switch may be held
in for five seconds to restart the system. Only do this as a last resort, data loss
could occur during times of improper shutdown.
Front and Side
I. Built in lightbar
For guidance.
J. Light sensitivity sensor
Used to automatically dim the display during nighttime or low-
light situations.
K. Power light
The power light displays one of three states:
L. Side mount USB media slots
• 2 slots for HC 9600
• 1 slot for HC 8600
Used for data transfer in and out of the display.
Used to charge mobile devices up to 1.2 amps.
Green = ON
Pulses amber = Standby Mode
Solid amber = Running on battery power
