NAVIGATOR 550M, 800M, 1000M CENTRIFUGAL OPERATOR'S MANUAL
Ground clearance can be changed on the 800M/1000M TA (no longer
available) to either 20" or 27.5". This is done by loosening the three bolts
(B) (Fig. 4) and removing the pivot pin. Place the tandem beam at either
of the two positions and reinstall the pivot pin and bolts.
Note: The HARDI
®
Navigator 800M/1000M model also has an optional
120" wide axle. The 120" axle is available in the single axle HC
(High Clearance). The TA (Tandem Axle) version is no longer
available. The 120" axle is a fi xed length and cannot be adjusted.
Ground clearance is the same as the standard axle systems.
Note: On 550M HC models, rims may have to be switched from one side
to the other to obtain proper wheel spacing.

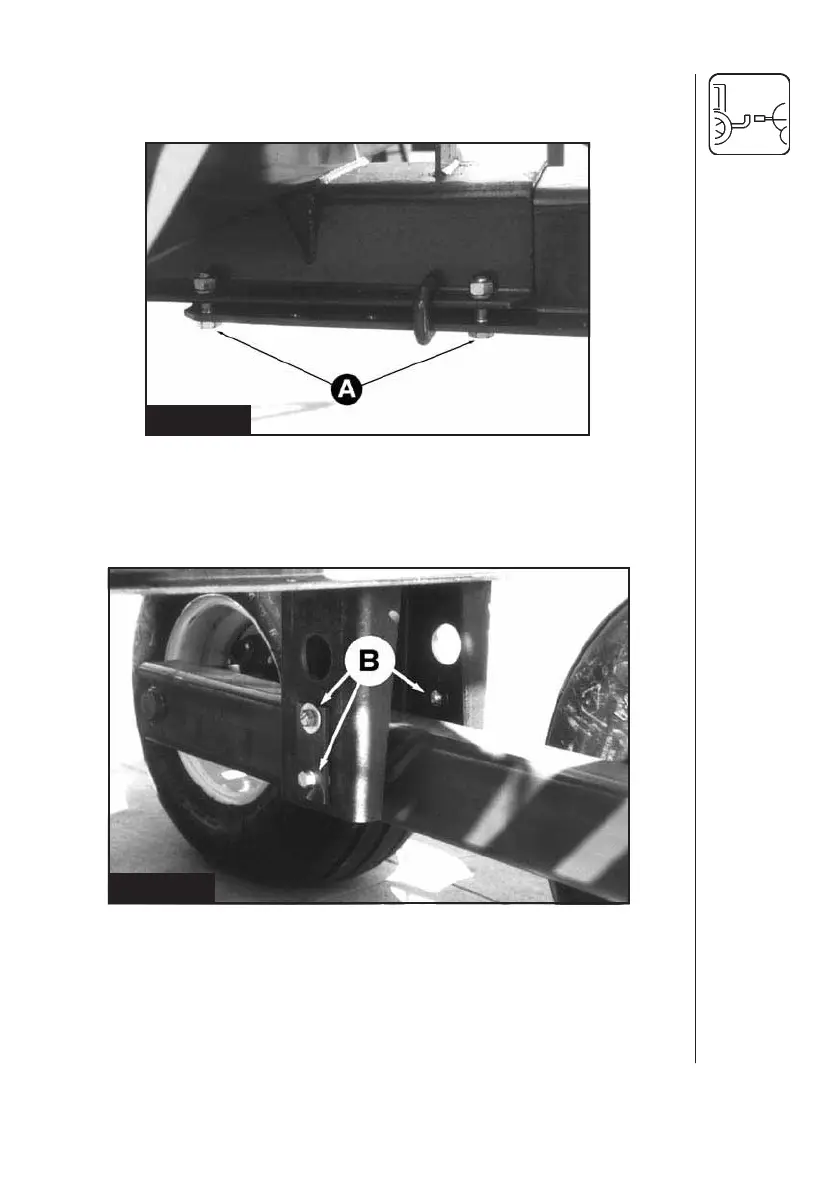

Fig. 3
Fig. 4
