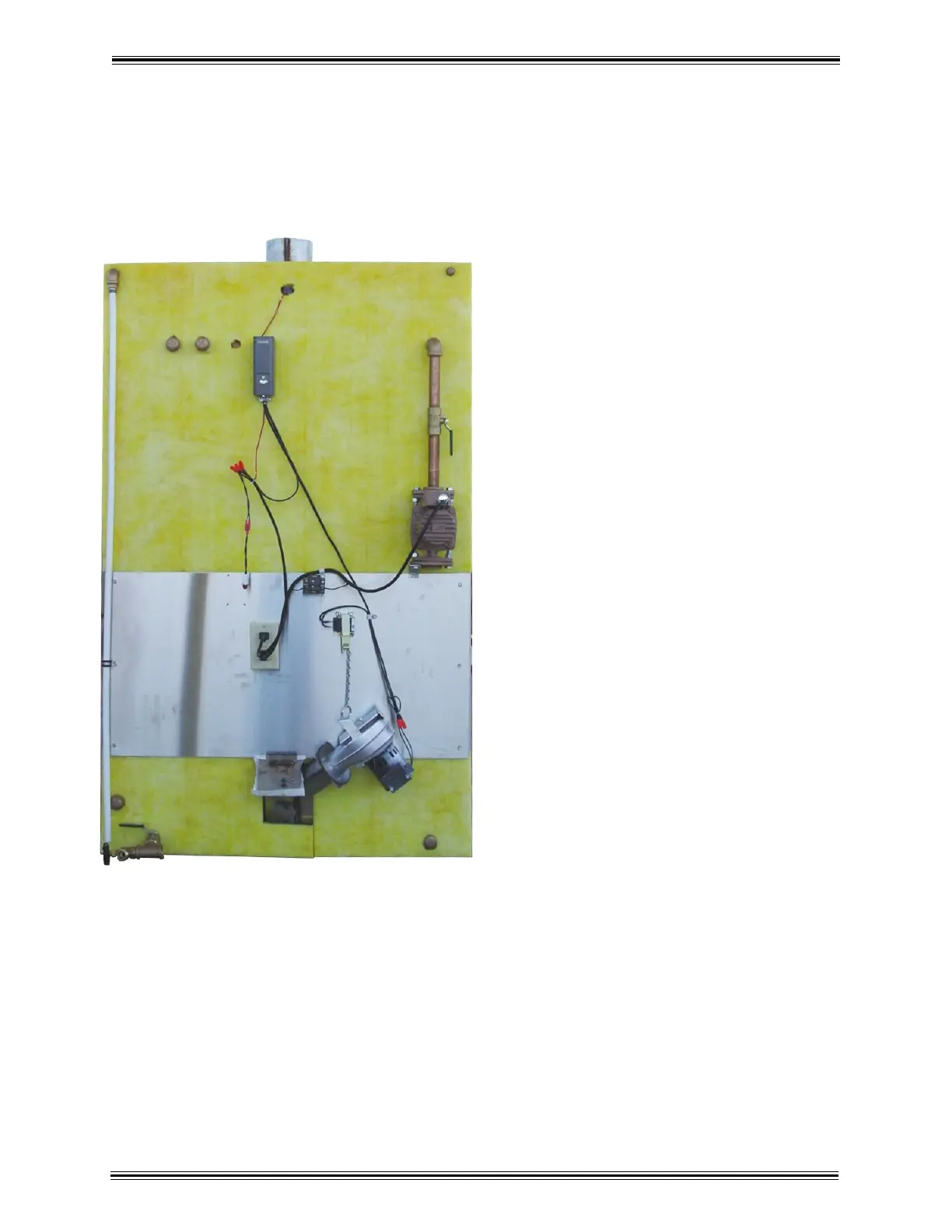

Section I 1-2 Heater Component Parts (Model H3, H5, & H6)
Legend Part No. Description
1 600.10 1/2” Brass Elbow
2 800.10 1/2” Overflow pipe
3 1100.27 Low water switch
4 604.32 3/4” Brass caps
5 604.16 1/2” Brass cap
6 2000.08 Well fitting
7 2000.08 Honeywell Hi-temp Thermostat
8 2004.08 8’ 2 wire power cord
9 600.30 3/4” Brass elbow
10 603.32 3/4” x 6” Brass nipple
11 607.12 3/4” Brass ball valve
12 502.40 3/4” Bronze flange
13 502.08 Taco 009 Bronze pump w/ power cord
for H3 & H5 Models
508.09 Taco 008 Bronze pump w/ power cord
for H6 Model
14 2000.52 Relay
15 2001.00 Dormeyer damper solenoid
16 2004.16 Receptacle box
17 2004.00 GFCI Receptacle
18 3200.12 Jack chain
19 2002.04 60 CFM blower w/lid for H6 Model
2002.16 100 CFM blower w/lid for H3 Model
2002.28 130 CFM blower w/ lid for H5 Model
20 603.40 3/4” x close nipple
21 602.16 3/4” Brass tee
22 607.42 3/4” Boiler drain
1
2
4 5
3
6
7
8
9
10
10
11
12
13
12
14
15
16
17
18
19
11
20
21
22
4
4
