Section II 2-8 Filling the Heater with Water (continued)
THE HEATER MUST BE FILLED WITH WATER BEFORE STARTING A FIRE.
There is a low water switch located in the back of the heater. This low water switch
extends into the water tank directly into the condenser tank area. This switch will activate a
low warning light mounted into the side of the outer hull. The water level in the heater
needs to be high enough to operate low water switch and turn off the low water warning
light.

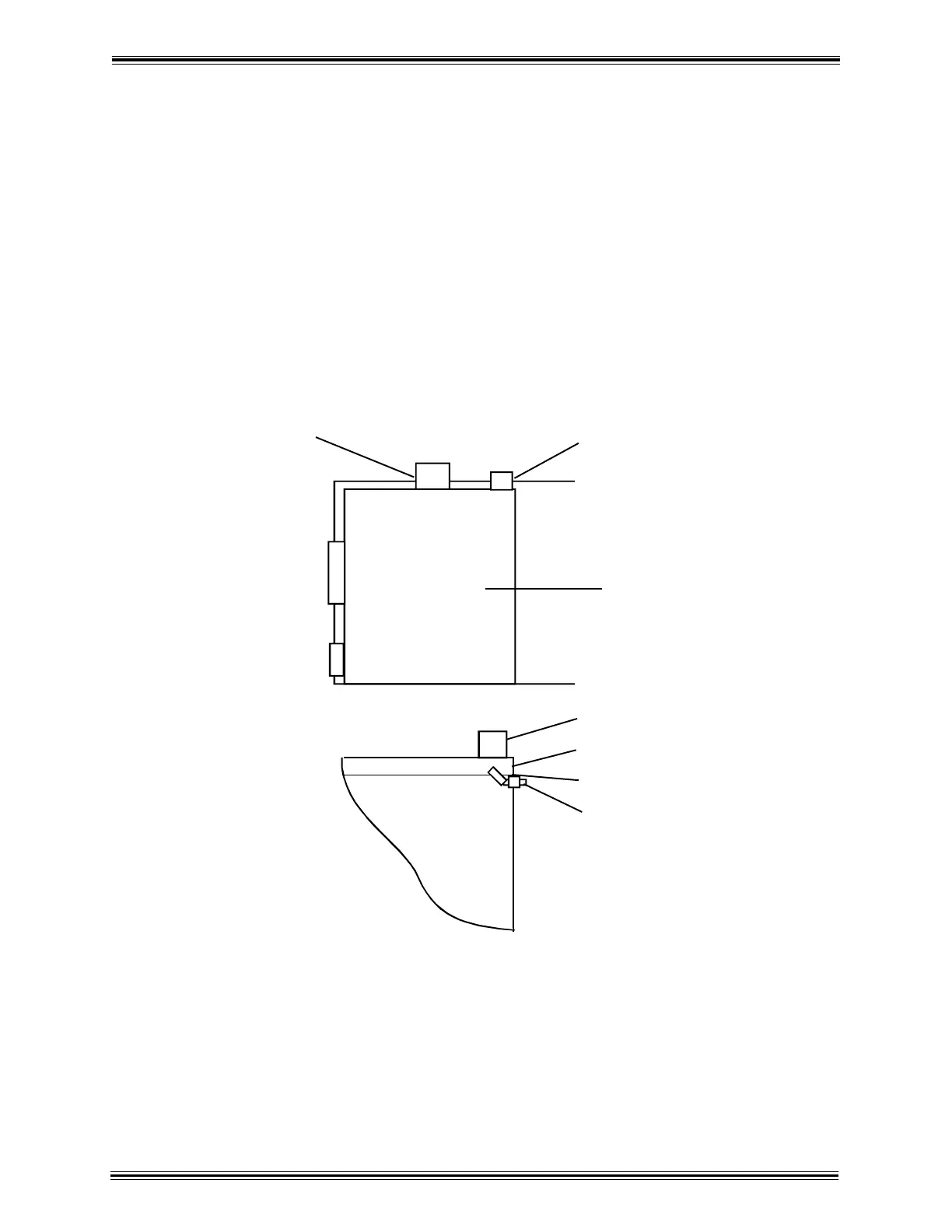

Seal between the cover
and the tank lid collar
Seal between the condenser
tank and heater cover
Condenser tank
Do not fill past this point
Minimum water level
Low water switch
Heater with cover installed
