HARDY MANUFACTURING CO., INC (MODEL H3, H5, & H6) PAGE 5
Section II 2-1 Location of Heater (continued)
Option 2 illustrates the unit installed on a concrete slab with cut out in the slab for plumbing
and electrical connects to run through. We recommend this pad to be 48” wide by 60”
minimum long. If you add extra length it will allow ample concrete in front of the heater for
loading wood and removing the ashes. The 4” watertight pipe or other means to insulate
plumbing that runs underground exits through this cut out to allow connections to the unit.
The unit sits on the slab with the rear of the water tank flush or even with the front side of
the cutout. The outside cover of the heater can be removed by lifting it from the water tank
on all four corners. This will allow you east access for the plumbing and electrical
connections.
Outside Hull
Water Tank
Concrete Pad
Condenser Stack
Pump
Run one 4” watertight
pipe to pull water and
electrical lines through
between the heater and
the location to be heated
or other means to insulate
the plumbing lines.
A minimum of 16 sq. in. is
required for combustion air to
enter heater.
Side
View

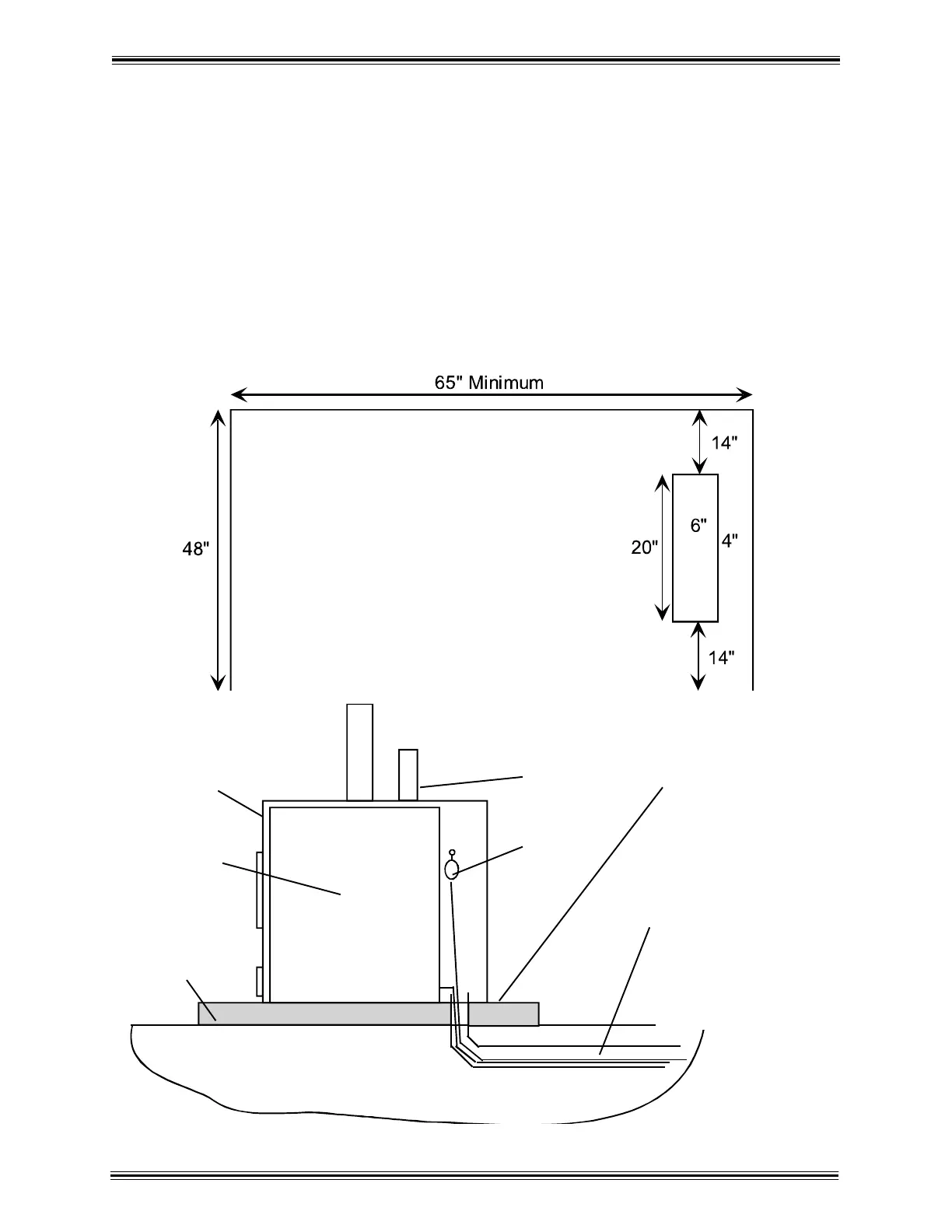

Heater on solid pad (Not to Scale)
OPTION #2
