HARDY MANUFACTURING CO., INC (MODEL H3, H5, & H6) PAGE 7
Section II 2-3 Set-Up of Grates
First open the firebox door and remove everything from inside of the heater except the two
I-beams and three grate. Lay the two I-beams up on the edge and over against the tabs as

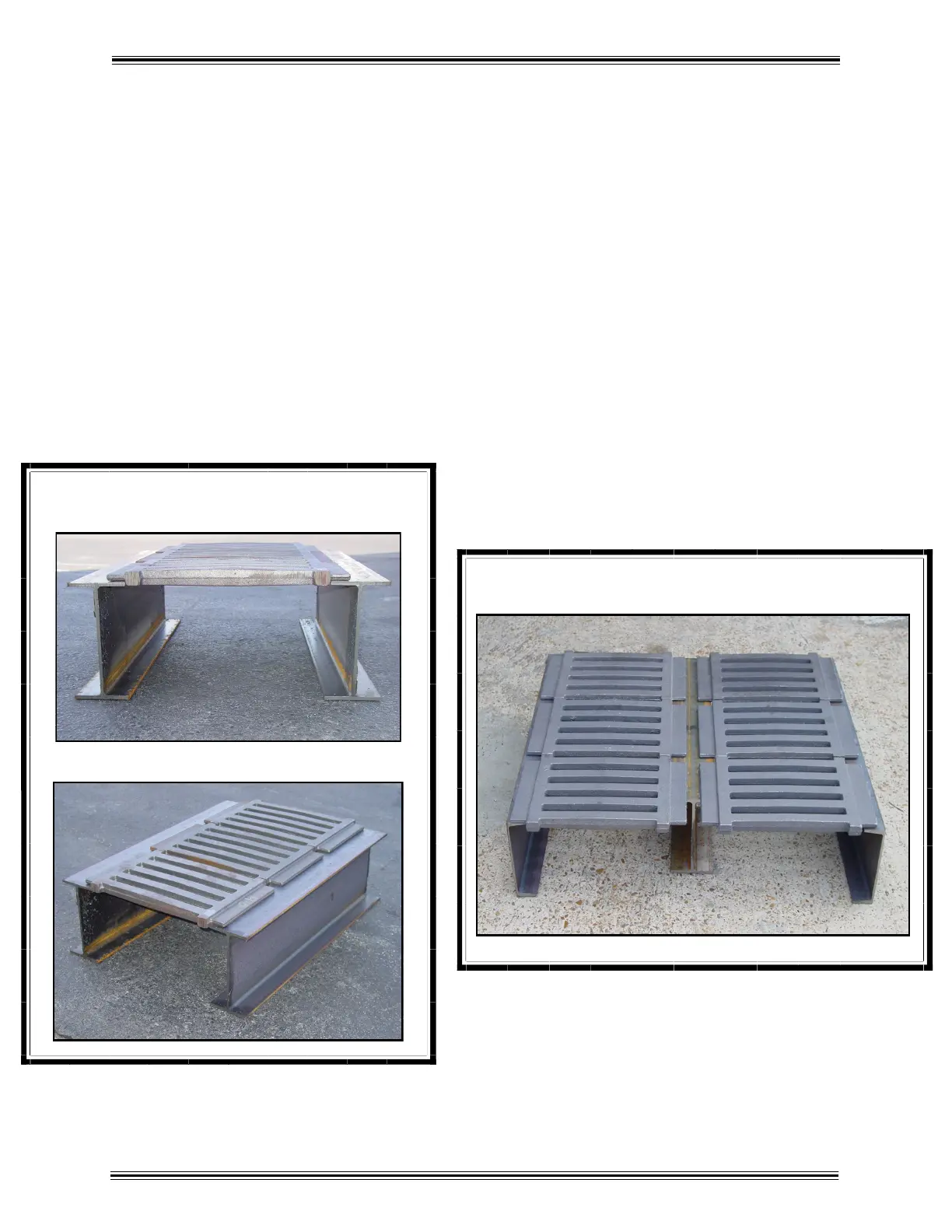

shown in the picture below. The grates can now be placed on the I-beams in line and side
to side. The picture below shows the proper way for grates to be installed.
These grates are designed to be turned over if they warp.
On Hardy H5 models, there is a stainless steel flame baffle (15” x 10”). This flame baffle is
inserted in the firebox across the 3/4” stainless steel pipes located directly below the
smokestack.
3 Grate Setup for H3
(H6 Has Only 2 Grates)
6 Grate Setup for H5
