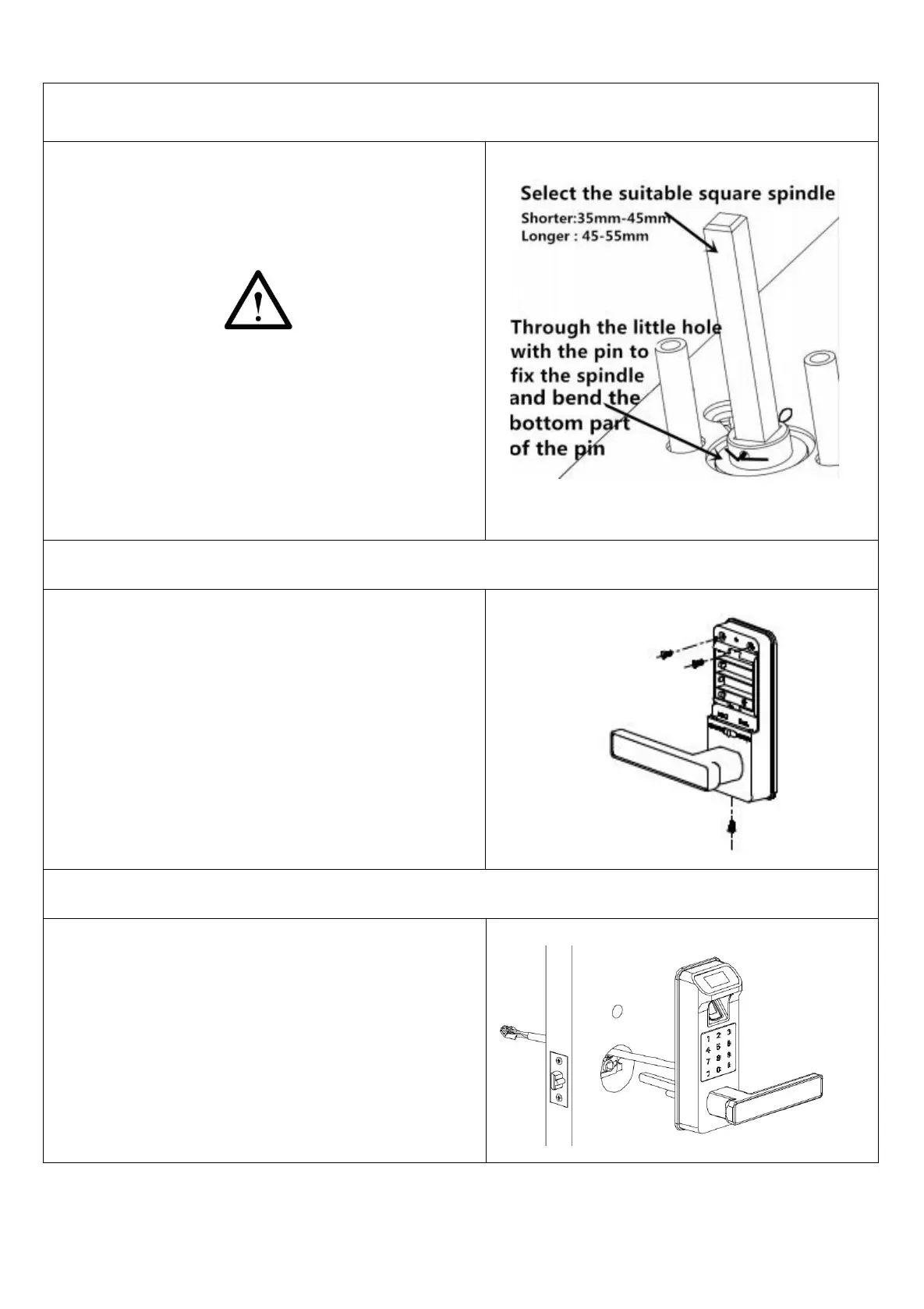

3.2 Install the outer lock with square spindle
1.Select the suitable square spindle that
fit your door thickness. (shorter :
35~45mm; longer: 45~55mm)
2.Find the little pin in the accessories bag.
Install the square spindle, through the
little hole with the pin to fixed the
spindle on the outer lock and Bend the
bottom of the little pin to hold it in
place. (Please be sure align the position of
the little hole)
3.3 Get the metal plate
1. Find the inner lock and take off the
battery cover.
2. Remove these 3 screws.
3.Get the metal plate and PVC
sheet(Numbered 10 and 6 on the page 5
Overview).
3.4 Install the outer lock
Let the data cable goes on the top of
latch. Make sure the square spindle and 2
screws pillar through the latch holes.
