HARFO F01 - Overview; Installation Diagram

５

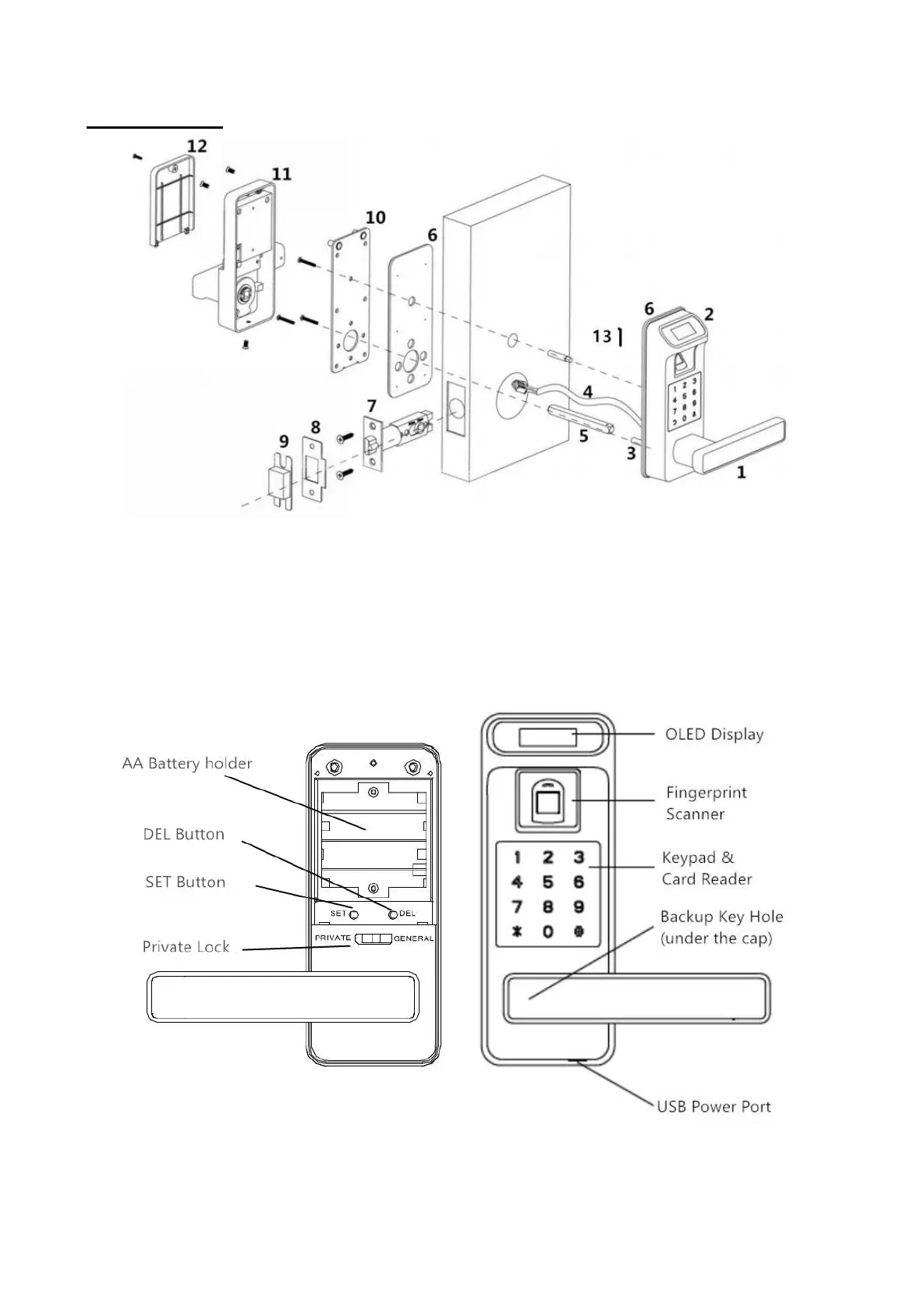

2.Overview
1. Outer Handle 2. Outer Lock 3. Screws Pillar 4. Data Wire
5. Square Spindle 6. PVC Sheet 7. Latch 8. Strike Plate 9.Bottom Case
10. Metal Plate 11. Inner Lock 12. Battery Cover 13. Pin (fixed square spindle)
