Harig 612 - Page 3

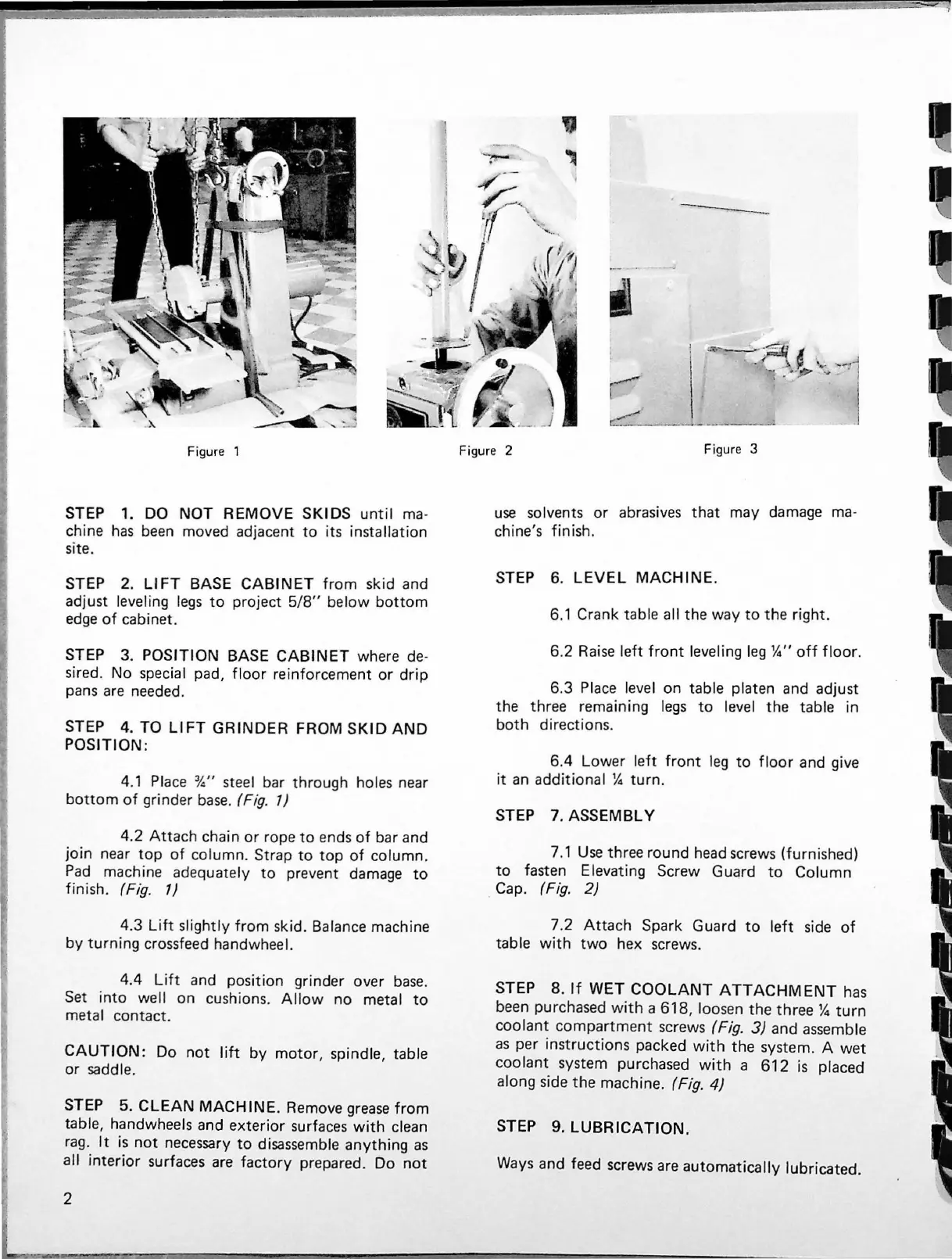

Figure 1
STEP 1. DO NOT REMOVE SKIDS until ma-
chine has been moved adjacent to its installation
site.
STEP 2. LI FT BASE CABINET from skid and
adjust leveling legs to project 5/8" below bottom
edge of cabinet.
STEP 3. POSITION BASE CABINET where de -
sired. No special pad, floor reinforcement or drip
pans are needed.
STEP 4. TO LIFT GRINDER FROM SKID AND
POSITION:
4.1 Place ¾" steel bar through holes near
bottom of grinder base. (Fig. 1)
4.2 Attach chain or rope to ends of bar and
join near top of column. Strap to top of column .
Pad machine adequately to prevent damage to
finish. (Fig. 1)
4.3 Lift slightly from skid. Balance machine
by turning crossfeed handwheel.
4.4 Lift and position grinder over base.
Set into well on cushions. Allow no metal to
metal contact .
CAUTION: Do not lift by motor, spindle, table
or saddle.
STEP 5. CLEAN MACHINE. Remove grease from
table, handwheels and exterior surfaces with clean
rag. It is not necessary to disassemble anything as
all interior surfaces are factory prepared. Do not
2
11
,--
l
_,....,.-<'
Figure 2
Figure 3
use solvents or abrasives that may damage ma-
chine's finish.
STEP 6. LEVEL MACHINE.
6.1 Crank table all the way to the right.
6.2 Raise left front leveling leg ¼" off floor .
6.3 Place level on table platen and adjust
the three remaining legs to level the table in
both directions.
6.4 Lower left front leg to floor and give
it an additional ¼ turn .
STEP 7. ASSEMBLY
7.1 Use three round head screws (furnished)
to fasten Elevating Screw Guard to Column
. Cap . (Fig. 2)
7.2 Attach Spark Guard to left side of
table with two hex screws.
STEP 8. If WET COOLANT ATTACHMENT has
been purchased with a 618, loosen the three ¼ turn
coolant compartment screws (Fig. 3) and assemble
as per instructions packed with the system . A wet
coolant system purchased with a 612 is placed
along side the machine. (Fig. 4)
STEP 9. LUBRICATION.
Ways and feed screws are automatically lubricated .
