Harig 612 - Page 4

~
)
I
ii '-
. '~ ..
. ~j r'IRJ
. I I
r/i --1 )
1/
-- .. _,e ,· -...- ...
' .
. .
'
""'
<
... I I
a !1
Figure 4
·1 1
: !
' '
'!~
1 I
; --
I
I
I
i i, [' -,.
l , .
1 •, ...
- - .
•, -
L
Figure 5

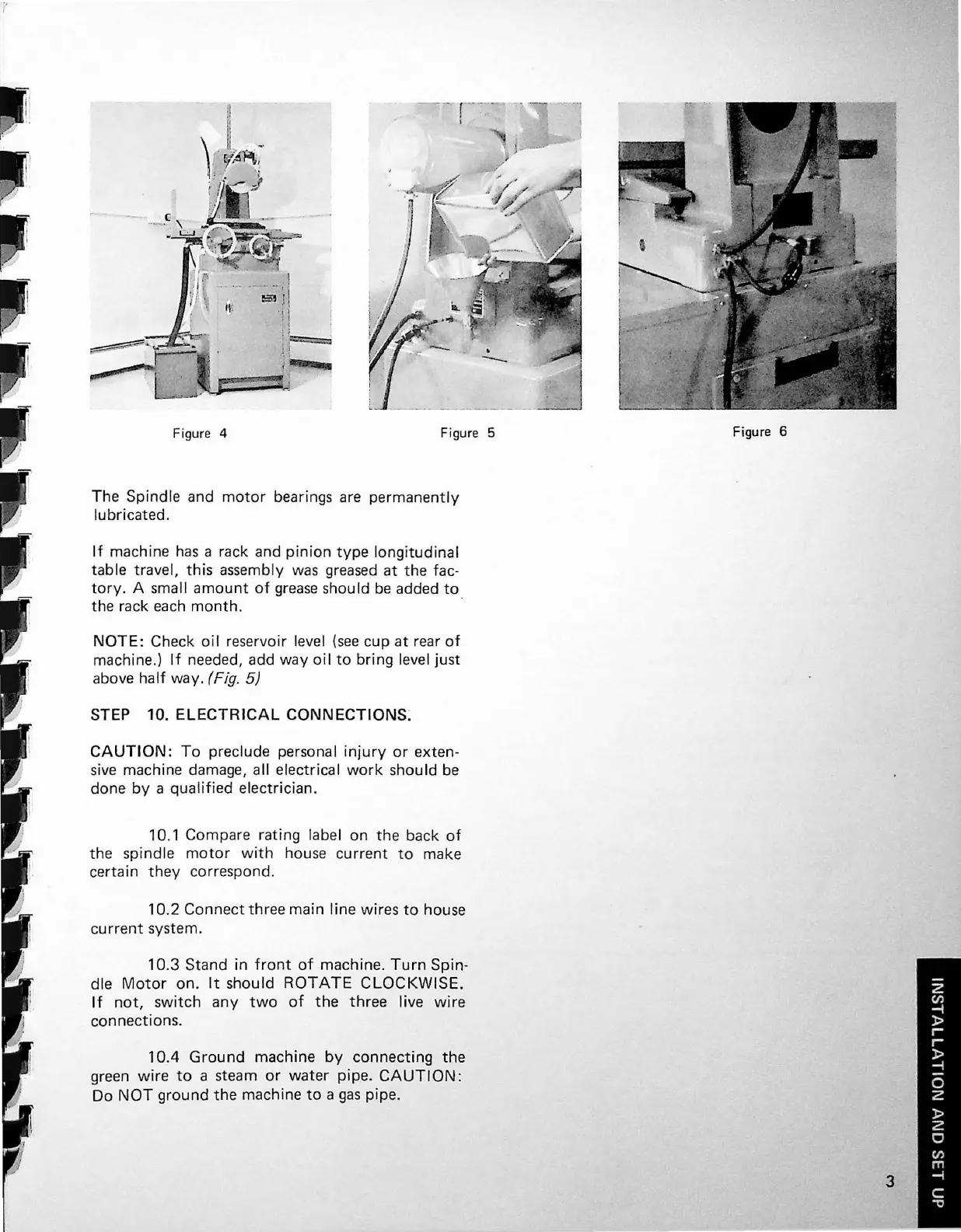

The Spindle and motor bearings are permanently
lubricated.
If machine has a rack and pinion type longitudinal
table travel, this assembly was greased at the fac-
tory. A small amount of grease should be added to
the rack each month. ·
NOTE: Check oil reservoir level (see cup at rear of
machine.) If needed, add way oil to bring level just
above half way. (Fig. 5)
STEP 10. ELECTRICAL CONNECTIONS:
CAUTION: To preclude personal injury or exten-
sive machine damage, all electrical work should be
done by a qualified electrician.
10.1 Compare rating label on the back of
the spindle motor with house current to make
certain they correspond.
10.2 Connect three main line wires to house
current system.
10.3 Stand in front of machine. Turn Spin-
dle Motor on . It should ROTATE CLOCKWISE.
If not, switch any two of the three live wire
connections.
10.4 Ground machine by connecting the
green wire to a steam or water pipe. CAUTION :
Do NOT ground the machine to a gas pipe.
Figure 6
3
