Harman Kardon 150+ - Bottom View

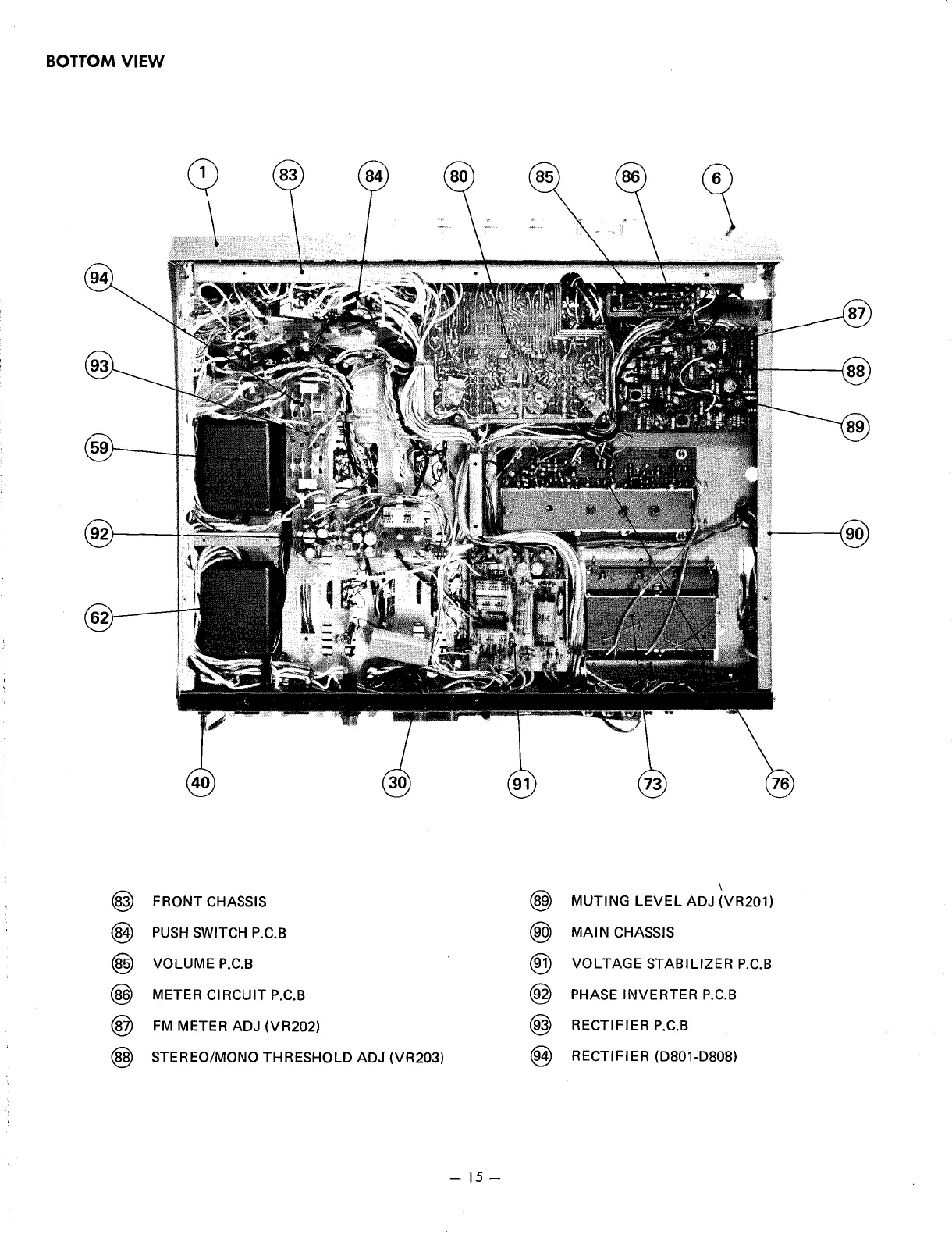

BOTTOM VIEW
(@
@)
I
FRONT CHASSIS
MUTING LEVEL ADJ (VR201)
@
PUSH SWITCH P.C.B
@
MAIN CHASSIS
@
VOLUME P.C.B
®
VOLTAGE STABILIZER P.C.B
@
METER CIRCUIT P.C.B (@
PHASE INVERTER P.C.B
(@
FM METER ADJ (VR202) @)
RECTIFIER P.C.B
®
STEREO/MONO THRESHOLD ADJ (VR203)
~
RECTIFIER (D801-D808)
- 15 -
