Harman Kardon AVR 1510 Service Manual

AVR

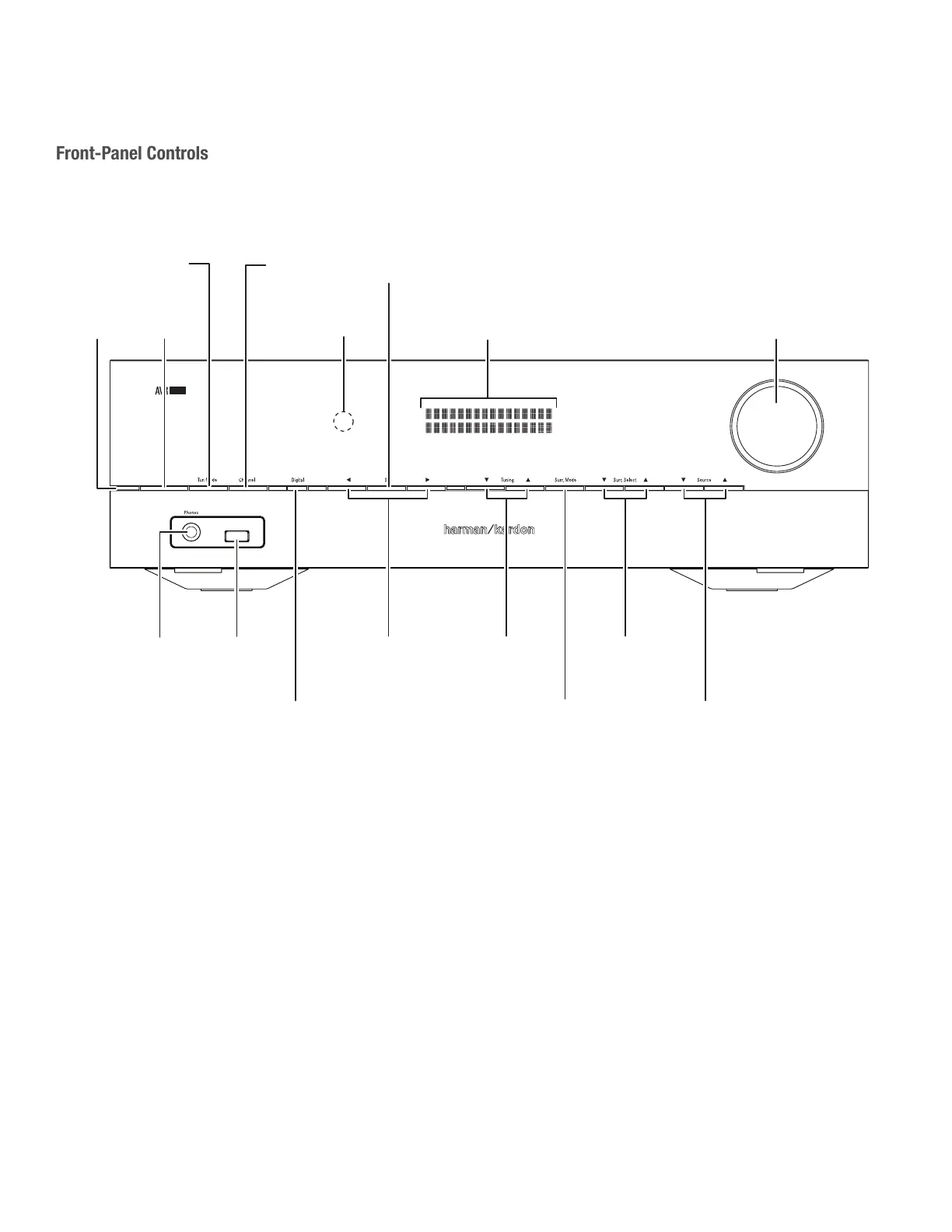

Front-Panel Controls
4
Front-Panel Controls
1510
Power
Indicator
Front-Panel
Display
Volume
Knob
Set
Button
IR
Sensor
Power
Button
Left/Right
Buttons
Headphone Jack
Audio Input
Button
Surround Modes
Select Buttons
Surround Mode
Category Button
Up/Down Buttons/
Tuning Buttons
USB
Port
Channel Volume
Adjust Button
Source Select
Buttons
Tuning Mode Button
(AVR 1510)/ RDS
Button (AVR 151)
Harman Kardon
AVR 151 Service Manual
Page 3 of 131

Harman Kardon AVR 1510 Specifications

Audio Specifications

stereo power	75W per channel, two channels driven @ 6/8 ohms, 1kHz, <0.1% THD
multichannel power	75W per channel, two channels driven @ 6/8 ohms, 1kHz, <0.1% THD
input sensitivity/impedance	250mV/27k ohms
signal-to-noise ratio (IHF-A)	75dB
frequency response (@ 1W)	10Hz – 130kHz (+0dB/–3dB)
high instantaneous current capability (HCC)	±25 amps
slew rate	40V/sec

FM Tuner Specifications

frequency range	87.5MHz – 108.0MHz
usable sensitivity IHF	1.3µV/13.2dBf
signal-to-noise ratio (mono/stereo)	70dB/68dB
distortion (mono/stereo)	0.2%/0.3%
stereo separation	40dB @ 1kHz
selectivity (±400kHz)	70dB

AM Tuner Specifications

frequency range	520kHz – 1, 510kHz
signal-to-noise ratio	38dB
usable sensitivity (loop)	375µV
distortion (1kHz, 50% mod)	1.0%
selectivity (±10kHz)	30dB

Video Specifications

television format	NTSC
input level/impedance	1Vp-p/75 ohms
output level/impedance	1Vp-p/75 ohms
video frequency response (composite video)	10Hz – 8MHz (–3dB)
HDMI	Supports up to 4K x 2K

General Specifications

power requirement	120V AC / 60Hz
power consumption	<0.5W (standby); 410W maximum
dimensions (H x W x D)	4-3/4" x 17-5/16" x 11-13/16" (121mm x 440mm x 300mm)
weight	10 lb (4.6kg)
