Harman Kardon AVR 1610 Quick Start Guide

AVR
6

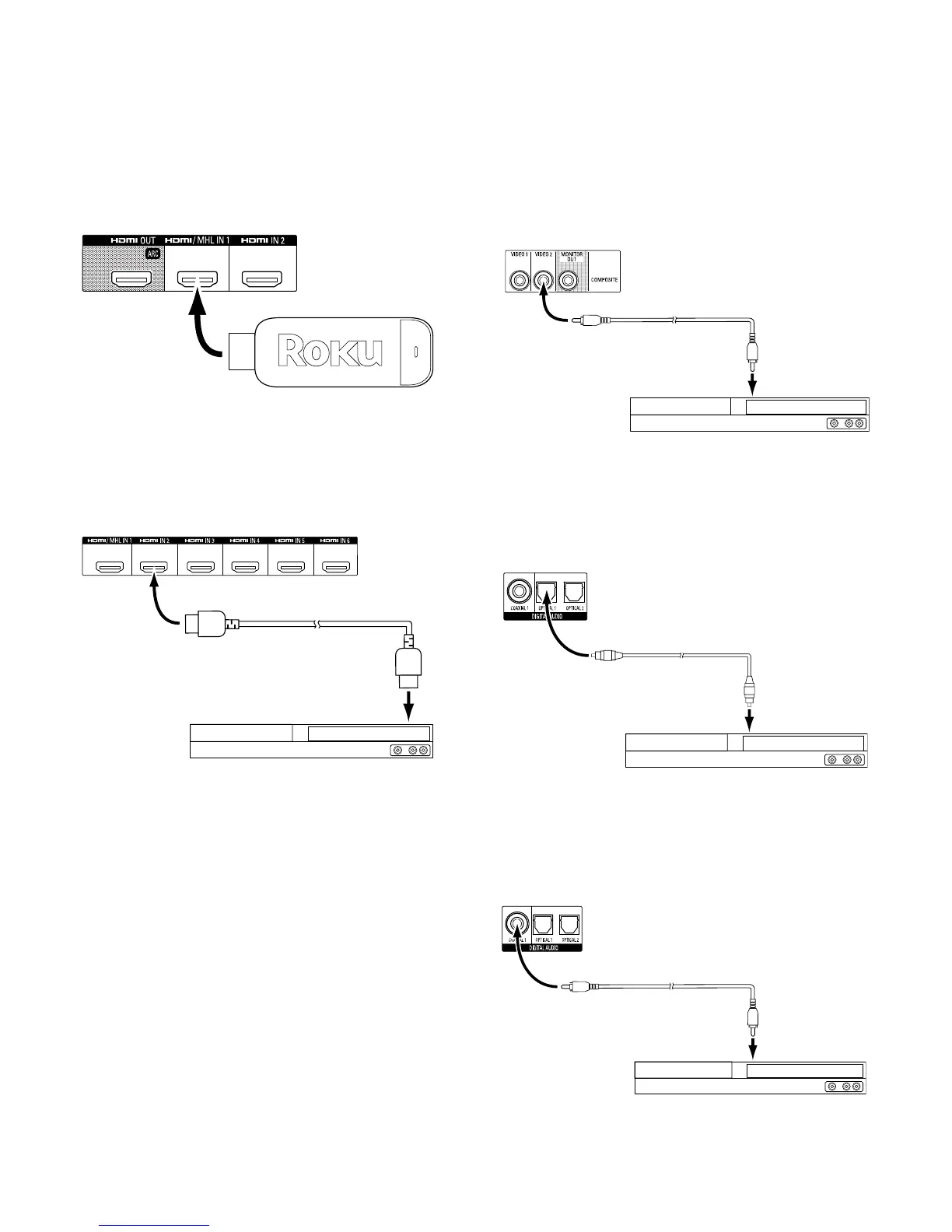

Connections
Roku Streaming Stick
™
(AVR 1710/AVR 171/AVR 1610/AVR 161 only):
If you have a Roku Streaming Stick device, insert it into the AVR’s HDMI/MHL In connector.
NOTE: Do not insert the Roku Streaming Stick device into any other HDMI In connector.
AVR HDMI/MHL
In Connector
Roku
®
Streaming Stick
HDMI Devices
If any of your source devices have HDMI connectors, using them will provide the best
possible video and audio performance quality. Since the HDMI cable carries both digital
video and digital audio signals, you do not have to make any additional audio connections
for source devices you connect via HDMI connectors.
AVR HDMI IN Connectors
HDMI Cable
(not supplied)
To HDMI Output
Connector
HDMI-Equipped Source Device
Composite Video Devices
Use composite video connectors for video source devices that don’t have HDMI or
component video connectors. You will also need to make an audio connection from the
source device to the AVR.
AVR Analog
Video Connectors
Composite Video Cable
(not supplied)
To Composite Video
Output Connector
Composite Video-Equipped Source Device
Optical Digital Audio Devices
If your non-HDMI source devices have optical digital output connectors, connect them to
the AVR’s optical digital audio connectors. NOTE: Make only one type of digital connection
(HDMI, optical or coaxial) from each source device.
AVR Digital
Audio Connectors
Optical Digital Audio
Cable (not supplied)
To Optical Digital Audio
Output Connector
Optical-Equipped Source Device
Coaxial Digital Audio Devices
If any of your non-HDMI source devices have coaxial digital output connectors, connect
them to the AVR’s coaxial digital audio connector. NOTE: Make only one type of digital
connection (HDMI, optical or coaxial) from each source device.
AVR Digital
Audio Connectors
Coaxial Digital Audio
Cable (not supplied)
To Coaxial Digital Audio
Output Connector
Coaxial-Equipped Source Device

Harman Kardon AVR 1610 Specifications

Audio Specifications

stereo power	85W per channel, two channels driven @ 6/8 ohms, 20Hz – 20kHz, <0.1% THD
multichannel power	85W per channel, two channels driven @ 6/8 ohms, 20Hz – 20kHz, <0.1% THD
input sensitivity/impedance	250mV/27k ohms
signal-to-noise ratio (IHF-A)	100dB
surround system adjacent channel separation (Dolby Pro Logic/DPLII)	40dB
surround system adjacent channel separation (Dolby Digital)	55dB
surround system adjacent channel separation (DTS)	55dB
frequency response (@1W)	10Hz – 130kHz (+0dB/–3dB)
high instantaneous current capability (HCC)	±29 amps
slew rate	40V/sec

FM Tuner Specifications

frequency range	87.5MHz – 108.0MHz
usable sensitivity IHF	1.3µV/13.2dBf
signal-to-noise ratio (mono/stereo)	70dB/68dB
distortion (mono/stereo)	0.2%/0.3%
stereo separation	40dB @1kHz
selectivity (±400kHz)	70dB
image rejection	80dB
IF rejection	80dB

AM Tuner Specifications

frequency range	520kHz – 1, 610kHz
signal-to-noise ratio	38dB
usable sensitivity (loop)	425µV
distortion (1kHz, 50% mod)	1.0%
selectivity (±10kHz)	30dB

Video Specifications

television format	NTSC
input level/impedance	1Vp-p/75 ohms
output level/impedance	1Vp-p/75 ohms
video frequency response (composite video)	10Hz – 8MHz (–3dB)
HDMI support	up to 4K x 2K

General Specifications

power requirement	120V AC/60Hz
power consumption	<0.5W (standby); 450W maximum
dimensions (H x W x D)	4-3/4" x 17-5/16" x 11-13/16" (121mm x 440mm x 300mm)
weight	10lb (4.6kg)
