AVR

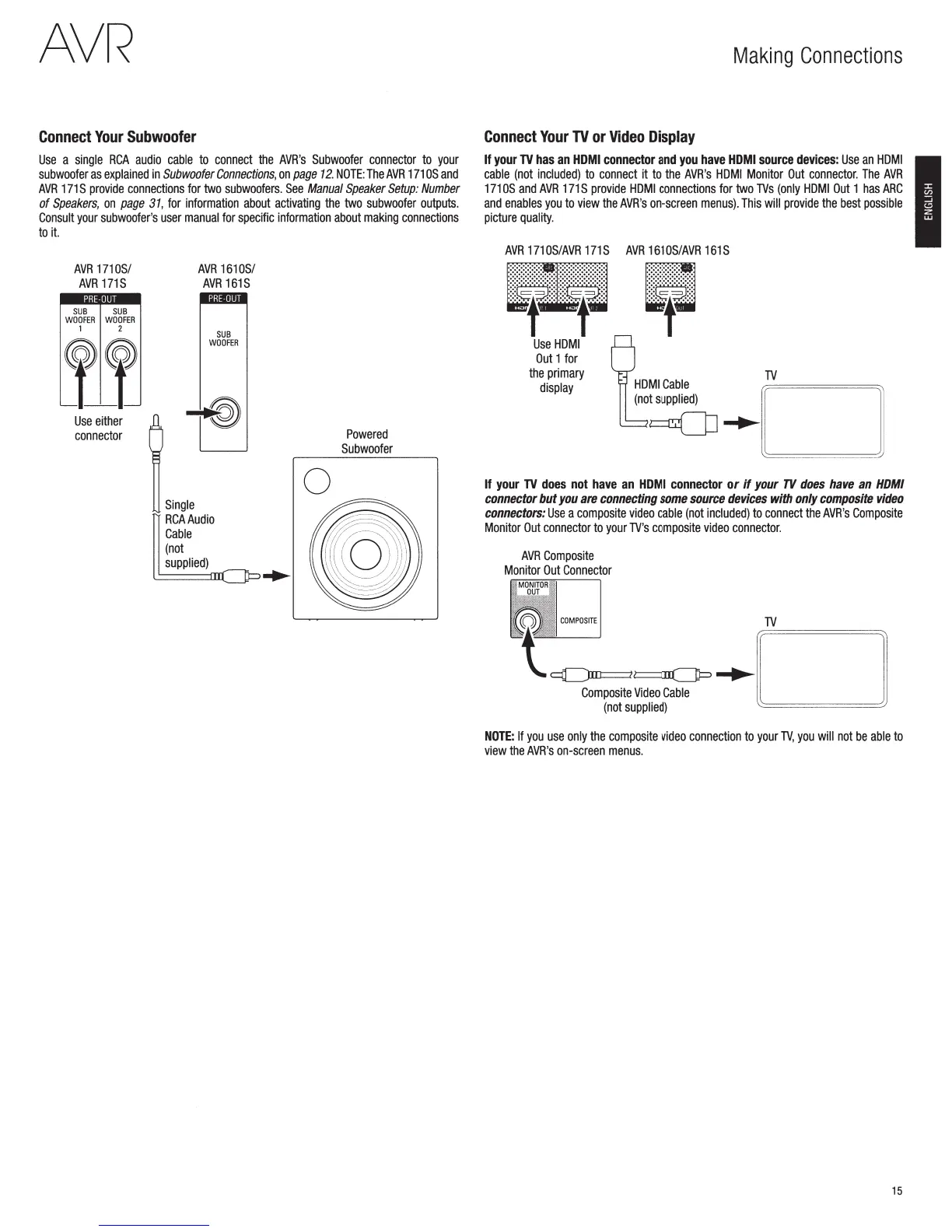

Connect Your Subwoofer
Use a single RCA audio cable to connect the AVR's Subwoofer connector to your
subwoofer as explained in Sub woofer Connections, on page 12. NOTE: The AVR 171 OS and
AVR 171 S provide connections for two subwoofers. See Manual Speaker Setup: Number
of Speakers, on page 31, for information about activating the two subwoofer outputs.
Consult your subwoofer's user manual for specific information about making connections
to it.
AVR 1710S/
AVR 171S
SUB SUB
WOOFER WOOFER
1 2
Use either
connector
AVR 1610S/
AVR 161S
SUB
WOOFER
Single
RCA Audio
Cable
(not
supplied)
0
Powered
Subwoofer
Making Connections
Connect Your TV or Video Display
If your TV has an HDMI connector and you have HDMI source devices: Use an HDMI
cable (not included) to connect it to the AVR's HDMI Monitor Out connector. The AVR
171 OS and AVR 171 S provide HDMI connections for two TVs (only HDMI Out 1 has ARC
and enables you to view the AVR's on-screen menus). This will provide the best possible
picture quality.
AVR 1710S / AVR 171S AVR 1610S / AVR 161S
lflltl.
Use HDMI
Out 1 for
the primary
display
HDMI Cable
TV
If your TV does not have an HDMI connector or if your 1V does have an HOM/
connector but you are connecting some source devices with only composite video
connectors: Use a composite video cable (not included) to connect the AVR's Composite
Monitor Out connector to your TV's composite video connector .
AVR Composite
Monitor Out Connector
~c::=:mC:Jo ~
Composite Video Cable
(not supplied)
TV
CJ
.
NOTE: If you use only the composite video connection to your TV , you will not be able to
view the AVR's on-screen menus .
15
