ULTRA-SMALL PACKAGE HIGH-PRECISION VOLTAGE DETECTOR
S-808xxC Series
Rev.3.2
_00
nc.

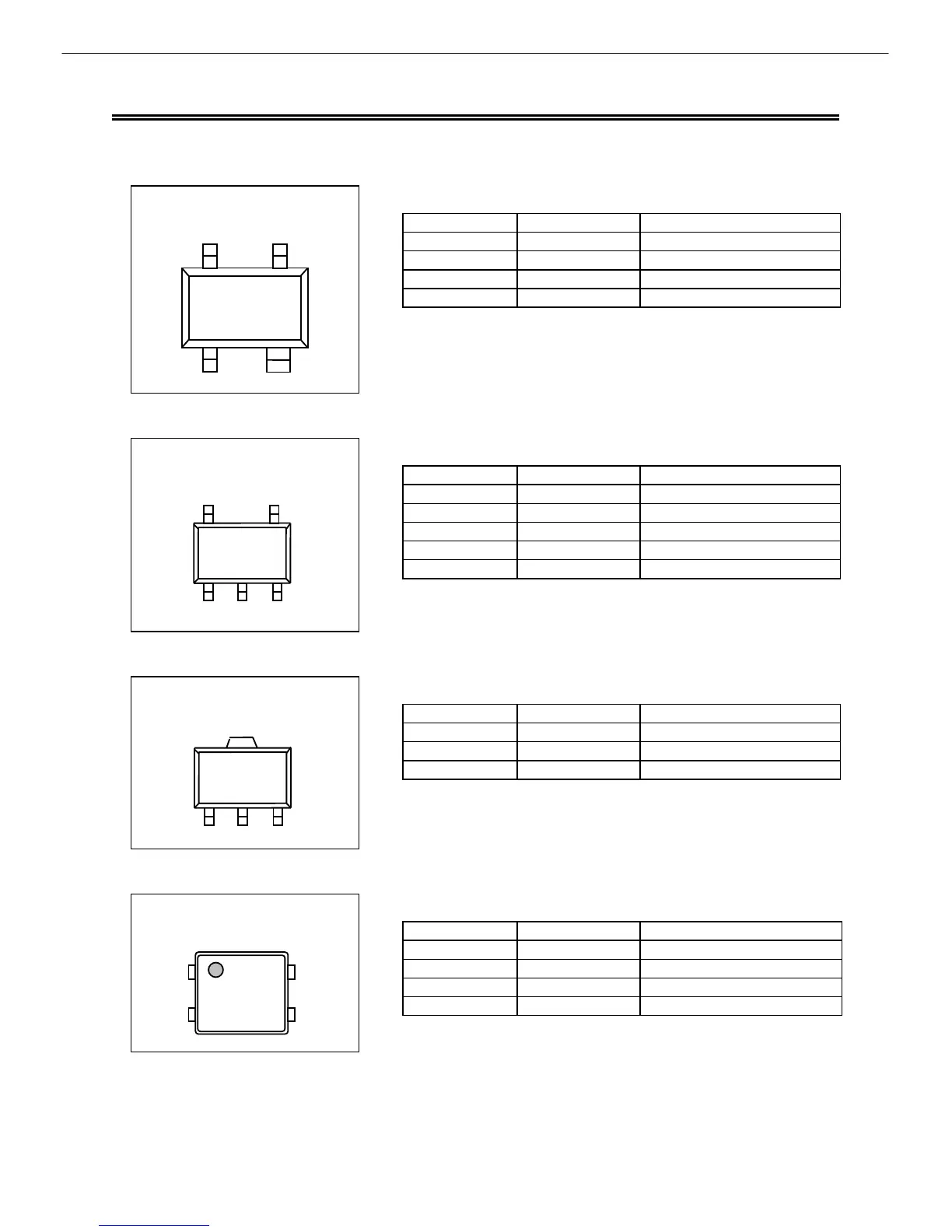

Pin Configurations
Table 7
Pin No. Pin name Pin description
1 OUT Voltage detection output pin
2 VDD Voltage input pin
3 NC
*1
No connection
4 VSS GND pin
4 3
1
2
SC-82AB
Top view
*1. The NC pin is electrically open.
The NC pin can be connected to VDD or VSS.
Figure 4
Table 8
Pin No. Pin name Pin description
1 OUT Voltage detection output pin
2 VDD Voltage input pin
3 VSS GND pin
4 NC
*1
No connection
5 NC
*1
No connection
SOT-23-5
Top view
5
4
3
2
1
*1. The NC pin is electrically open.
The NC pin can be connected to VDD or VSS.
Figure 5
Table 9
Pin No. Pin name Pin description
1 OUT Voltage detection output pin
2 VDD Voltage input pin
3 VSS GND pin
SOT-89-3
Top view
3
2
1
Figure 6
Table10
Pin No. Pin name Pin description
1 OUT Voltage detection output pin
2 VSS GND pin
3 NC
*1
No connection
4 VDD Voltage input pin
SNT-4A
Top view
1
4
2 3
*1. The NC pin is electrically open.
The NC pin can be connected to VDD or VSS.
Figure 7
