MU-3300

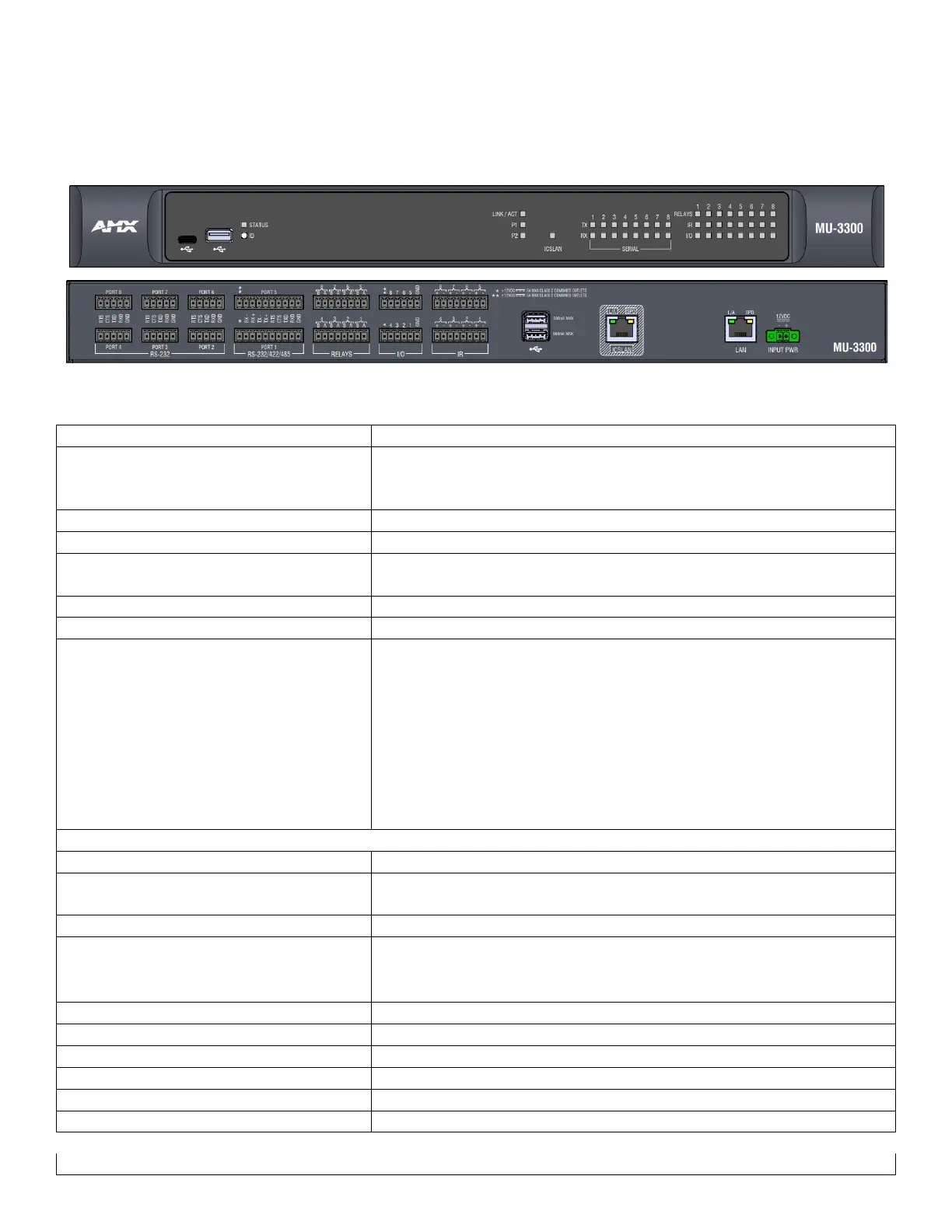

The MU-3300 (AMX-CCC033) has 4 GB of on-board DDR3 RAM, a commercial grade 8GB eMMC non-volatile memory
storage chip and an ICSLan control network. It is built for installation in an equipment rack. It features the MUSE
scripting engine which provides a variety of standard programming languages to create the business logic for the control
system. A complete list of device specifications is listed below.
MU-3300 Specifications
Dimensions
1 RU - 17.32" x 9.14" x 1.7" (440mm x 232.16mm x 43.3 mm)
Power Requirements
• DC input voltage (typical): 12 VDC
• DC current draw: 3A
• DC range, voltage: 9-18 VDC
Power Consumption
36 Watts Max
Mean Time Between Failure (MTBF)
100000 hours
Memory
4 GB DDR3 RAM
8 GB eMMC
Weight
6.26 lb (2.84kg)
Enclosure
Powder Coated Steel – Gray Pantone 10393C
Certifications
• ICES 003
• CE EN 55032
• AUS/NZ CISPR 32
• CE EN 55035
• CE EN 62368-1
• IEC 62368-1
• UL 62368-1
• VCCI CISPR 32
• RoHS / WEEE compliant
Front Panel Components
Status LED
RGB LED – see Status LED Detailed Description
ID button
ID pushbutton used during boot to revert to factory configuration or
factory firmware
USB-C Program Port
Connection to PC for virtual terminal for MU configuration
USB-A Host Port
Type-A USB host port
• USB Mass Storage – for external logging
•
FLIRC – IR Receiver for IR hand control input
LAN Link/Activity LED
Lit when connected to a network. Blinks upon network activity
P1 / P2 LED
Programmable LEDs available to control scripts
Serial TX / RX LED
Activity LEDs for each port in each direction. Blinks on activity.
IR TX LED
Activity LEDs for the IR/Serial port. Blinks on transmission.
I/O LED
LED indication of I/O Status: On for digital input or output active
Relay LED
LED indication of Relay state: On for engaged relay
