Harman crown DSi Series User Manual

DSi Series Power Amplifiers

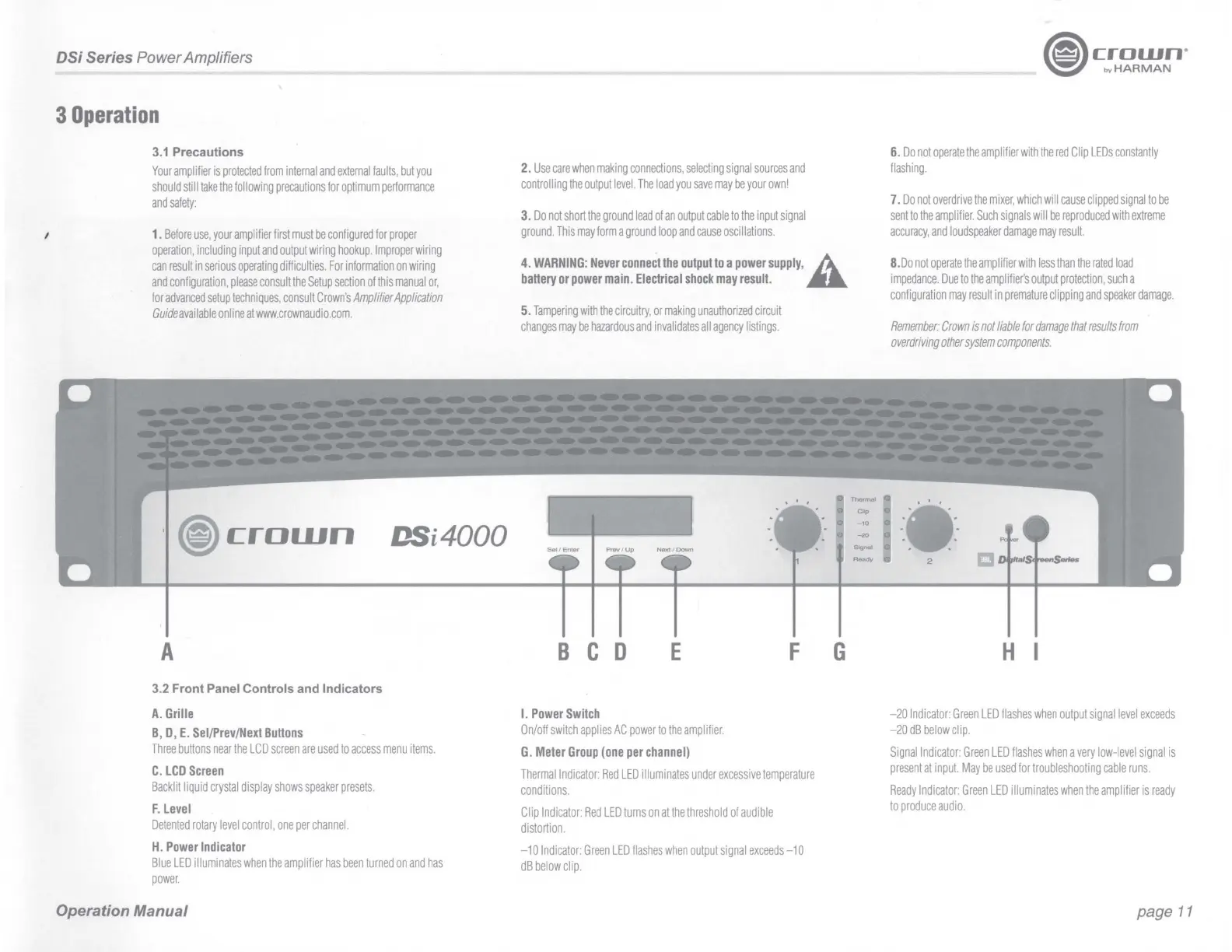

3 Operation
3.1 Precautions
Your amplifier is p rotec t ed from internal and external faults, but you
should still take the following precautions for optimum performance
and safety:
1. Before use, your amplifier first must be con f igu r ed for proper
operation, including input and output wiring hookup. Improper wiring
can result in serious operating difficult i es. F or information on wir i ng
and configuration, please consu lt the Setup section of this manual or,
for advanced setup techniques, consult Crown's Amplifier Application
Guide available on line at www.crownaudio.com.
A
3.2 Front Panel Controls and Indicators
A. Grille
B, D, E. Sel/Prev/Next Buttons
DSi4000
Three buttons near the LCD screen are used to access menu items.
C. LCD Screen
Backlit liquid crystal display shows speaker presets.
F. Level
Detented rotary level control, one per channel.
H. Power Indicator
Blue LED illuminates when the amplifier has been turned on and has
power.
Operation Manual
2. Use care when making connections, selecting signal sources and
controlling the output level. The load you save may be your own!
3. Do not short the ground lead of an output cable to the input signal
ground. This may form a ground loop and cause oscillations.
4. WARNING: Never connect the output to a power supply , A,
battery or power main. Electrical shock may result. ....
5. Tampering with the circuitry, or making unauthorized circuit
changes may be hazardous and i nvalidates all agency listings.
B C D E F
I. Power Switch
On/off switch applies AC power to the amplifier.
G. Meter Group (one per channel)
Thermal Indicator: Red LED illuminates under excessive temperature
conditions.
Clip Indicator: Red LED turns on at the threshold of audible
distortion.
-10 Indicator: Green LED flashes when output signal exceeds -10
dB below clip.
G
Thermal
Clip
-10
-20
Signal
Ready
~CTOUJn ·
'8' ov HARMAN
6. Do not operate the amplifier with the red Clip LEDs constantly
flashing
7. Do not overdrive the mixer, which will cause clipped signa l to be
sent to the amplifier. Such signals will be reproduced with extreme
accuracy, and loudspeaker damage may result
8. Do not operate the amplifier with less than the rated load
impedance. Due to the amplifier's output protection, such a
configuration may result in premature clipping and speaker damage.
Remember Crown is not liable for damage that results from
overdriving other system components.
•
. .
. .
. .
2
H
-20 Indicator: Green LED flashes when output signal level exceeds
-20 dB below clip.
Signal Indicator: Green LED flashes when a very low-level signal is
present at input May be used for troubleshooting cable runs.
Ready Indicator: Green LED illuminates when the amplifier is ready
to produce audio.
page 11
