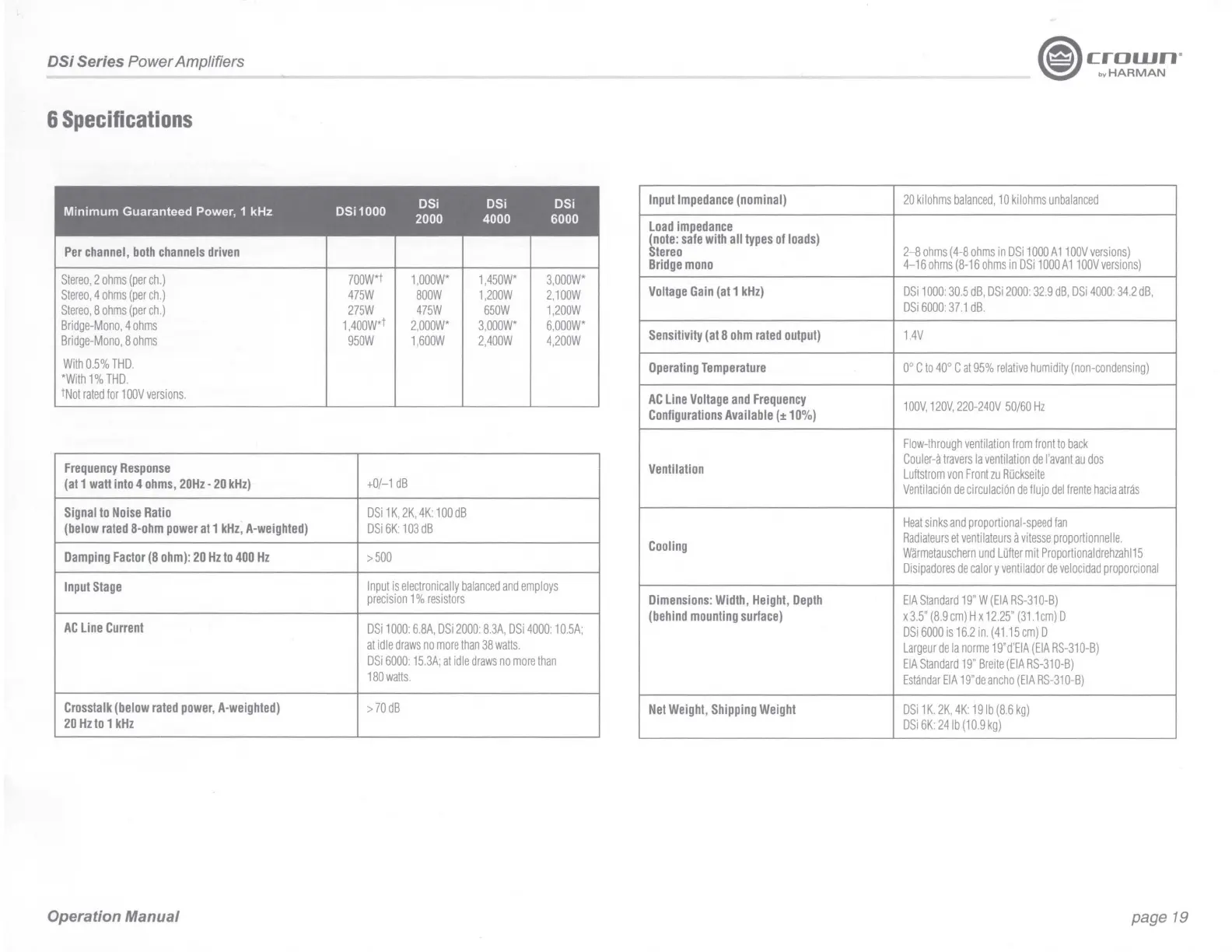

Harman crown DSi Series User Manual

DSi Series Power Amplifiers
~CTOtnn ·
'8' ov HARMAN
6 Specifications
Minimum Guaranteed Power, 1 kHz DSi1000
DSi
DSi DSi
2000 4000
6000
Input Impedance (nominal) 20 kilohms balanced, 10 kilohms unbalanced
Load impedance
Per channel , both channels driven
~note : safe with all types of loads)
tereo
2-8 ohms (4-8 ohms in DSi 1000 A1100V versions)
Bridge mono 4-16 ohms (8-16 ohms in DSi 1000 A1100V versions)
Stereo, 2 ohms (per ch.)
?OOW*t
1,000W* 1,450W* 3,000W*
Stereo, 4 ohms (per ch.) 475W 800W 1,200W 2,100W
Stereo, 8 ohms (per ch.)
275W 475W 650W 1,200W
Voltage Gain (at 1 kHz)
DSi 1000 30.5 dB, DSi 2000 32.9 dB, DSi 4000 34.2 dB,
DSi 6000 37. 1 dB.
Bridge-Mono, 4 ohms
1,4oow•t
2,000W* 3,000W* 6,000W*
Bridge-Mono, 8 ohms 950W 1,600W 2,400W 4,200W
Sensitivity (at 8 ohm rated output) 1.4V
With 0.5% THD.
*With 1 % THD.
Operating Temperature 0° C to 40° Cat 95% relative humidity (non-condensing)
tNot rated for 1 DOV versions.
AC Line Voltage and Frequency
1 DOV, 120V, 220-240V 50/60 Hz
Configurations Available (:1: 10%)
Flow-through ventilation from front to back
Frequency Response
(at 1 watt into 4 ohms , 20Hz - 20 kHz)
+0/-1 dB
Couler-a travers la ventilation de l'avant au dos
Ventilation
Luftstrom von Front zu R Ockseite
Ventilaci6n de circulaci6n de flujo del frente hacia atras
Signal to Noise Ratio DSi 1 K, 2K, 4K: 100 dB
(below rated 8-ohm power at 1 kHz, A-weighted)
DSi 6K: 103 dB
Damping Factor (8 ohm): 20 Hz to 400 Hz
>500
H eat sinks and proportional-speed fan
Cooling
Radiateurs et ventilateurs a vitesse proportionnelle.
Warmetauschern und L otter mit Proportionaldrehzahl15
Disipadores de calor y ventilador de velocidad proporcional
Input Stage
Input is electronically balanced and employs
precision 1 % resistors
Dimensions : Width , Height , Depth EI A Standard 19" W (EIA RS-310 - 8)
AC Line Current
D Si 1000: 6.8A, DSi 2000: 8.3A, DSi 4000: 10.5A;
(behind mounting surface) x 3.5" (8.9 cm) H x 12.25" (31.1cm) D
DSi 6000 is 16.2 in. (41. 15 cm) D
at id le draws no more than 38 watts.
DSi 6000: 15.3A; at idle draws no more than
Largeur de la norme 19"d'EIA (EIA RS-310-B)
EIA Standard 19" Breite (E IA RS-310-8)
1 80watts.
Estandar EIA 19"de ancho (EIA RS-310-B)
Crosstalk (below rated power , A-weighted)
> 70dB
Net Weight , Shipping Weight DSi 1 K. 2K, 4K: 19 lb (8.6 kg)
20 Hz to 1 kHz
DSi 6K: 24 lb (10.9 kg)
Operation Manual
page 19

Harman crown DSi Series Specifications

General

Brand	Harman
Model	crown DSi Series
Category	Amplifier
Language	English
