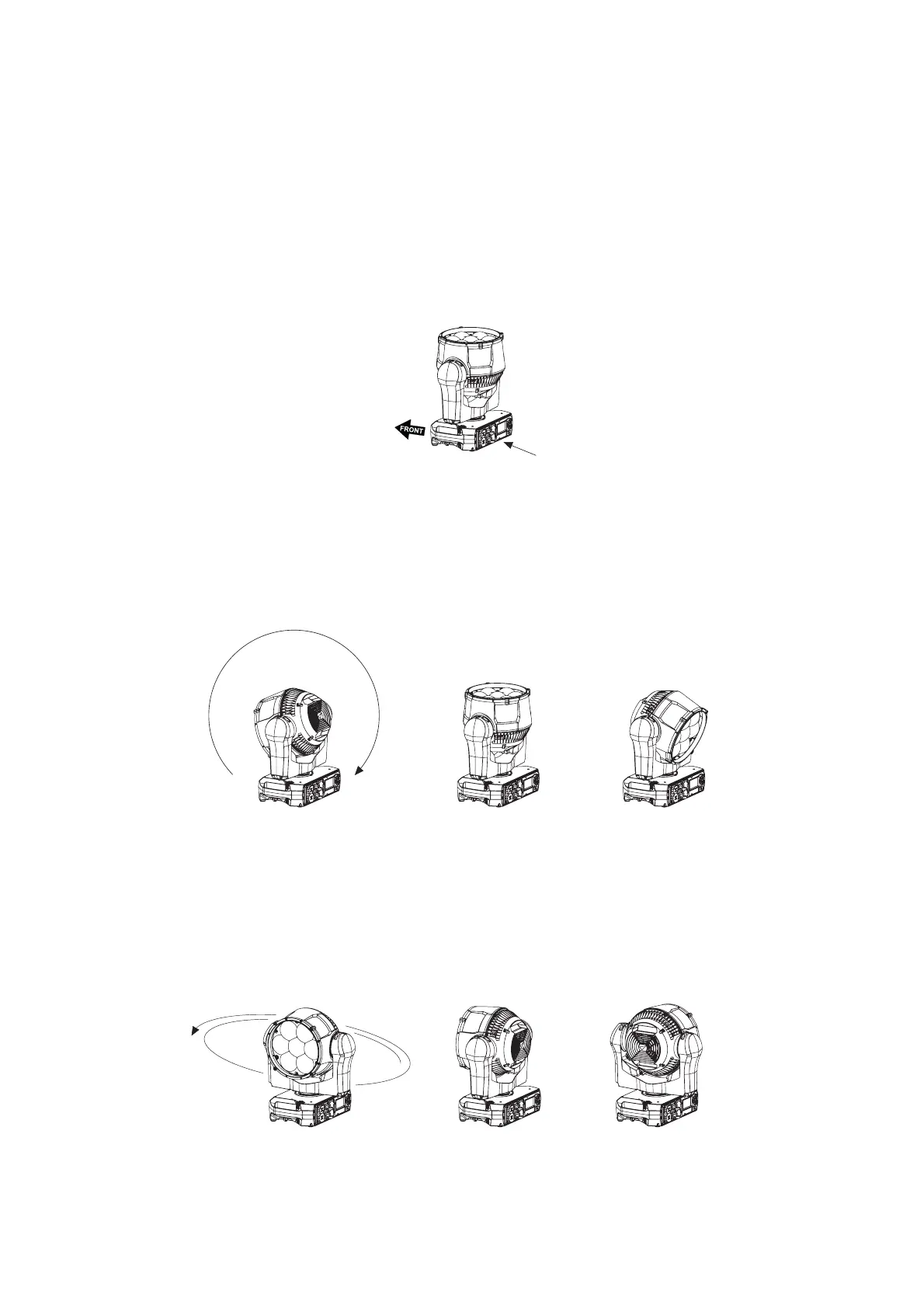

Control orientation reference
Pan and tilt control
Tilt = DMX 0
Pan = DMX 32768
DMX 65535DMX 0
Tilt range = 22°
Tilt = DMX 32768
Tilt = DMX 65535
Pan range = 540°
DMX 0
DMX
65535
Tilt = DMX 
Pan = DMX 0 Pan = DMX 32768 Pan = DMX 65535
Pan = DMX 32768 Pan = DMX 32768
Tilt = DMX  Tilt = DMX 
Home position / Front of fixture
Display
Power Input
DMX disconnected
