4. See Figure 26. Lift the base cover off the base.
5. See Figure 27. A blower is located close to the
control panel The blower is a push fit. You can lift it
out of its recess in the base to give better access
to the metal gauze filter. Note how the blower is
held in position in the base.
6. See Figure 28. The metal gauze air filter
(arrowed) is a push fit in front of the blower. Clean
the filter with a soft brush and vacuum cleaner or
compressed air, taking care to avoid damaging
the filter mesh. If the filter is greasy, you can clean
it in a household dishwasher at maximum 50° C
(122° F), short cycle recommended. Dry it
completely before reinstalling. The metal filter is
designed to be re-used, but replace it with a new
item if it is not in clean, undamaged condition after
cleaning.
7. Place the clean air filter into its location in the
base.
8. Place the blower back into its original position.
9. Reinstall the base cover, re-using the original six
screws to fasten it to the base.

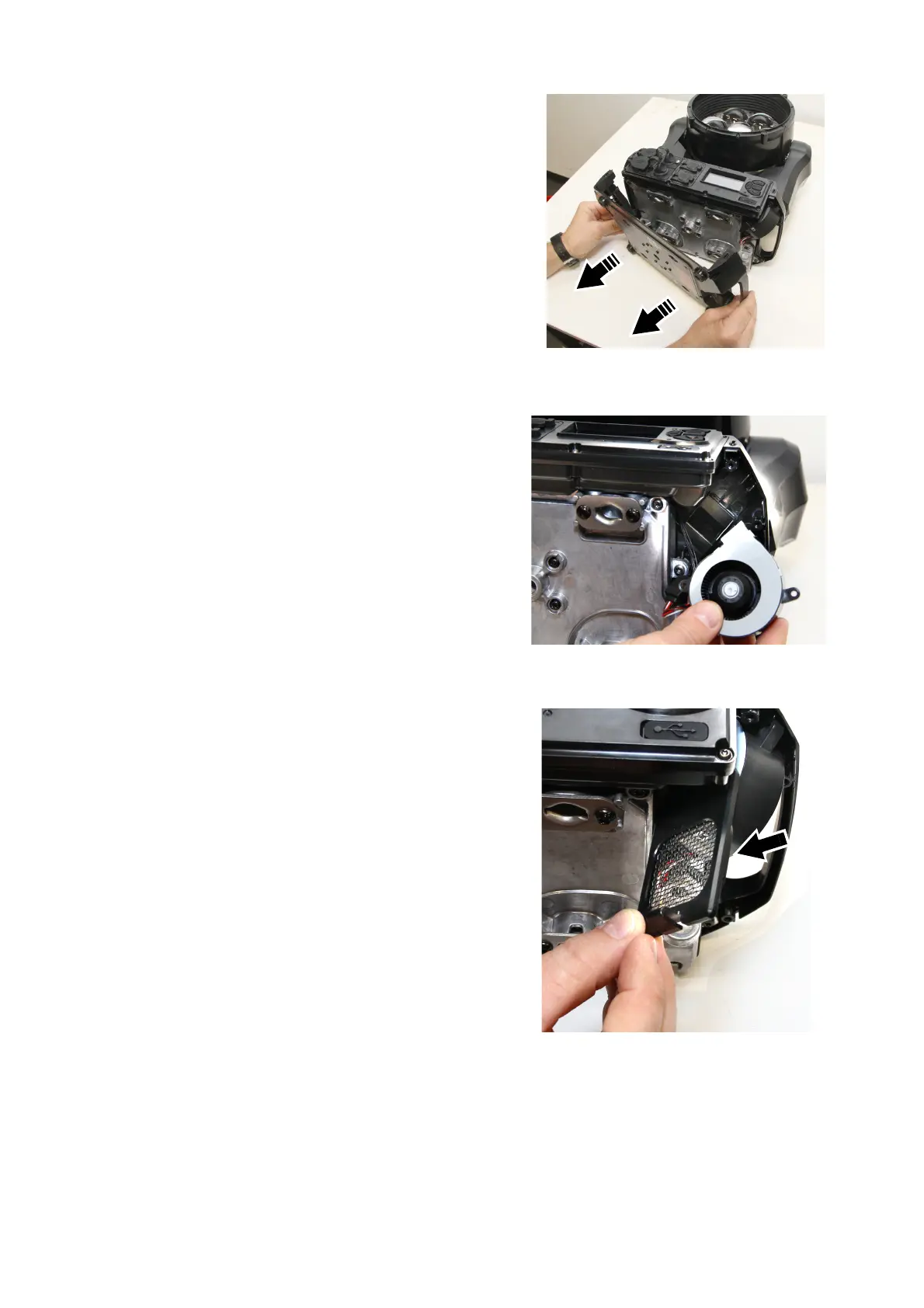

Figure 26: Removing the base cover
Figure 27: Releasing the blower
Figure 28: Releasing the filter
