Harman Studer D21m User Manual

Date printed: 24.01.12
24
D21m System
6.2 Analog I/O Cards

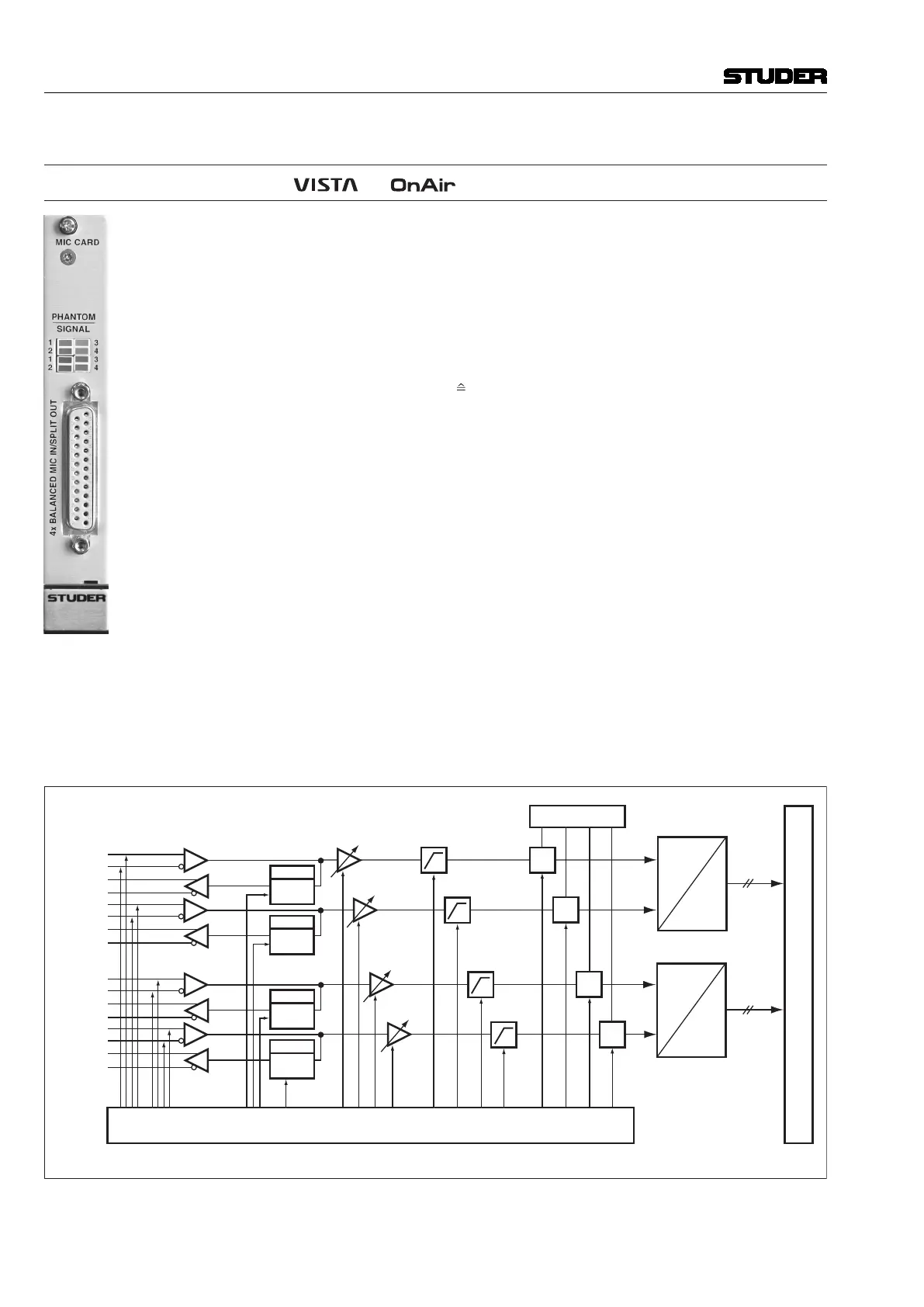

6.2.1 Mic/Line In Card ( and ) A949.0427
Four analog microphone/line inputs, electronically balanced, with 24 bit,
44.1/48/88.2/96 kHz delta-sigma A/D converters. Four analog split outputs,
electronically balanced. Green ‘signal present’ and yellow ‘phantom power’
indicators per channel. Mic/line sensitivity, gain setting in 1 dB steps, low-
cut filter, soft clipping and 48 V phantom power on/off are controlled by the
console software. Inputs and split outputs on a standard 25-pin D-type con-
nector (female).
Gain setting: 15 dBu 0 dB
FS
, unless otherwise noted.
Input sensitivity (for 0 dB
FS
) –60…+26 dBu
Input impedance 1.8 kΩ
Split out gain (input sensitivity –60…+3 dBu) 0 dB
(input sensitivity +4…+26 dBu) –20 dB
Split out impedance 50 Ω
Equivalent input noise (R
i
200 Ω, max. gain) –124 dBu
Crosstalk (1 kHz) < –110 dB
Frequency response (30 Hz-20 kHz) –0.2 dB
THD&N (1 kHz, –1 dB
FS
) < –97 dB
FS
(20 Hz-20 kHz, –30 dB
FS
) < –111 dB
FS
CMRR (30 Hz-20 kHz, all gain settings) > 55 dB
(1 kHz, input sensitivity –10 to +26 dBu for 0 dB
FS
) typ. 100 dB
Low-cut filter 75 Hz / 12 dB/oct.
Input delay (local) 38 samples (0.79 ms @ 48 kHz)
(remote) 45 samples (0.94 ms @ 48 kHz)
Current consumption (7 V) 0.2 A
(±15 V) 0.25 A
Operating temperature 0-40 °C
Backplane Connector
Mic/Line In 1
A
D
48 V Phantom Pwr
0 dB*
–20 dB*
A
D
0 dB*
–20 dB*
0 dB*
–20 dB*
0 dB*
–20 dB*
* 0 dB for input sensitivity –60...+3 dBu, –20 dB for input sensitivity +4...+26 dBu
Mic/Line In 2
Mic/Line In 3
Mic/Line In 4
Split out 1
Split out 2
Split out 3
Split out 4
Control Logic
Sensitivity
–60...+26 dBu
INS
INS
INS
INS
Insert Connector
Sensitivity Control
High-Pass Filter Insert Control
