Harman Studer D21m User Manual

Date printed: 24.01.12
28
D21m System

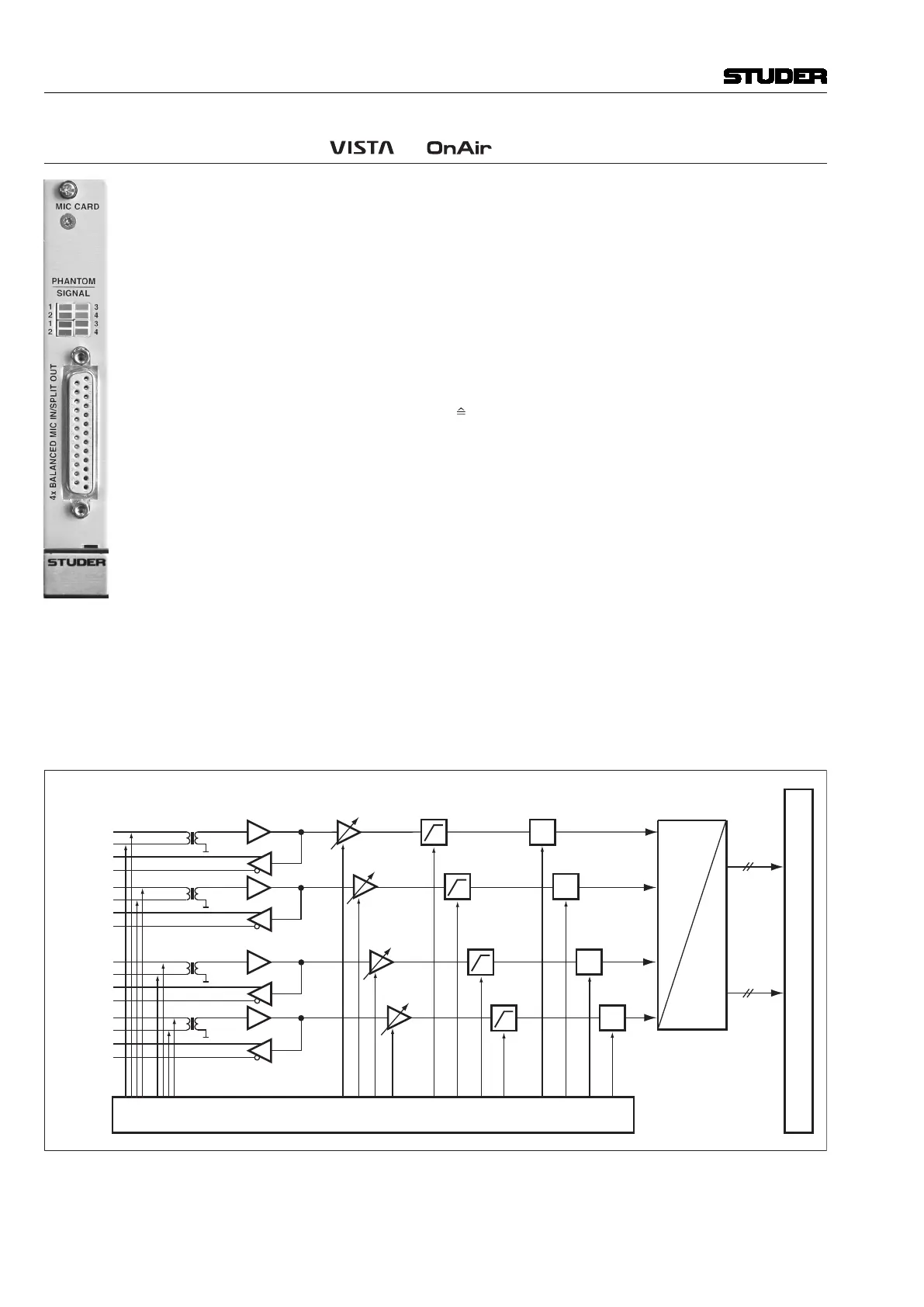

6.2.3 HD Mic/Line In Card ( and ) A949.0447
Four analog microphone/line inputs, transformer-balanced, with 24 bit,
44.1/48/88.2/96 kHz delta-sigma A/D converters. Four analog split outputs,
electronically balanced. Green ‘signal present’ and yellow ‘phantom power’
indicators per channel. Mic/line sensitivity, gain setting in 1 dB steps, low-
cut filter, soft clipping and 48 V phantom power on/off are controlled by the
console software. Inputs and split outputs on a standard 25-pin D-type con-
nector (female).
Notes As opposed to the Mic/Line Input card A949.0427, the gain of the split outputs
is always unity, i.e., 0 dB.
This card does not support the Analog Insert Card A949.0428.
Gain setting: 15 dBu
0 dB
FS
, unless otherwise noted.
Input sensitivity (for 0 dB
FS
) –60…+26 dBu
Input impedance 2.2 kΩ
Split out gain 0 dB
Split out impedance 100 Ω
Equivalent input noise (R
i
200 Ω, max. gain) –124 dBu
Crosstalk (1 kHz) < –110 dB
Frequency response (30 Hz-20 kHz) –0.2 dB
THD&N (1 kHz, input level –6 dBu) < –88 dB
(40 Hz-20 kHz, input level –30 dBu) < –100 dB
CMRR (30 Hz-20 kHz, all gain settings) > 60 dB
Low-cut filter 75 Hz, 12 dB/oct.
Input delay (local) 38 samples (0.79 ms @ 48 kHz)
(remote) 45 samples (0.94 ms @ 48 kHz)
Current consumption (7 V) 0.2 A
(±15 V) 0.25 A
Operating temperature 0-40 °C
Backplane Connector
A
D
48 V Phantom Pwr
Control Logic
Sensitivity
–60...+26 dBu
Soft
Clipping
High-Pass
Filter
Sensitivity Control
Filter Control Soft Clipping Control
Mic/Line In 1
Mic/Line In 2
Mic/Line In 3
Mic/Line In 4
Split out 1
Split out 2
Split out 3
Split out 4
