pg. 10

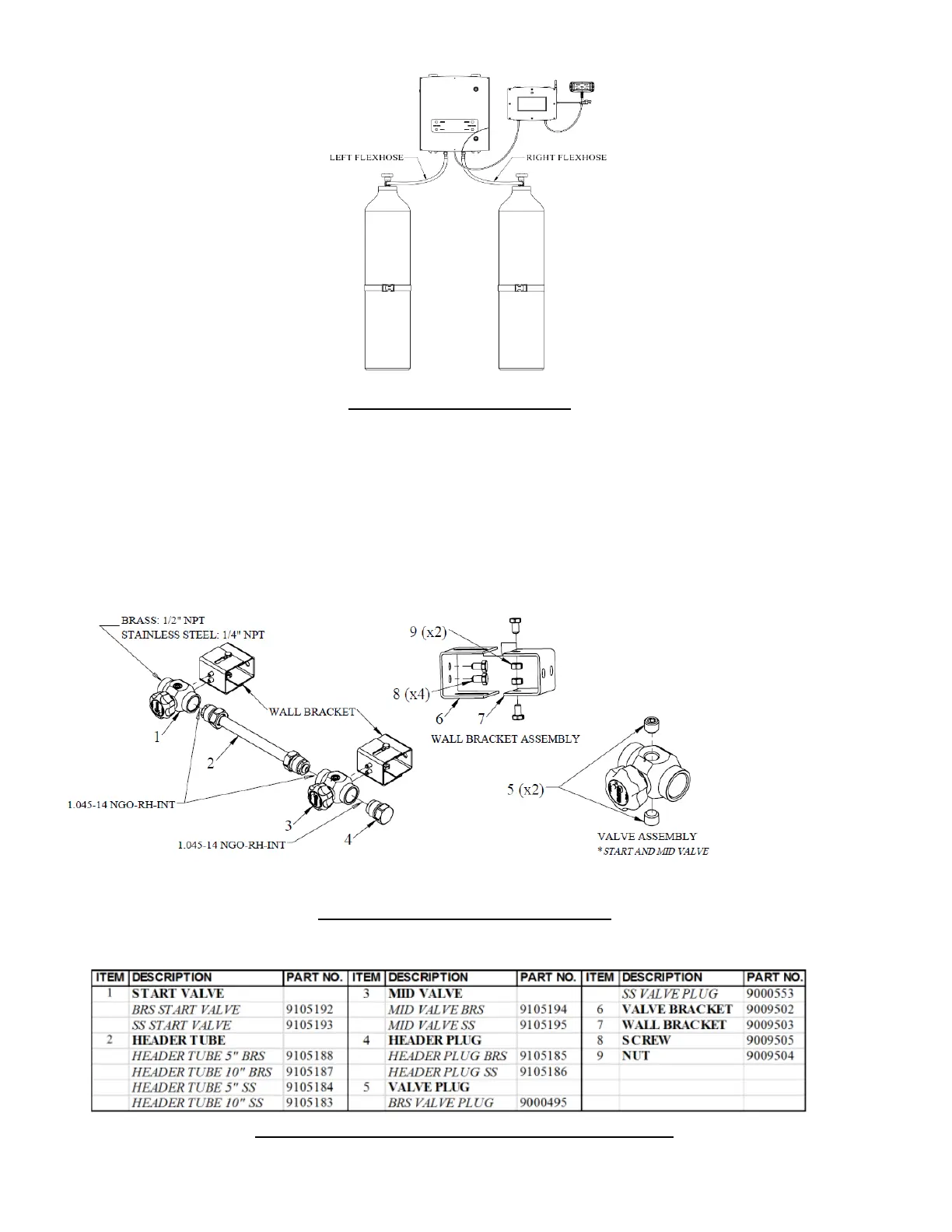

Figure 2 – Two Cylinder Setup
Manifold for more than two (2) cylinders
Harris uses a modular header system for attaching multiple cylinders to the DataSmart manifolds
(Ref. Figure 4). See Figure 3 for proper installation. The modular design allows greater flexibility
for expansion and/or re-configuration of your multi-cylinder gas manifold. Below are detailed
instructions on how to install the modular headers.
Figure 3 – Modular Manifold Installation
Table 1 – Component Part Legend for Modular Headers
