pg. 12

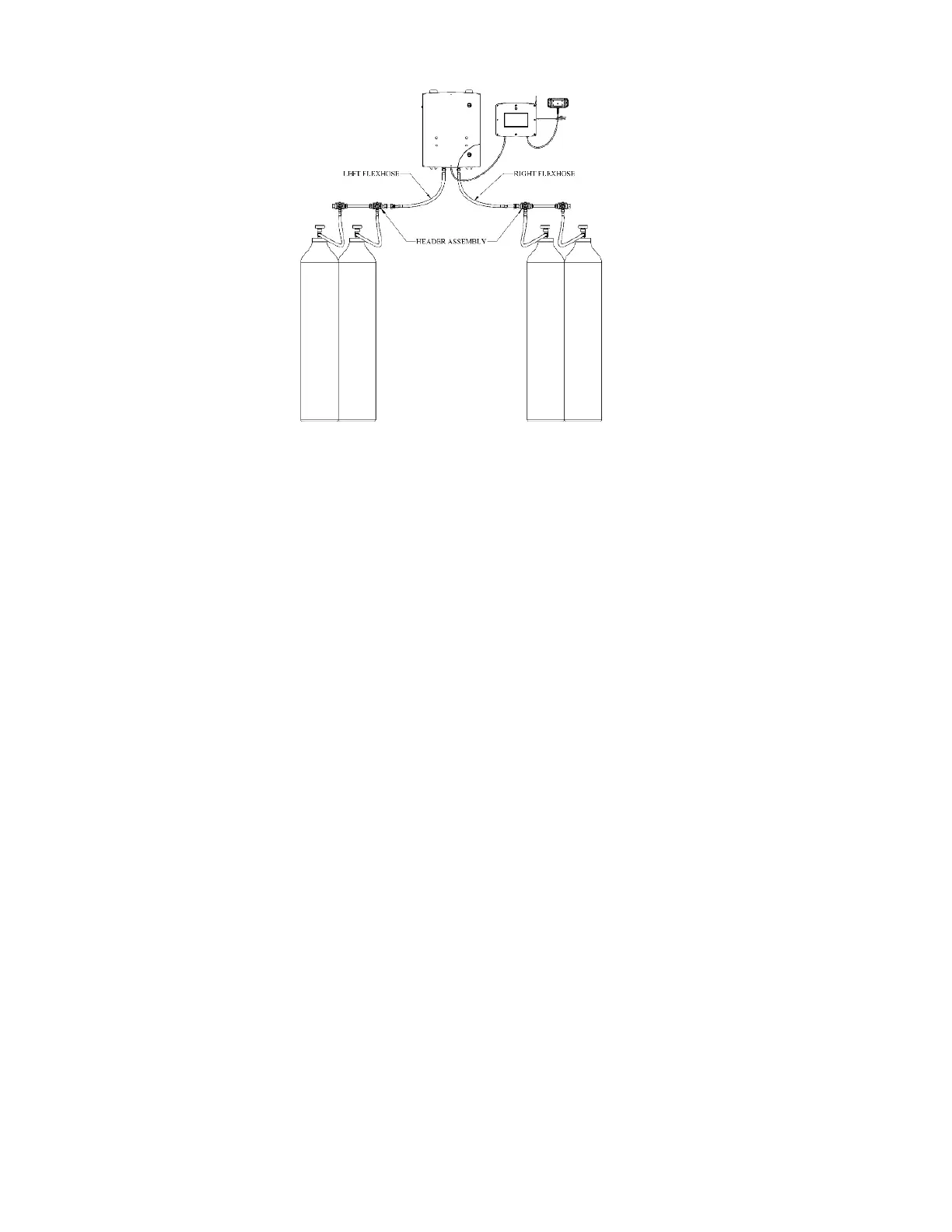

Figure 4 – Multi-Cylinder Setup
PRESSURIZING THE DATASMART MANIFOLD SYSTEM
1. The DataSmart manifold should be fully assembled with cylinders, headers and all
flexible hoses attached and torqued to the proper specs.
2. The outlet port on the Mechanical Enclosure should be plugged, or, if utilizing an outlet
isolation valve, make sure it is in a closed position. If this is not possible, turn the
adjusting screw on the outlet regulator counter-clockwise until it turns freely. This will
insure that there is no outlet pressure when initially pressurizing the system. The outlet
regulator adjusting screw can be accessed from outside the Mechanical Enclosure by
removing the plug from the right side top.
3. Once this is complete, S-L-O-W-L-Y pressurize the system by turning on cylinder
valves and/or header valves for both the right and left sides. Check each joint for
leaks with an approved leak detection solution or warm soapy water. Increase torque
slightly, at each joint, if needed, to eliminate leaks.
4. Do not torque any connection to greater than 60 ft-lbs. If leaks cannot be eliminated,
contact your distributor or Harris Products Group Technical Service.
DATASMART OPERATION INSTRUCTIONS
1. Connecting to Power
a. Connect cable from Mechanical Enclosure to the Touchscreen Control Box
b. If included, connect the A/V Remote Alarm Box to the Touchscreen Control Box
c. Connect the Touchscreen Control Box to a 120VAC 50/60Hz power source.
CAUTION: Connection to an incorrect voltage can cause serious damage to the product and will
void the warranty.
