INSTALLATION INSTRUCTIONS
REFERENCE MATERIAL
The following safety bulletins/standards are available on the Compressed Gas Association’s website
(www.cganet.com) or at (703) 412-0900:
• SB-2 Oxygen Deficient Atmospheres
• SB-10 Correct Labeling & Proper Fittings On Cylinders/Containers
• SB-15 Avoiding Hazards In Confined Work Spaces During Maintenance, Construction And Similar Activities
• SB-19 Potential Valve Thread & Cylinder Thread Mismatch
• E-11 Compressed Gas Association Standard for Cylinder Discharging Manifolds for Pressures Up To 3000
PSI

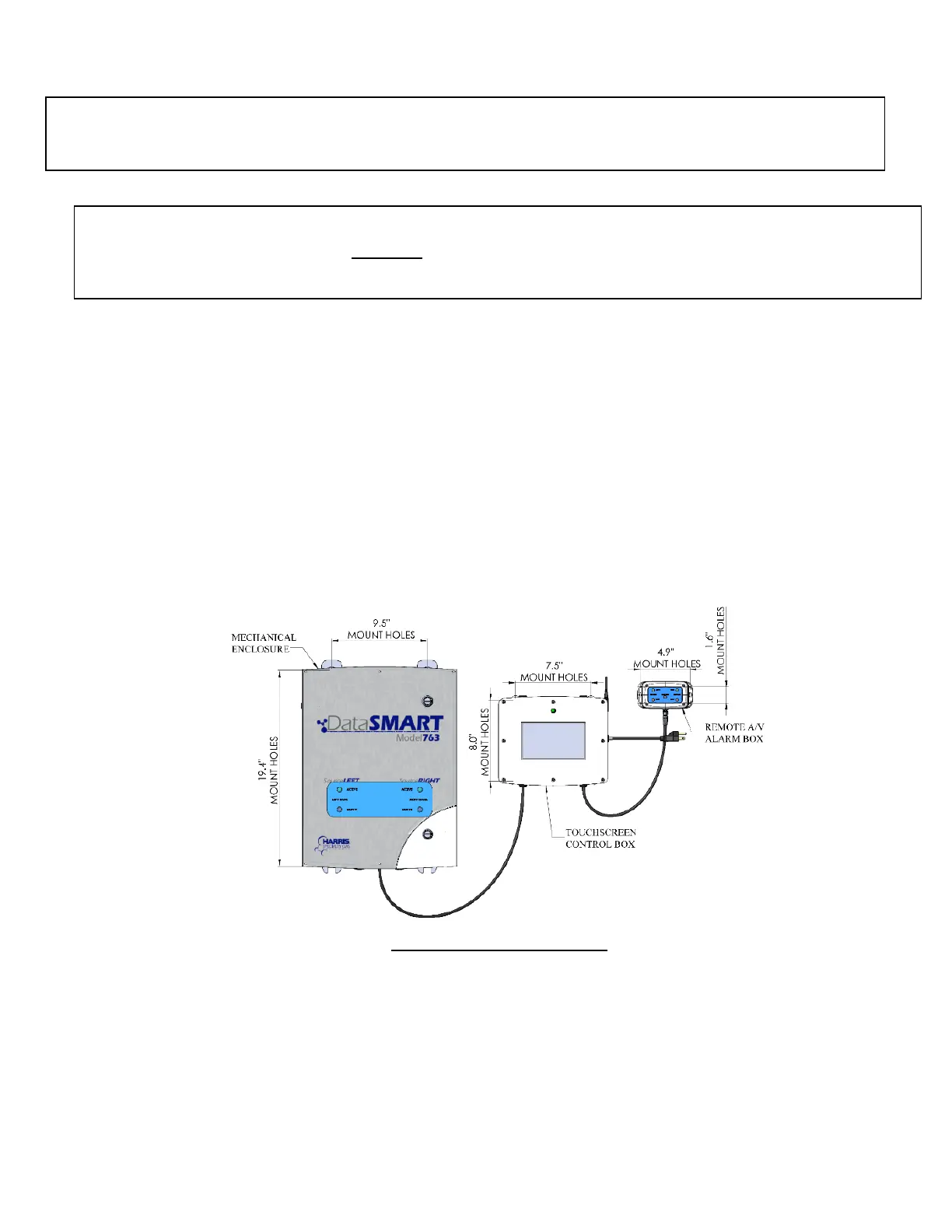

Figure 1 – Mounting Dimensions
The above Figure 1 shows a typical installation with critical mounting dimensions. The Touchscreen
Control Box can be mounted in close proximity to the Mechanical Enclosure. The Remote A/V Alarm
Box can be mounted up to 200 feet away with the proper cable. Contact Harris Technical Service for
more information.
WARNING
It is important that when installing this manifold system that no oil or contaminants come in contact with any manifold parts. If parts
have been contaminated during shipment, do not use and contact Harris Technical Service (800-241-0804, Option 2) for
assistance.
Caution
Read and understand installation instructions thoroughly prior to using this system. If you have any questions about the
installation, contact Harris Technical Service (800-241-0804, Option 2) for assistance.
