pg. 16

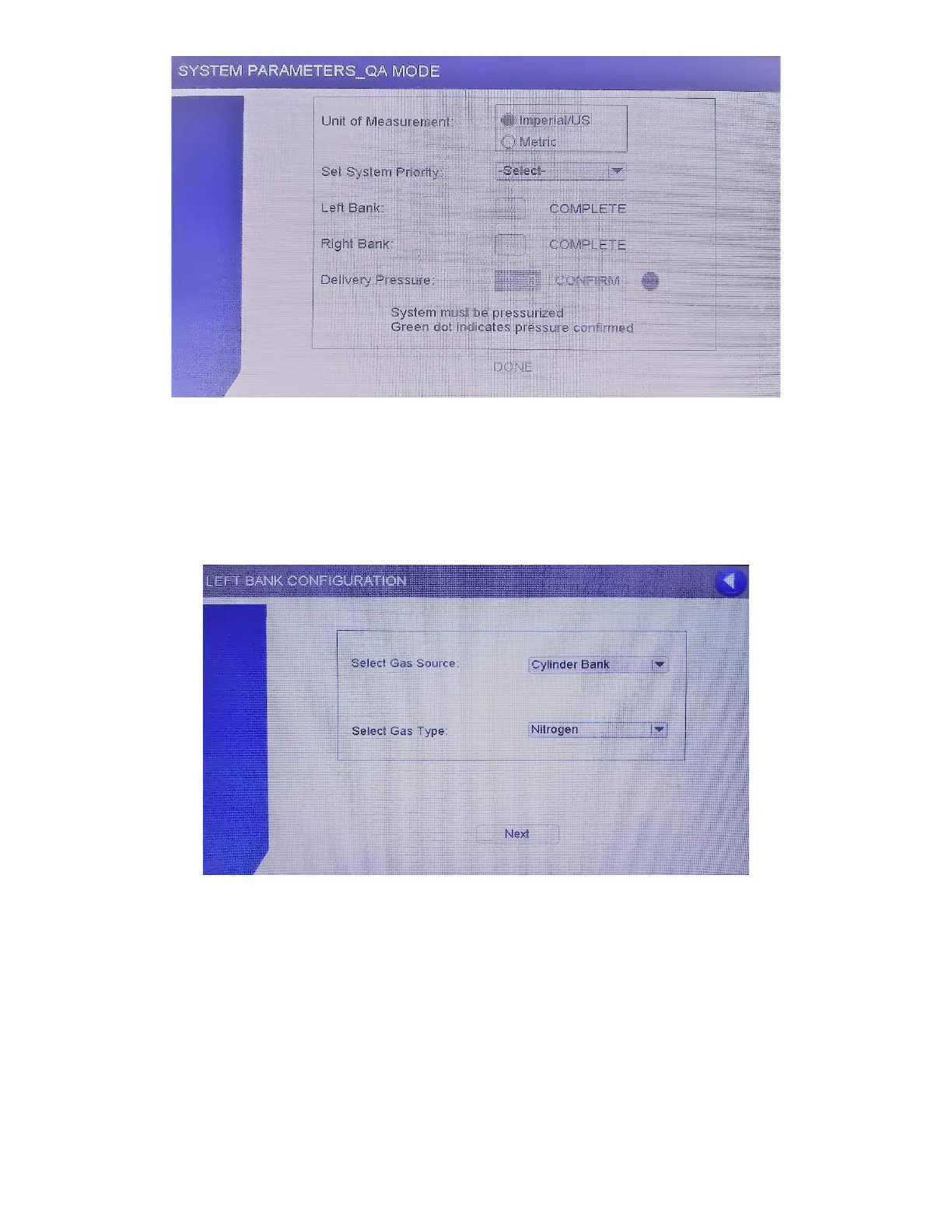

Figure 9 – Units and System Priority
d. The following parameters must be selected and programmed on initial setup:
1. Choose Pressure Cylinder, Liquid Dewar, Cylinder Bank or Bulk system from the
drop-down menu for both right and left sides.
Figure 10 – Bank Configuration
2. Select cylinder relief valve pressure for each liquid dewar
3. Program desired switchover pressure for each side. Switchover pressure can be
adjusted up or down in 12 psig increments.
