30

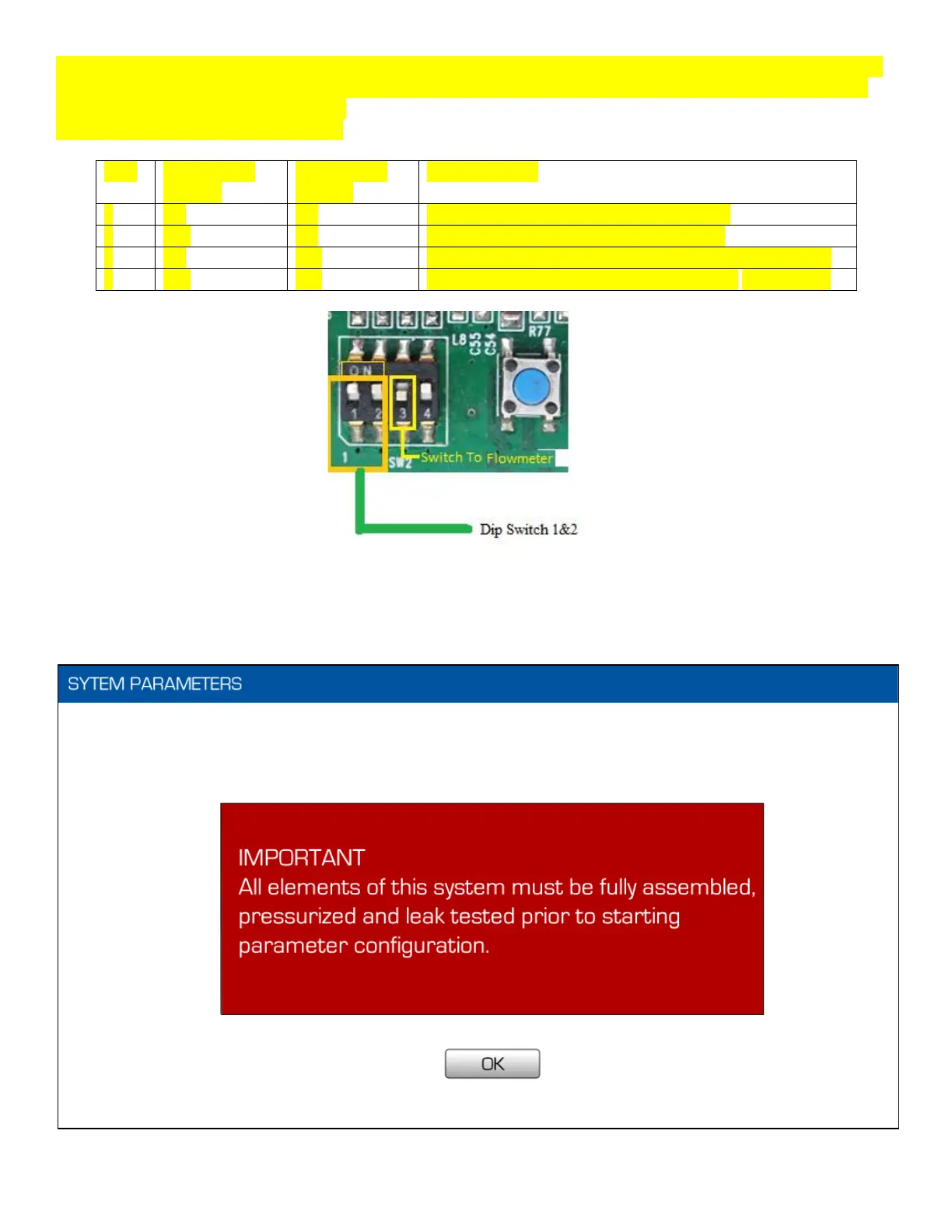

Note: The Telemetry configuration is setable through the Dip switch connected on the Control board and based on the
Dip switch configuration setting the Telemetry type will be automaticall available under the dropdown. User have to
verify the telemetry type and press enter.
Dip Switch Configuration in below table:
SlNo
Dip Switch 1
Position
Dip Switch 2
Position
Telemetry Type
1
ON
ON
AMS with integration Solution with Gas Box
2
OFF
ON
AMS with integrated Solution (Standalone)
3
ON
OFF
AMS Telemetry with End user current sensor (Standalone)
4
OFF
OFF
AMS Telemetry with End user voltage sensor (Standalone)
The final step is to configure the operation mode. The user must accept the disclaimer by pressing OK before proceeding
to configuration.
