Revision C • 10/07
HARRIS CORPORATION
2-1
2
1.5"
[38]
1.5"
[38]
22"
[559]
2.50"
[64]
2.75"
[70]
COUNTERTOP
12.5"
[317.5]
1.75"
[44]
9.75"
[248]
Dimension Table
Mainframe A B C
RMXdigital-4 14.6" [371] 13.3" [337] 13.5" [343]
RMXdigital-12 27.4" [696] 26.1" [662] 26.25" [668]
RMXdigital-20 40.2" [1021] 38.9" [987] 39.25" [993]
RMXdigital-28 53.0" [1346] 51.7" [1312] 52.0" [1320]
Millimeter dimensions in brackets. All dimensional tolerances are: +¼"
[6.4], -0" [0.0]. Typical setback from countertop edge to the front of
the console: 6" [152] to 12" [305].
The RMX
digital
mainframe “drops into”
a cutout (as shown below) in the furniture coun-
tertop.
The console card cage, which extends below the
console, can be positioned to fall within the cabi-
net or above a cable tray.
The low-profile Reflective Display (footprint:
17.25" x 5.25") is only 5” tall. It can set behind
the frame or on top of the rear cover. If the op-
tional Tall Console Display is used, it stands on
the countertop behind the frame (its footprint: 14"
x 6", and it stands 11” tall).
Locate a 3" cable grommet near the display to
route the 6-foot cable harness thru the countertop
in order to plug into the back of the frame.
The RMX
digital
console shipment contains:
• The 12, 20 or 28 input mainframe with a Moni-
tor Control panel, a KSU card, and the DSP
cards installed with the optional items ordered
(Universal Dual Fader Panels, Blank Panels,
8-Input Expansion Cards)
• 2 RU rackmount 48-volt power supply
• Installation and tool kits (AMP MOD IV con-
nector housings and receptacle contacts, crimp
and contact removal tools, hex driver, backup
batteries, removable clear lenses and clear in-
sert sheet), two 48 VDC power cables, and CD-
ROM
• Stand alone Console Display with integral cable
and power supply
Installation

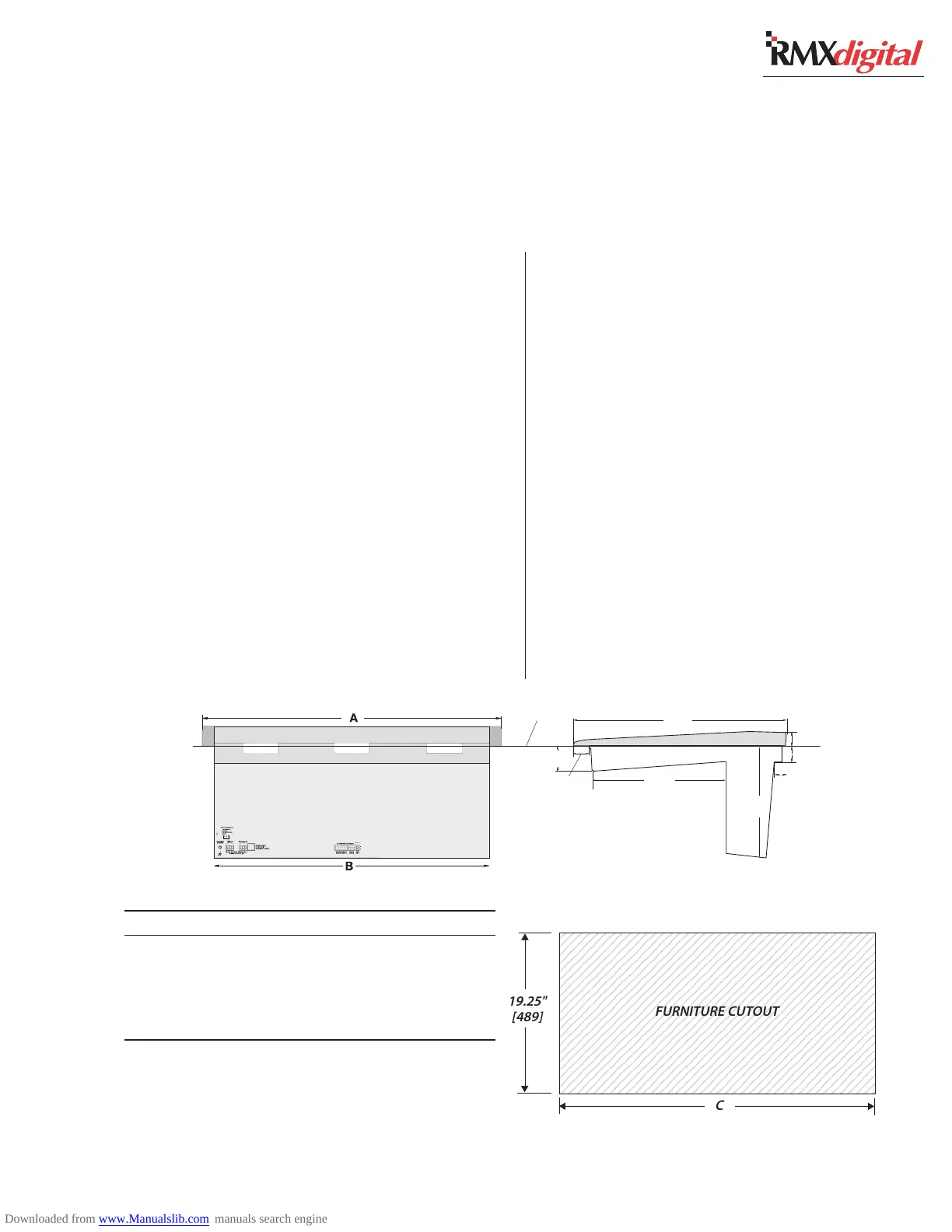

Console, back view
Console, side view, with dimensions
123456789012345678901234567890121234567
1
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
2345678901234567890123456789012123456
7
123456789012345678901234567890121234567
FURNITURE CUTOUT
C
19.25"
[489]
