6
1. Fuse holder - Holds a 5A/250V fuse for 115 volt operation or a 2.5A/250V fuse for
230 volt operation
2. AC input - Connect the supplied standard 3-pin IEC plug here.
3. Send Pre - Use this 1/4" unbalanced jack to send signal to a professional outboard
effects processor.* Output level is approximately 0 dB to +4 dB and is pre-EQ and
pre-Shape but post-Volume control.
4. Return Pre - Use this 1/4" unbalanced jack to return signal from a professional
outboard effects processor.* Signal is returned before the EQ and Shape controls but
after the Volume control.
5. Send Post - Use this 1/4" unbalanced jack to send signal to a professional outboard
effects processor.* Output level is approximately 0 dB to +4 dB and is post-EQ,
post-Shape, and post-Volume control.
6. Return Post- Use this 1/4" unbalanced jack to return signal from a professional
outboard effects processor.* Signal is returned after the EQ, Shape and Volume controls.
7. Line Out - This standard unbalanced 1/4" jack provides a line-level (+4 dBu) post-EQ,
post-Shape and post-Volume output signal from the HA3000. Youll usually use this to
connect the HA3000 to additional slave amplifiers.
8. Preamp Out - This standard balanced XLR jack provides a -20 dBu level post-EQ,
post-Shape and post-Volume output signal from the HA3000. This is generally used to
send the sound of the HA3000 (that is, the equalized, shaped signal) to a PA system or
recording mixing console.
9. Ground Lift switch - Used to reduce any hum or buzz that may be present in the
Direct Out and Preamp Out signals (see #6 on page 3 and #8 above). When set to the
right, Float position, chassis ground is removed from XLR pin 1.
10. Speaker outputs - Connect any 4, 8, or 16 ohm bass cabinet(s) to these standard
unbalanced 1/4" jacks. WARNING: Because of the high power levels and low
frequency content of the signal generated by the HA3000, use only appropriately
rated speaker cabinets (at least 300 watts at 4 ohms) that are specifically designed
for bass instruments. The minimum impedance of all connected speakers must not
go below 4 ohms (i.e., don’t plug in two 4-ohm cabinets!).
11. Fan
- This variable speed fan provides vital cooling to your HA3000 (the hotter the
amp gets, the faster the fan blows!). Make sure that it is kept free of all obstructions and
that cool, fresh air is accessible at all times. Also, try to ensure that the HA3000 is used in
a dust-free environment.
* In-line effects (such as footpedals) intended for low signal levels should be placed
between your bass and the front panel HA3000 Input and not connected with the rear
panel Send/Return jacks.

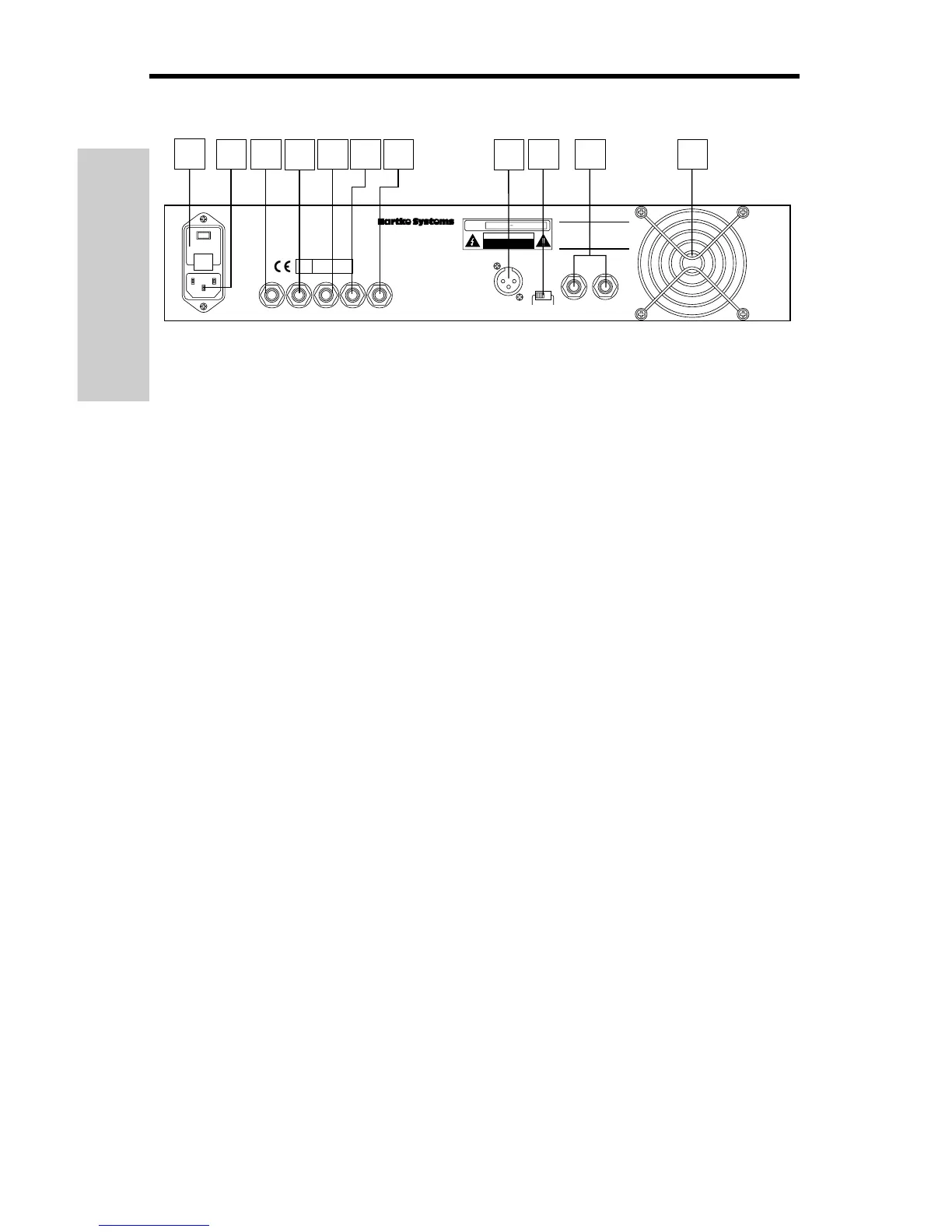

Guided Tour - HA3000 Rear Panel
~AC INPUT
115/230V, 50/60Hz
FRAME FLOAT
GROUND
<100 20dBu
BALANCED
PRE AMP OUT
FUSE
7A/250V(115V)
3.5A/250V(230V)
TO PREVENT SHOCK,DO NOT OPEN. NO USER SERVICE-
ABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL. TO PREVENT FIRE OR SHOCK
HAZARD. DO NOT EXPOSE TO RAIN OR MOISTURE.
CAUTION; REPLACE WITH THE
SAME TYPE FUSE AS INDICATED.
UTILISER UN FUSIBLE DE RECHANGE
DE MEME TYPE.
CAUTION
S / N
Distributed Exclusively by
Samson Technologies Corp.
MODEL HA3000 (300 WATTS)
8 = 180 WATTS
4 = 300 WATTS
POWER
RATING
115V/230V 50HZ/60Hz 500W
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AVIS;
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE.
SPEAKER OUTPUT
300WATT RMS/4ohms
CHASSIS GROUND
LIFT REMOVES
CHASSIS GROUND
FROM XLR PIN1
MADE IN KOREA
SEND PRE
<50 0dBu
RETURN PRE
10K 0dBu
SEND POST
<50 0dBu
RETURN POST
10K 0dBu
LINE OUT
<50 +4dBu
4
8
2
3
5
1
6
7
9
10
11
ENGLISH
