Hasselblad 503CX User Manual

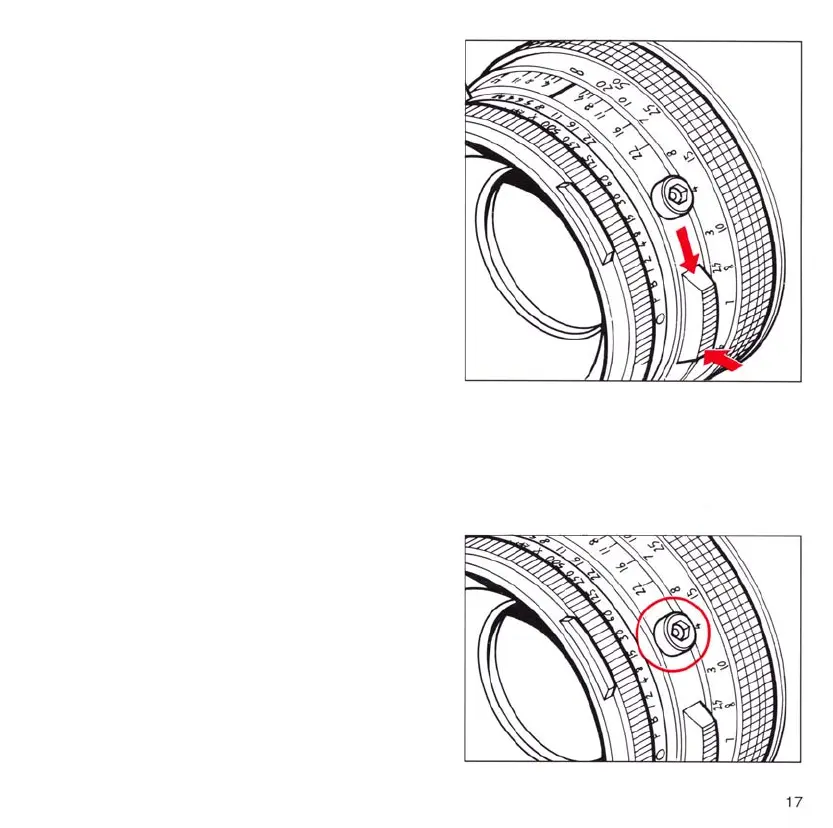

Checking Depth of Field
Toallowyoutocheckthedepthofeldintheimageon
the focusing screen, the diaphragm can be stopped
down to the preset aperture simply by sliding the man-
ual preview button downwards until it locks into the
preview position.
To release the button, and reopen the diaphragm,
press in the lower section of the button.
Flash Synchronization
The Hasselblad 503cx and 500C/M use lenses from
the Hasselblad CF series. These lenses have built-in
leaf shutters with speeds from 1 to 1/5005. Flash syn-
chronization occurs at full shutter opening via the PC
ashterminal.
Electronicashunitscanbeusedatallshutterspeeds,
1 - 1/500.

Hasselblad 503CX Specifications

General

Camera Type	Medium format SLR
Image Size	6x6 cm
Focus	Manual
Film Format	120/220
Lens Mount	Hasselblad V-system
Shutter Speed	1/500 sec to 1 sec, Bulb
Viewfinder	Interchangeable waist-level or prism
Shutter Type	Focal-plane shutter
