Hasselblad 503CX User Manual

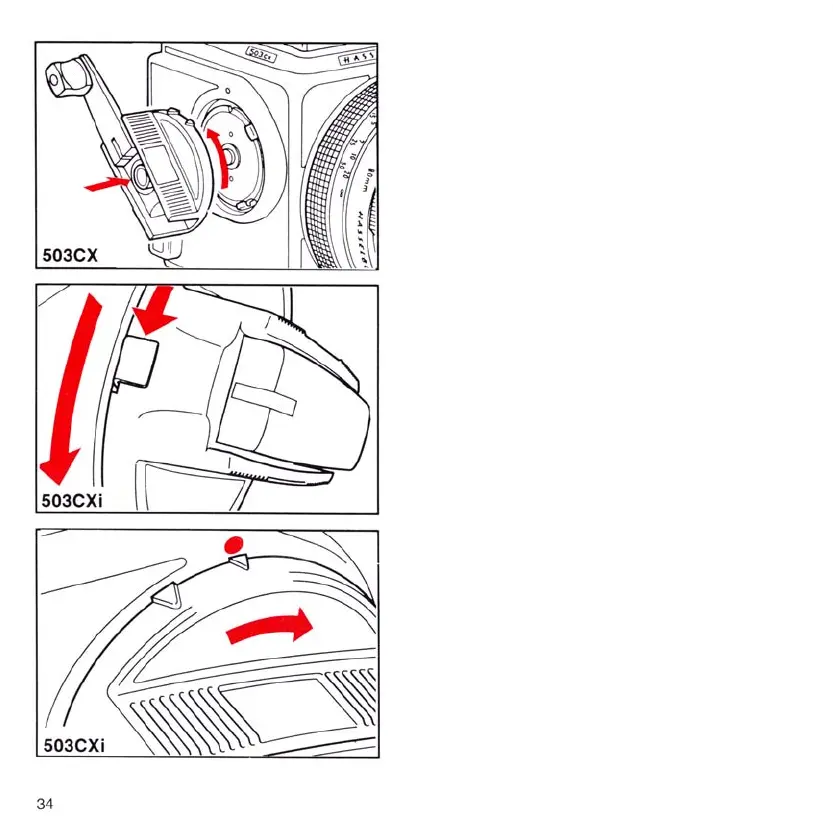

Removing the Winding Crank
Push the catch lever downwards while rotating the
crank counter-clockwise. Then pull the crank straight
out from the shaft.
Attaching the Winding Crank
Attach the crank to the shaft, aligning the smaller tri-
angularindexmarkagainstthereddotjustabovethe
mount. Keep the crank pushed against the camera
while turning it clockwise until the larger triangular
mark is aligned with the red dot.
Winding Crank
The 503CXi is equipped with an upgraded winding
crank to enable the use of the Winder CW.
The winding crank of 503CX and earlier cameras is at-
tached and removed as described on page 10.

Hasselblad 503CX Specifications

General

Camera Type	Medium format SLR
Image Size	6x6 cm
Focus	Manual
Film Format	120/220
Lens Mount	Hasselblad V-system
Shutter Speed	1/500 sec to 1 sec, Bulb
Viewfinder	Interchangeable waist-level or prism
Shutter Type	Focal-plane shutter
