HATO 200 - Page 13

13

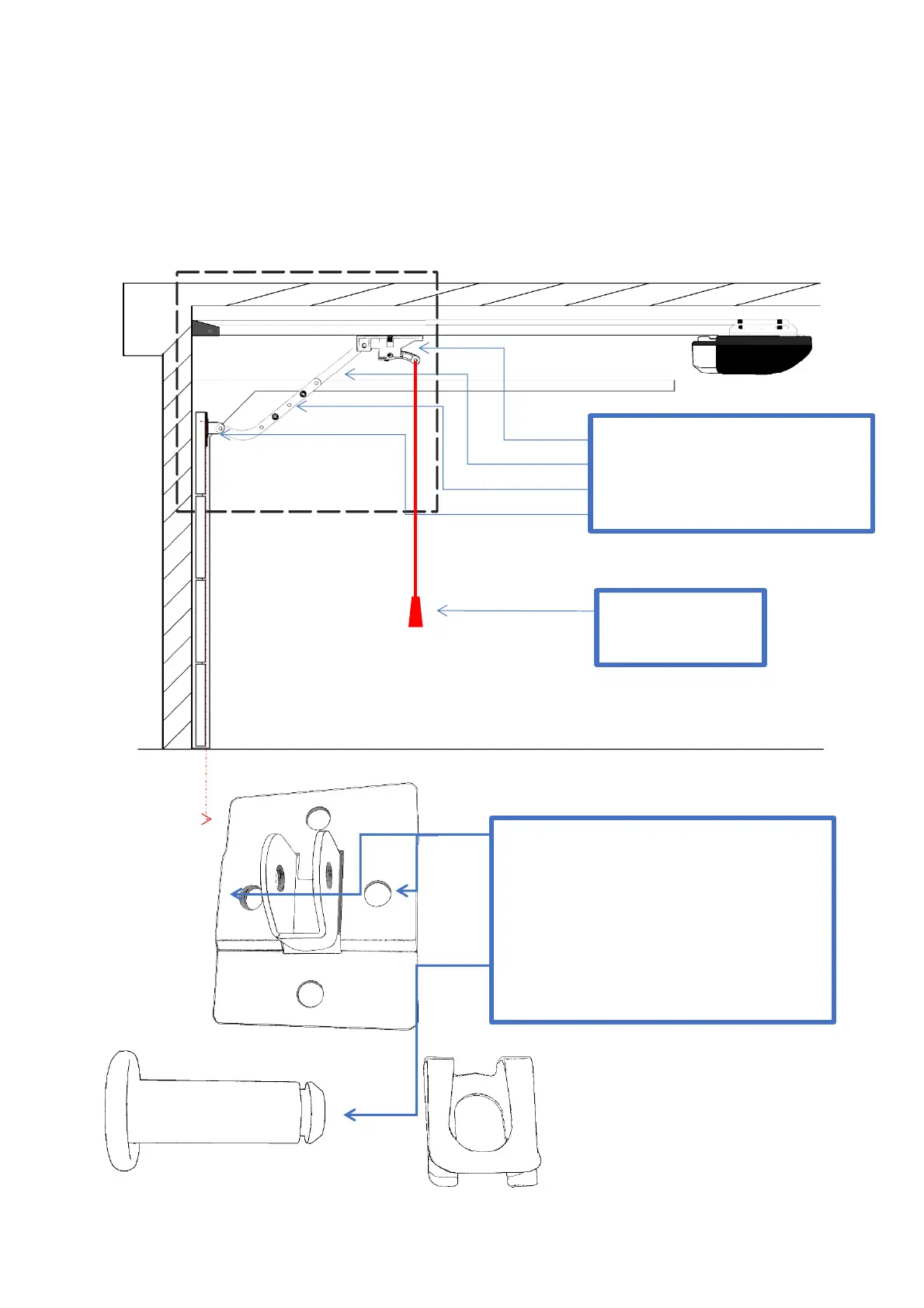

Step 6.
Attach the door bracket to the top of the door with M8 x 55mm bolts and M8 bolt nuts. Connect the
L arm to the door bracket with the pin and the split pin. Connect the straight arm to the shuttle with
the pin and split pin, then connect the L arm to the straight two M8 x 16mm bolts and nuts, making
sure the door can move freely..
DEBITEUSE - DISENGAGEMENT
STRAIGHT ARM (M6x12 x2 screw)
BROKEN ARM (M6 x2 nut)
DOOR BRACKET
MANUAL
OPERATION
DOOR SUPPORT
FIXING TO A DOOR
- M8 x 55mm x2 SCREWS
- NUT M8 x2
FASTENING THE BREAKING ARM
- PIN AND PIN
