HATO 200 - Page 22

22

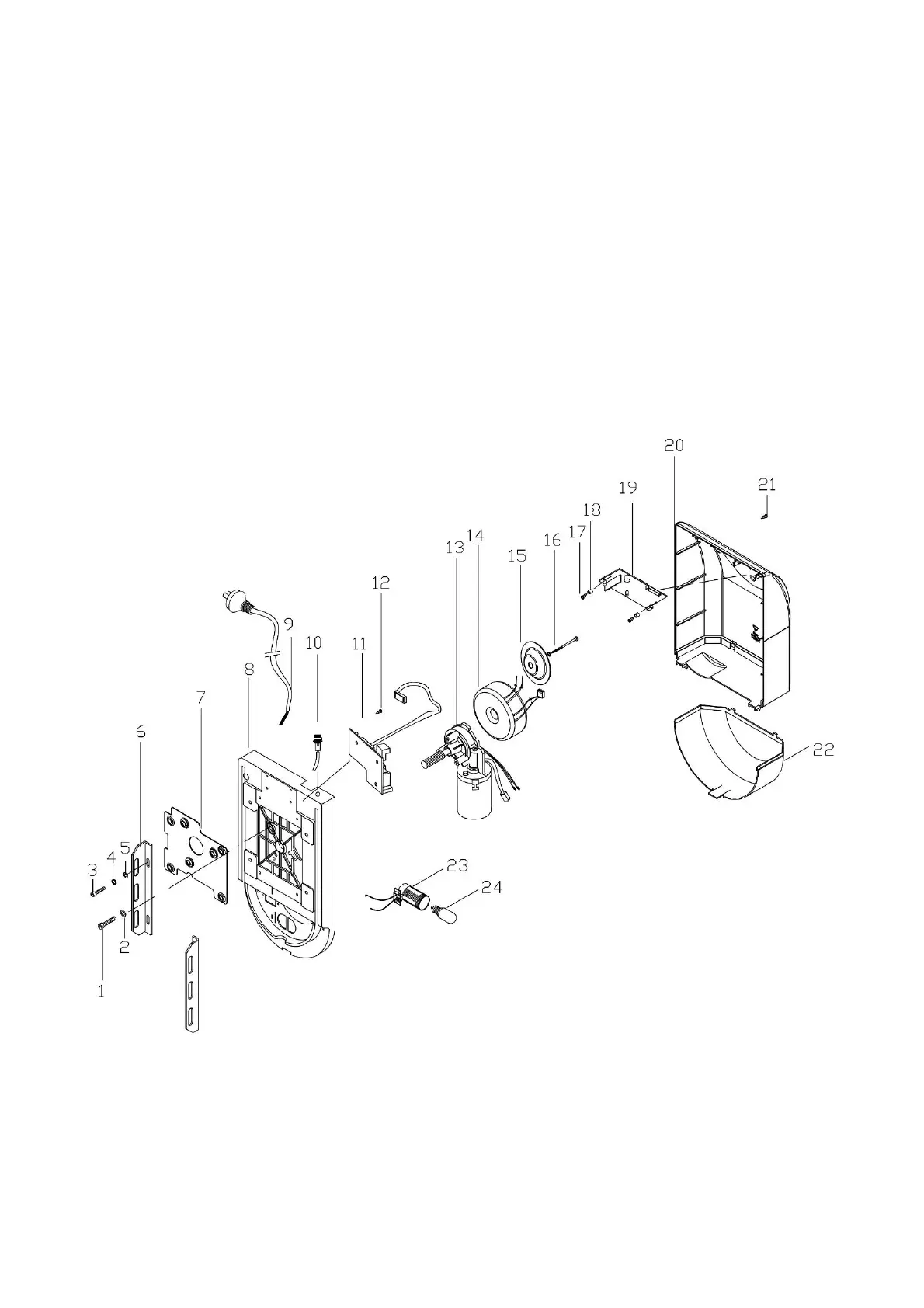

1. Screw (M6x30)
2. Washer
3. Screw (M6x30)
4. Spring washer
5. Washer
6. Angle iron
7. Base plate
8. Housing
9. Power cord
10. Fuse holder
11. Electronics board
12. Screw (2,9x8)
13. Motor
14. Transformer
15. Mounting element for the transformer
16. Screw (M8x50)
17. Screw (2,9x16)
18. Plastic washer
19. Control electronics board
20. Housing cover
21. Screws (4,2x16)
22. Lampshade
23. Bulb holder
24. 15W/230V light bulb
