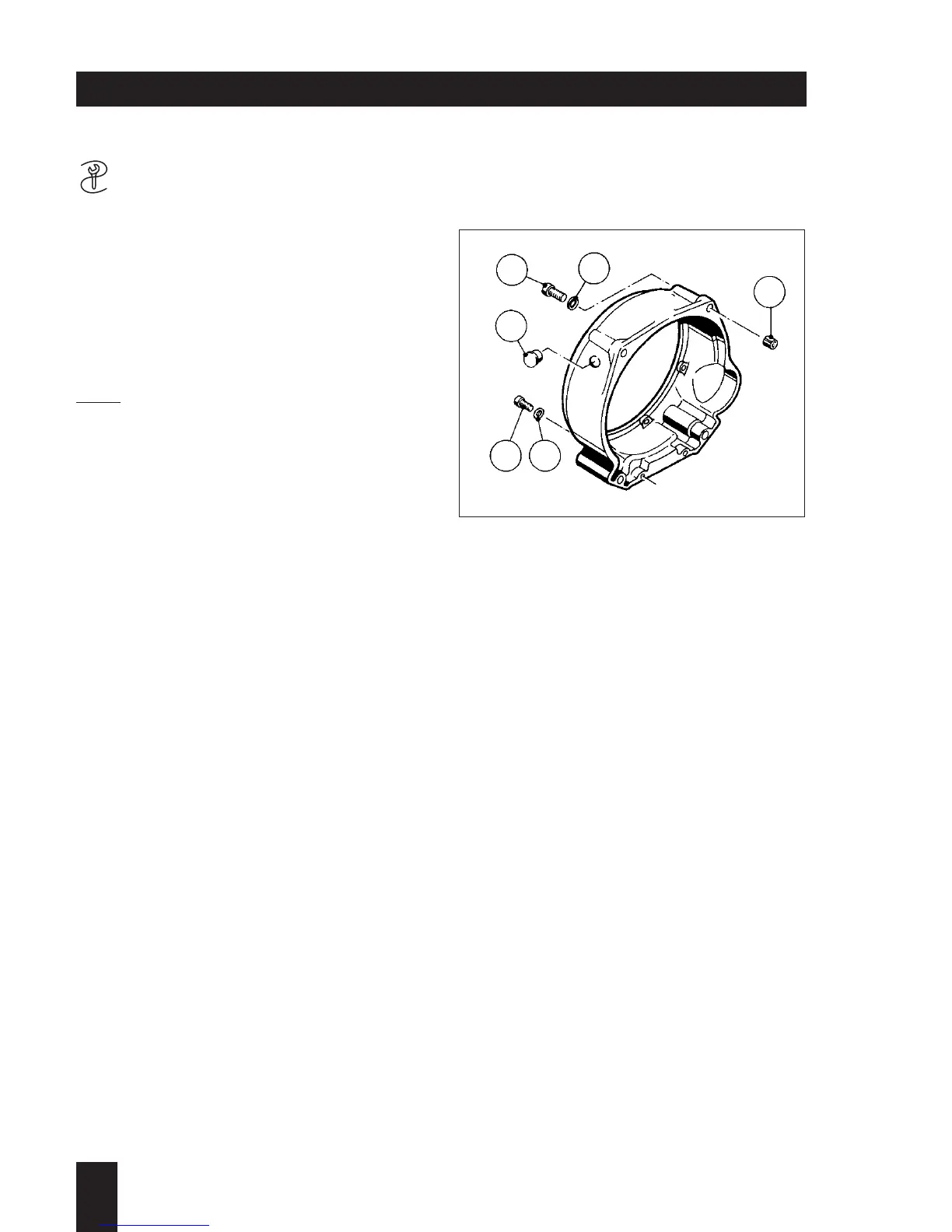

Hatz 2-4L30 - Connecting Housing

–
Assembling:
– Drive locking collets (200/1) into the
crankcase.
– Attach the connecting housing, insert
four M 14 x 1.5 mm hex bolts (200/2)
with spring washer (200/3) and tighten
to the specified torque.
Note:
Apply sealant D to the bolt above
inspection hole (200/4), since this is a
through-hole.
On engines without a connecting
housing, the equivalent screw plug should
also be coated with sealant D before
inserting.
– Insert and tighten the two lower M 10
hex bolts (200/5) with spring washers
(200/6).
