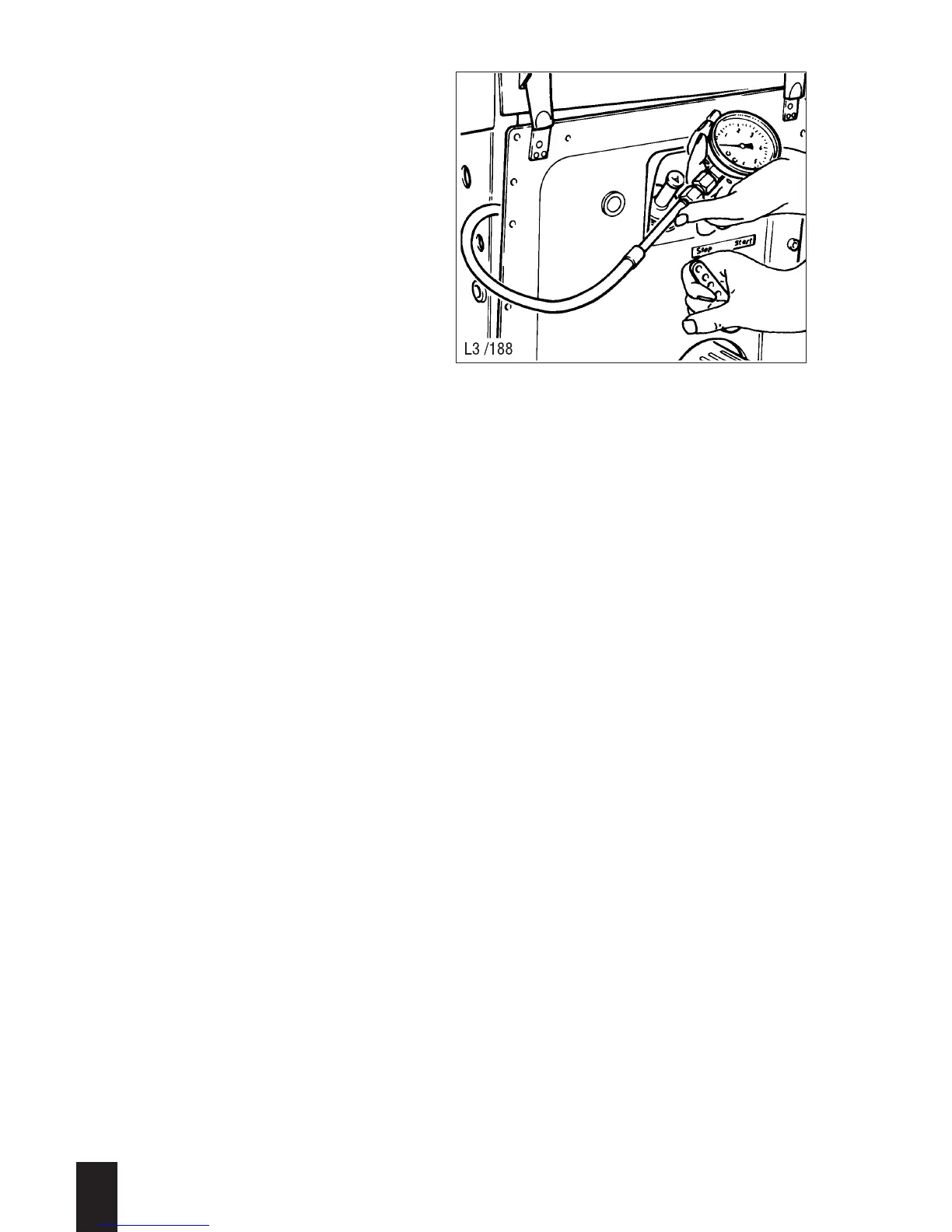

Checking oil pressure:
– Unscrew the oil pressure sensing switch
and connect an oil pressure gauge with
flexible hose - 13 - .
– Install the side panel and hood to
enclosure.
– Start the engine and compare the oil
pressure when it is at regular operating
temperature with the values in Section
4; see Fig. 99.
– Before assembly, coat the thread of the
oil pressure sensing switch with sealant
D.
3
L / M . . 09.96
99
