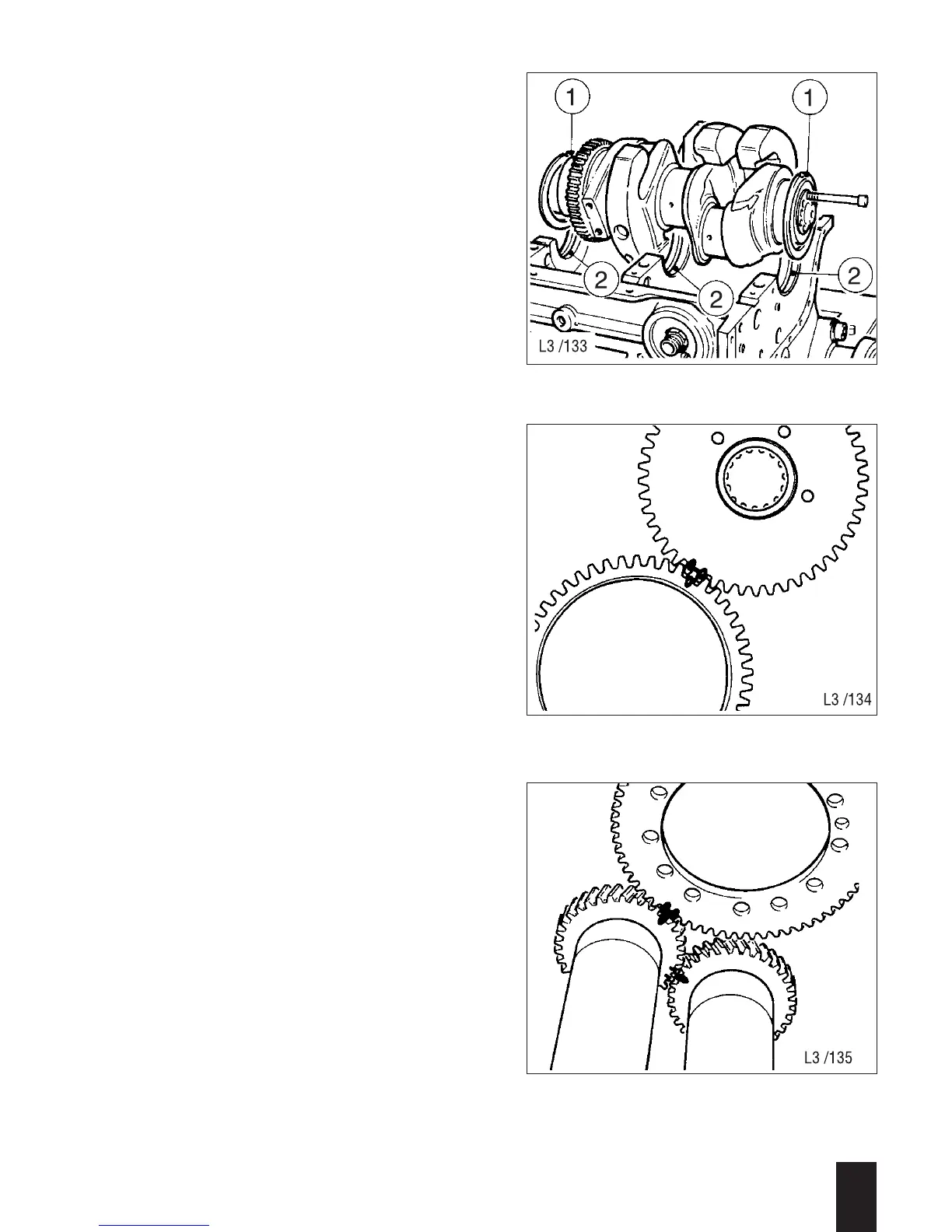

– Place the thrust washers (28/1) on the
crankshaft so that the lubricating groo-
ves face the thrust face on the cranks-
haft. Insert the bearing half-shells (28/2)
into the lower part of the crankcase,
and apply oil to them.
– Place the crankshaft in the lower part of
the crankshaft and make sure that the
gearwheels mesh together as indicated
by the marks.
For 2 / 3 L ... see Fig. 29.
– For 4 L ... see Fig. 30.
3
L / M . . 09.96
28
29
30
