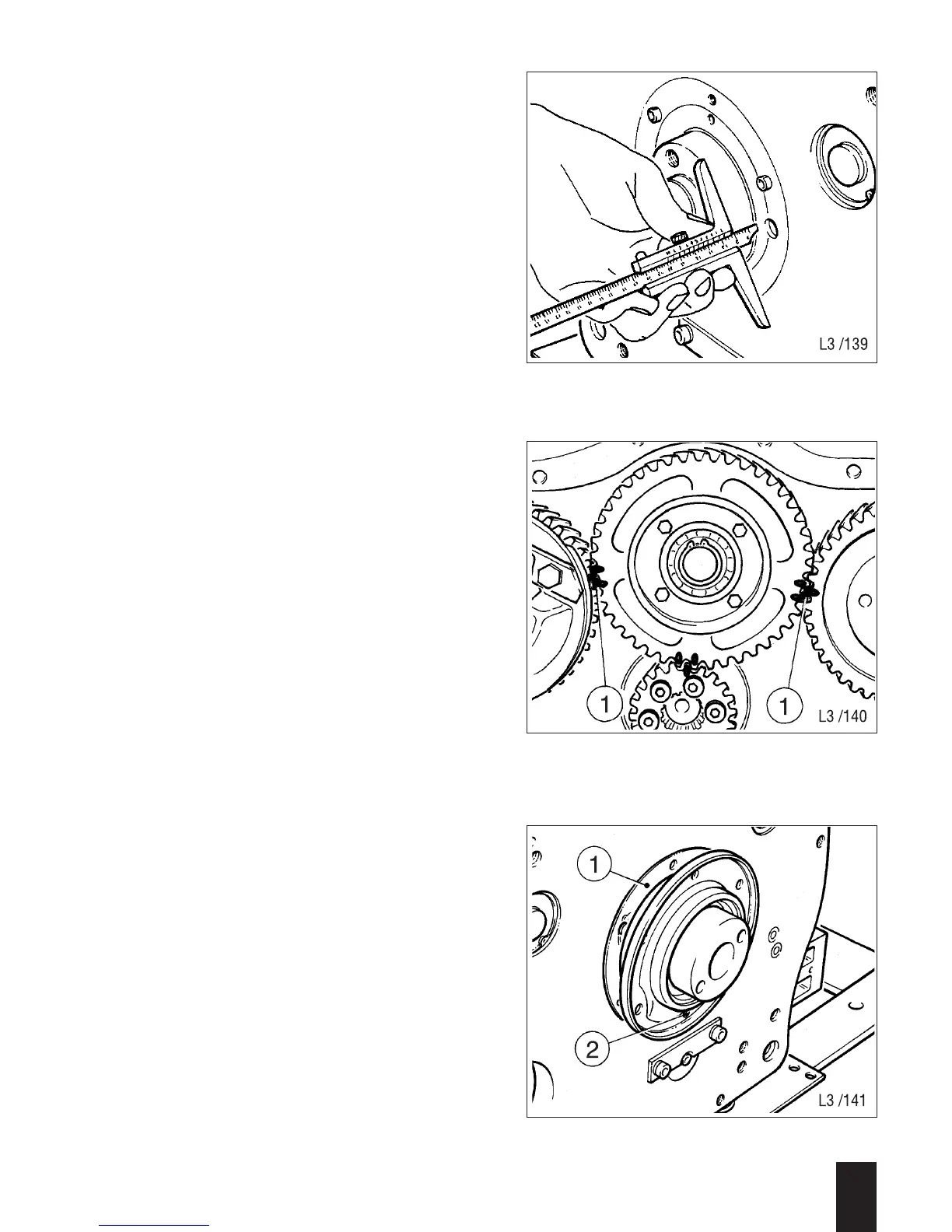

– Check crankshaft endplay with a depth
gauge, Fig. 34, and compare it with the
desired value stated in Section 4.
– Drive the locking collet to secure the
gearwheel (21/1) into the end of the
crankshaft.
– Turn the camshafts until the two marks
(35/1) are aligned and the mark for the
crankshaft gearwheel faces downwards.
– Engage the crankshaft gearwheel, no-
ting the position of the mark, and tigh-
ten it to the specified torque.
– Place the gasket (36/1) on the locking
collets.
– Insert a new shaft sealing ring and
grease its sealing lip. Install the end
cover, coat the machine screws with
sealant D and tighten them to the speci-
fied torque.
3
