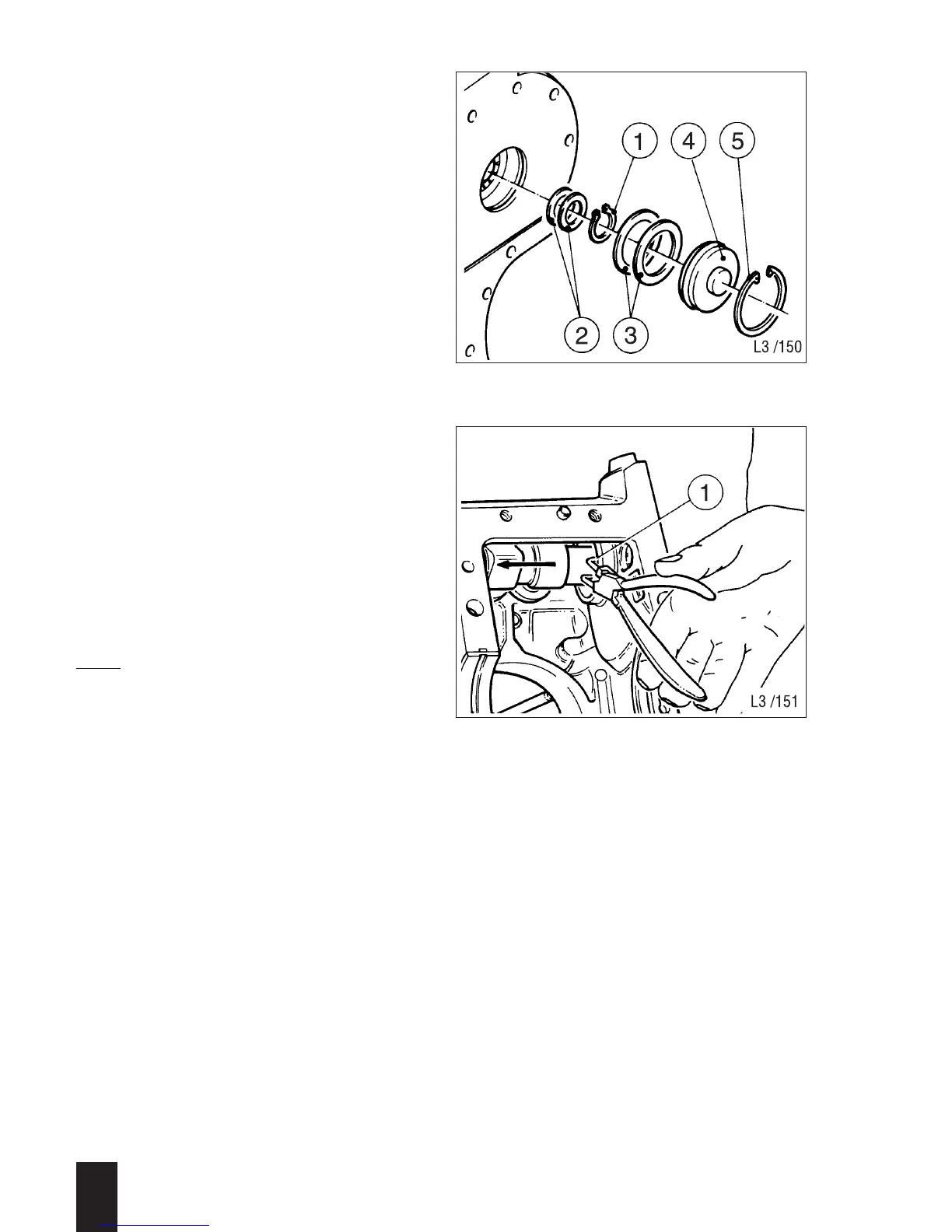

– When installing a new camshaft, make
sure that there is no endplay between
the ball bearing and the circlip (43/1). If
necessary, insert shim washers (43/2).
– Install the camshaft, noting the correct
positions of the marks, and insert circlip
(44/1).
– Drive the camshaft towards the timing
end of the engine until the ball bearing
is in contact with the circlip (44/1).
– Insert shim washers (43/3), push in co-
ver with O-ring seal (43/4) and attach
circlip (43/5).
Note:
– Check camshaft endplay; for values,
see Section 4.If necessary, insert shim
washers (43/3).
– A special camshaft has been introduced
to operate the valves on the following
engines.It can be identified by an „H“
cast into the camshaft.
2 M 31 H from No. 841087 000008
3 M 31 H from No. 851087 000004
4 M 31 H from No. 861087 000004
2 M 40 H from No. 781487 001631
3 M 40 H from No. 791487 000952
4 M 40 H from No. 801487 000873
3
L / M . . 09.96
43
44
