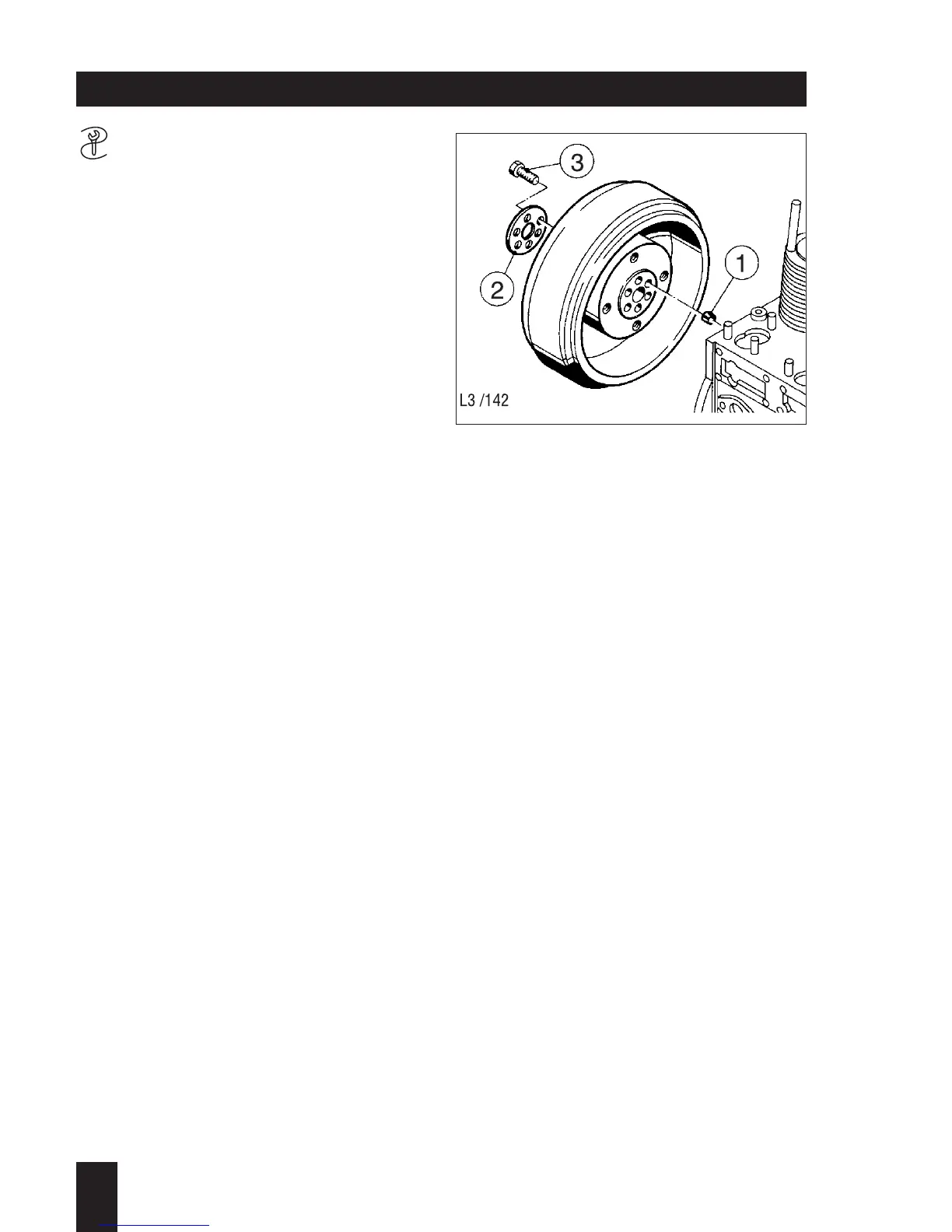

Dismantling:
– Remove bolts (148/3) and disc (148/2).
– Screw in two suitable stud bolts to act
as guides.
– Take off the flywheel.
Assembling:
– Drive locking collet (148/1) into the end
of the crankshaft at the flywheel end to
provide the necessary centering action.
– Attach the flywheel so that the locking
collet enters the centering hole.
– Place the disc (148/2) in position, insert
the bolts (148/3) and tighten them to the
specified torque.
3
L / M . . 09.96
148
M 17.00 Schwungrad
