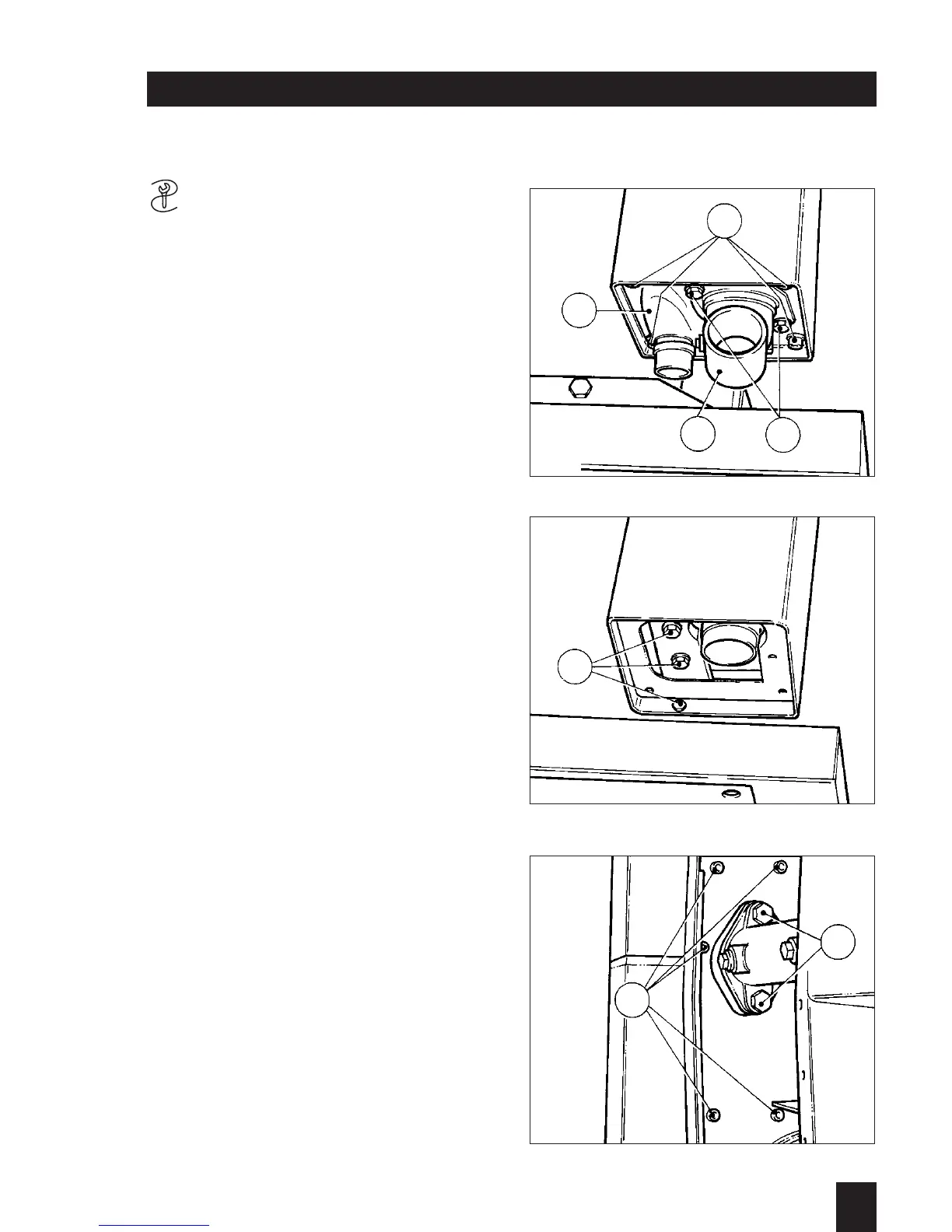

Preparations:
– Remove the hood from the enclosure
and air outlet duct; see M 35.00.
Detaching:
– Take out hex bolts (184/1) and detach
the connecting stub pipe with exhaust
pipe (184/2).
On more recent versions, the exhaust
pipe is secured with a clip.
– Take out the machine screws (184/3)
and remove the connecting cover
(184/4).
– Unscrew and remove the hex bolts
(185/1).
– Remove the machine screws (186/1)
and bolts (186/2).
2
L / M . . 09.96
184
185
186
A 03.00 Exhausts
A 03.12 Removing and installing the silencer (muffler)
enclosure(L 30, L 31, L 40, C/K)
