Attaching the intermediate gearwheel:
Note:
The intermediate gear wheel must be in-
stalled before the camshaft for the injec-
tion pump is installed.

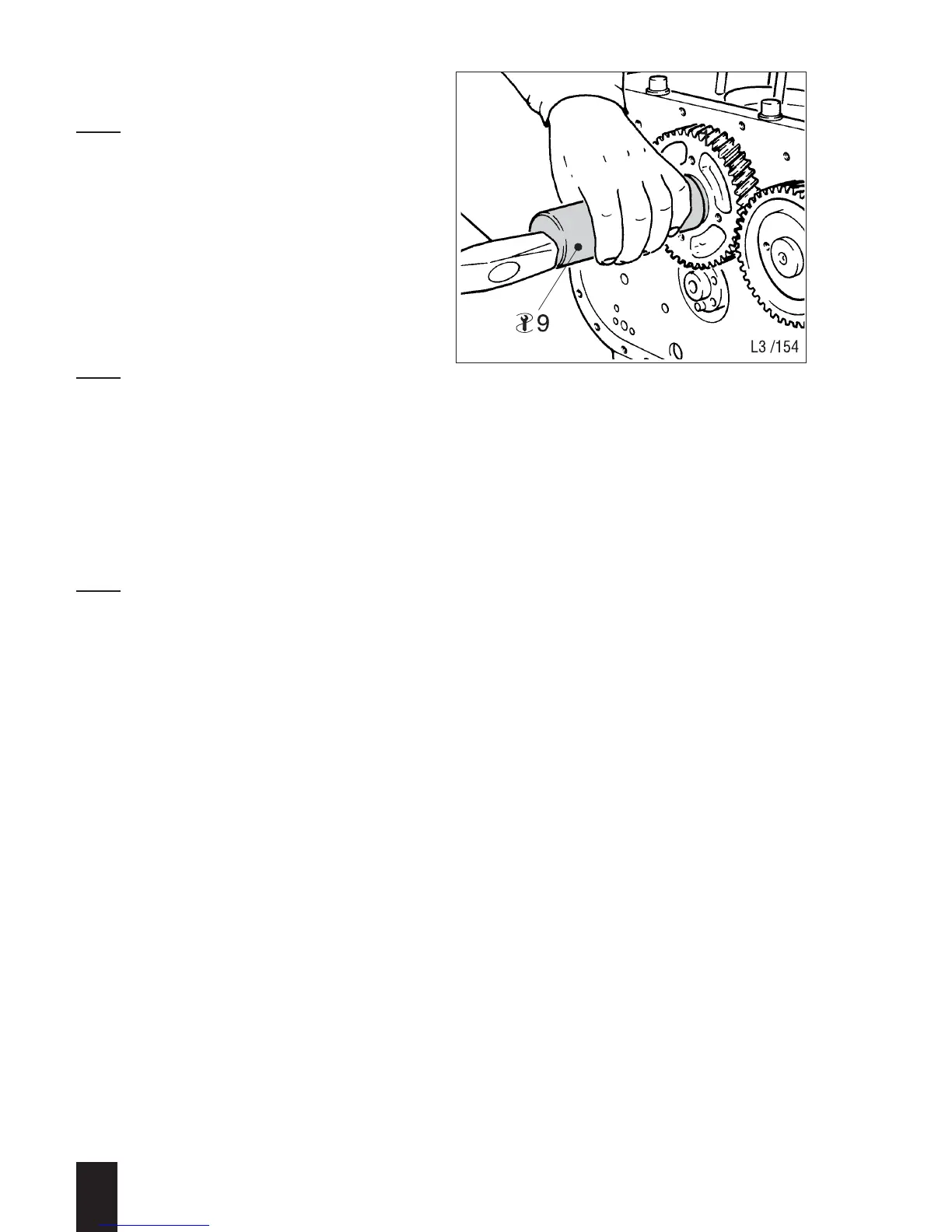

– Press the ball bearing into the interme-
diate gearwheel and pull the gearwheel
on using impact sleeve - 9 - , noting the
positions of the markings; see Fig. 47.
– Place the circlip on the shaft.
Note:
Before pulling on, place the intermediate
gearwheel uniformly on the shaft, to pre-
vent the shaft from being pushed into the
crankcase.
Installing the camshaft:
– See „Installing camshaft for valve gear“
(M 04.10).
Note:
The camshaft for L 40/M 40 is marked
„L 40“ next to the delivery pump drive
cam.
