Service and flywheel side
Governor and exhaust side
1
L / M . . 10.98
Starter and flywheel side
Engines: 2 - 4 L . . S / Z
1 Lub.-oil filling and dipstick
2 Speed control lever
3 Exhaust silencer
4 Oil drain plug
5 Lub.-oil filter
6 Engine cover
7 Side panel
8 Cooling fan with built-in alternator
9 Cooling fan drive belt
10 Hydraulic belt tensioner
11 Stop device
12 Governor housing
13 Cooling air duct for lub.-oil cooler
21 Cyclone-type pre-cleaner
22 Eye hook for transport, disappearing
max. load 500 kg
23 Access to fuel feed pump
24 Starter motor
25 Fuel feed line
26 Fuel return line
27 Belt pulley with 1/2“ internal square
for cranking engine

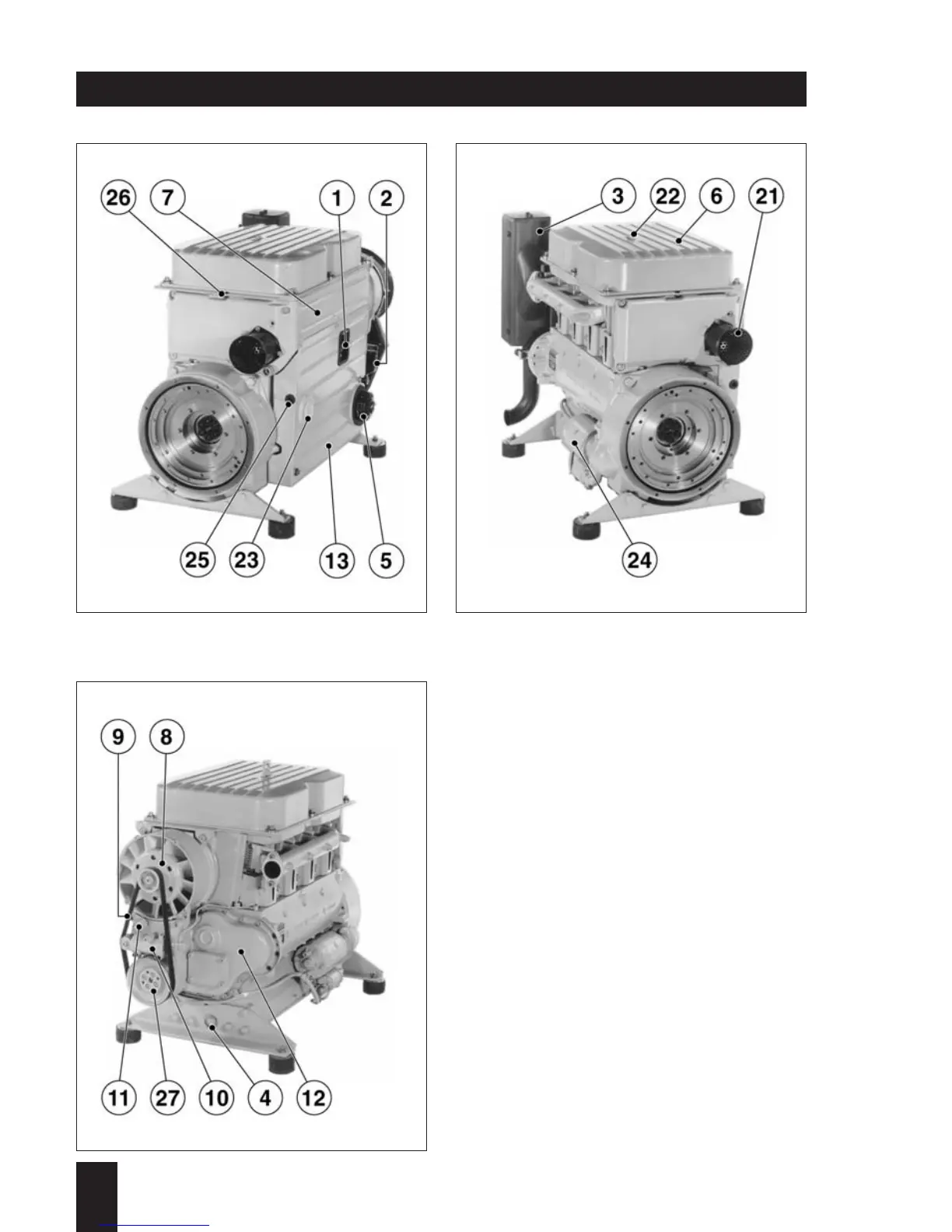

Engine illustrations
