Engine design 2-4L41C, 2-4M41(Z), 4L42C, 4M42
30
HATZ
Manual
Engine 2-4M41, 2-4M41Z
Standard model

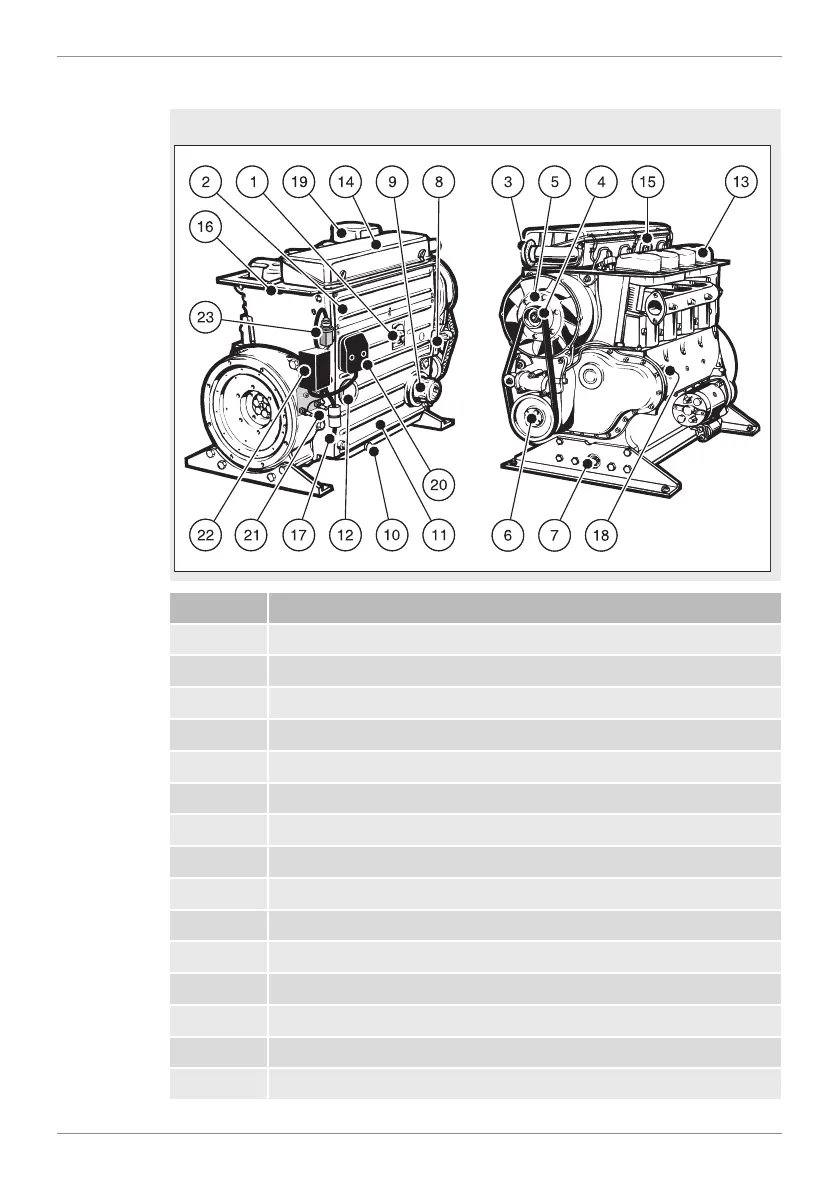

Pos. Designation
1 Oil filling opening and dipstick
2 Side trim panel
3 Intake opening for combustion air
4 Cooling fan belt
5 Cooling fan with installed three phase alternator
6 1/2-inch square socket for turning the engine
7 Oil drain screw
8 Speed control lever
9 Oil filter
10 Oil drain screw (on oil sump)
11 Cooling air guide for oil cooler
12 Access cap for fuel feed pump
13 Cylinder head cover
14 Air filter housing cover
15 Lifting eye, max. load 5000 N
