2L41C, 2M41, 2M41Z Maintenance
HATZ
63Operator’s Manual
Step Activity
2 Unscrew the baffle plate (1)

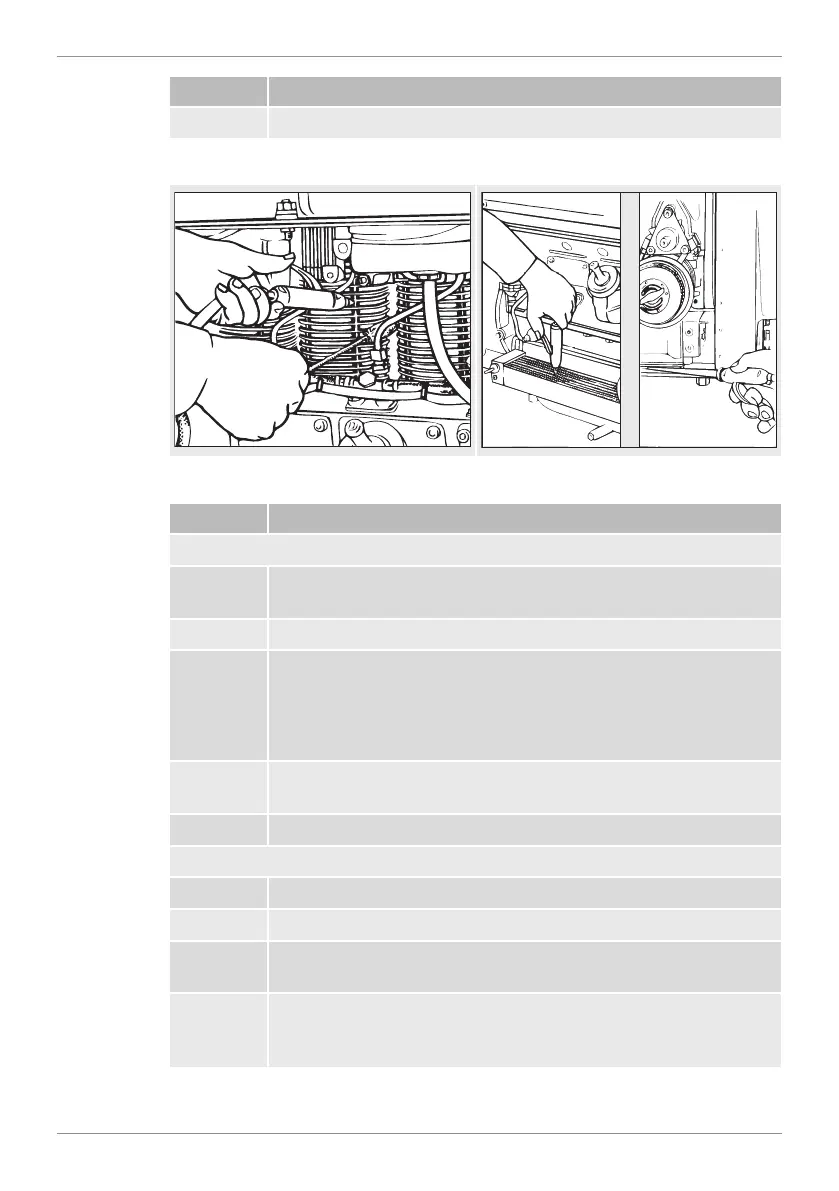

Overview — Cleaning
Procedure — Cleaning
Step Activity
Cleaning in case of dry dirt contamination
1 Clean the cooling fan, cylinder head and cylinder with a suit-
able brush.
2 Blow out the entire cooling air area with compressed air.
3 Blow out the oil cooler with compressed air only.
NOTE:
▪ Do not place the compressed air gun against the sensitive
radiator fins.
4 On encapsulated engines, also clean the area between the
floor plate and crankcase.
5 Mount the capsule and air guide parts again.
Cleaning of wet or oily dirt contamination
1 Disconnect the negative battery terminal.
2 Manually clean the alternator and regulator.
3 Cover the alternator with the installed regulator and do not
spray directly.
4 Spray the entire area with a suitable cleaning solution accord-
ing to manufacturer instructions and then clean off with a jet of
water.
