Hatz 2M41 Operator's Manual

Maintenance 2L41C, 2M41, 2M41Z
72
HATZ
Operator’s Manual
Pos. Designation
2 Reset button
Procedure — Mounting the air filter cartridge
Step Activity
1 When assembling, mount the parts individually one after the
other to make sure they are correctly seated and to ensure leak
tightness.
2 After the filter is mounted, unlock the visible red field (1) in the
maintenance display by pressing the reset button (2).

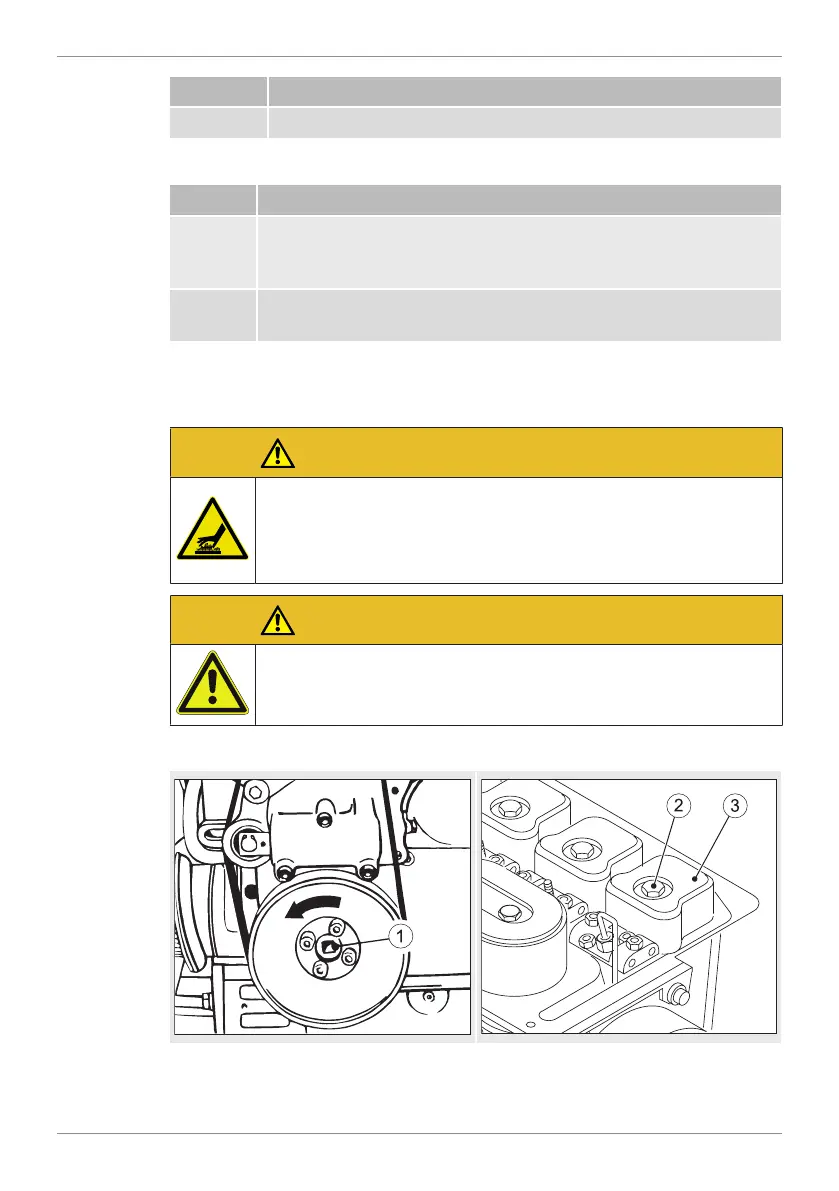

8.2.12 Check and set the tappet clearance
Safety notes
CAUTION
Danger of burns.
There is a danger of burns when working on a hot engine. Only
perform the settings while the engine is cold (10-30°C).
▪ Let the engine cool.
CAUTION
Damage from inadequate engine cooling.
Only operate the engine when all covers are installed.
Overview — Preparatory activities

Hatz 2M41 Specifications

General

Number of Cylinders	2
Cooling System	Air-cooled
Fuel System	Direct injection
Compression Ratio	17.5:1
Engine Type	Diesel
Starting System	Electric starter
