Maintenance 2L41C, 2M41, 2M41Z
74
HATZ
Operator’s Manual
Step Activity
3 Continue turning the crankshaft by 180° in the sense of rotation
and check the valves of the first cylinder.

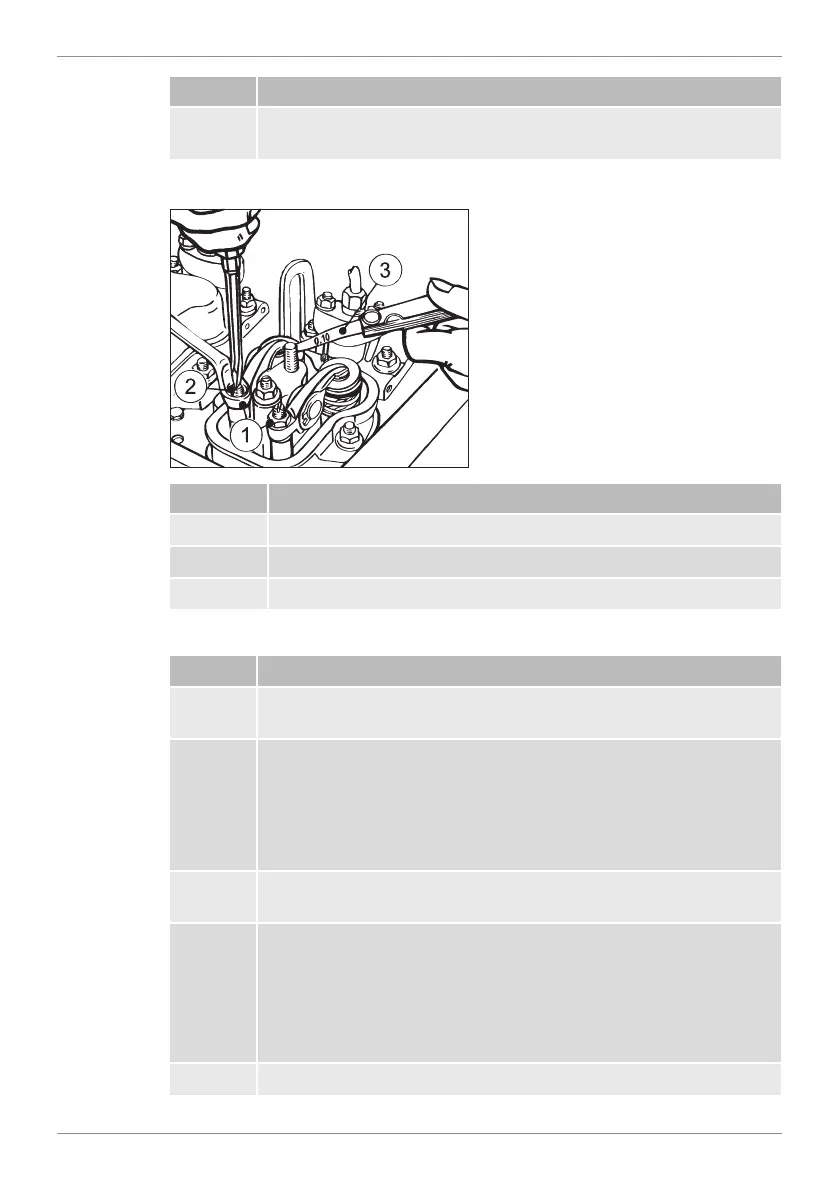

Overview — Adjusting the tappet clearance
Pos. Designation
1 Hex nut
2 Adjusting screw
3 Feeler gauge
Procedure — Adjusting the tappet clearance
Step Activity
1 Check the tappet clearance with the feeler gauge (3). For the
setting, see the chapter 4 Technical data, page 21
2 If the tappet clearance needs to be corrected:
▪ Release the hex nut (1).
▪ Turn the adjustment screw (2) so the feeler gauge (3) can be
pulled through with a barely perceptible resistance after the
hex nut (1) is tightened again.
3 Repeat the above procedure for the entire valve area, taking
special care to use the described adjustment method.
4 Mount the cylinder head cover again:
▪ Always renew the gaskets.
▪ Use the fixing nuts for the cylinder head cover no more than
twice before renewing them.
▪ Tightening torque: 10 Nm.
5 Mount all covers.
