2L41C, 2M41, 2M41Z Maintenance
HATZ
83Operator’s Manual

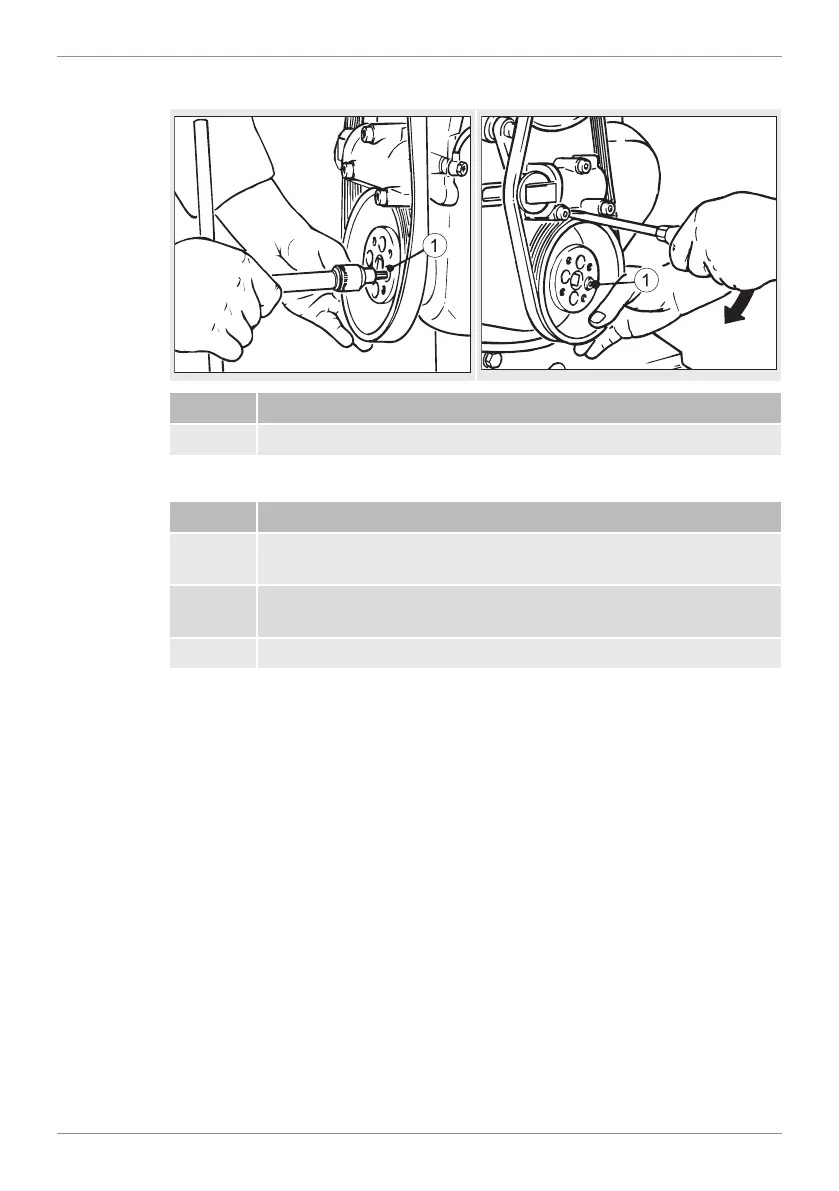

Overview — Centering the pulley
Pos. Designation
1 Cylinder screw
Procedure — Centering the pulley
Step Activity
1 Lightly secure the pulley with a cylinder screw (1) without plac-
ing the pulley fully on the centering.
2 Insert a large screwdriver between the hydraulic belt tensioner
and pulley and push down until it slides fully into the centering.
3 Insert the remaining cylinder screws (1) and tighten.
